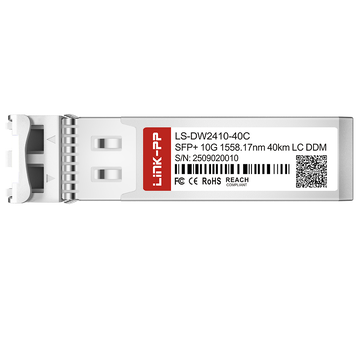

DWDM-SFP10G-58.17 integrates a 100GHz ITU C-Band cooled EML transmitter and a PIN receiver to deliver 10G SFP+ DWDM connectivity across single-mode fiber (SMF) distances up to 40km. Operating at 1558.17nm (Channel C24), the module incorporates comprehensive real-time digital diagnostic monitoring to ensure precise link telemetry and signal integrity.
Cisco Part Number
DWDM-SFP10G-58.17
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1558.17nm
Max Cable Distance
40km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
PIN
TX Power
-1 to +2dBm
RX Power
-16 to -1dBm
Receiver Sensitivity
-15.5dBm
DDM/DOM
Supported
Operating Temperature Range
0 to 70°C
Protocols
SFP+ MSA, CPRI, eCPRI, SFF-8472, SFF-8431
Key Features of Cisco DWDM-SFP10G-58.17 Compatible LINK-PP 10G SFP+
Cisco DWDM-SFP10G-58.17 Compatible LINK-PP module is a 10G SFP+ DWDM transceiver module operating at 1558.17nm across 40km of single-mode fiber. It combines standard duplex LC connectivity, 100GHz ITU channel spacing, and integrated digital diagnostic monitoring to deliver efficient fiber expansion for mid-haul networks.
This DWDM SFP+ transceiver features a hot-pluggable SFP+ footprint that allows easy installation and replacement without powering down host equipment. It fully complies with the standard SFP+ MSA specification to ensure broad mechanical and electrical compatibility across networking hardware.
DWDM-SFP10G-58.17: 10 Gbps Connectivity for Point-to-Point Mid-Haul Links
The module delivers a dedicated 10Gbps data rate to maintain smooth, continuous throughput for bandwidth-intensive workloads. It serves as a dependable choice for mid-haul links connecting campus distribution switches, enterprise aggregation sites, and regional hubs.
DWDM-SFP10G-58.17 Module with DWDM Technology for Fiber Efficiency
Dense wavelength division multiplexing enables multiple optical signals to transmit simultaneously over an existing single-mode fiber strand. This capability maximizes overall network bandwidth without requiring the costly installation of new fiber cabling.
DWDM-SFP10G-58.17 Module with 1558.17nm Wavelength
Channel 24 operates precisely at the nominal wavelength of 1558.17nm on the standardized 100GHz ITU grid. This precise spectral alignment minimizes inter-channel crosstalk when integrated into dense multi-channel optical multiplexers.
A cooled EML transmitter paired with a sensitive PIN receiver enables sustained signal reach across distances up to 40km. It provides ample optical power budget to overcome standard link attenuation on single-mode fiber runs.
DWDM-SFP10G-58.17 Module with Duplex LC Interface
The integrated duplex LC optical receptacle enables seamless plug-and-play mating with standard SMF jumpers. Its robust latching architecture provides reliable mechanical retention and maintains organized cable distribution in enterprise patch panels.
DWDM-SFP10G-58.17 Module with DDM for Real-Time Monitoring
Internal diagnostics are fully compatible with SFF-8472 digital diagnostic functions for tracking operational health. Network operators can view real-time parameters such as optical power, temperature, supply voltage, and laser bias current to simplify link maintenance.
Cisco DWDM-SFP10G-58.17 Compatible LINK-PP DWDM SFP+ module complies with strict international standards, holding certifications including ISO 9001, CE, RoHS, and FCC; this ensures dependable manufacturing quality and environmental safety.
Each 10G DWDM SFP+ transceiver undergoes rigorous factory testing - including optical eye-diagram analysis, spectral verification, and bit error rate assessment - to guarantee zero-defect performance before shipment.
DWDM-SFP10G-58.17 Quality Certifications
The DWDM module adheres to major safety and electromagnetic regulations, which ensures low interference and consistent signal integrity in commercial environments.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
DWDM-SFP10G-58.17 Certified for Reliable Host-Device Compatibility
Comprehensive host interoperability tests confirm plug-and-play operation across leading switch platforms, preventing port alarms and recognition errors.
Every 10G SFP+ DWDM transceiver module undergoes comprehensive physical and optical validation before shipment, ensuring rock-solid field reliability; discover our complete evaluation workflow at the LINK-PP Test Support Center.
Optical Spectrum Test
Measure exact emission wavelength and check channel isolation levels.
Eye Pattern Test
Analyze high-speed optical waveforms to prevent excessive jitter buildup.
Bit Error Rate Test
Detect packet drops under maximum throughput on long-distance runs.
Temperature Test
Inspect component stability under changing ambient operating heat conditions.
Product Shipping for Cisco DWDM-SFP10G-58.17 Compatible LINK-PP 10G SFP+
LINK-PP ensures every 10G DWDM optical transceiver is packed safely and shipped quickly; this protects the transceiver modules from damage and guarantees on-time delivery.
Anti-Static Protective Packaging
Block static electricity to keep internal electronic chips safe.
Shock-Resistant Transport Protection
Absorb sudden bumps and drops during daily transport routes.
Fast Order Processing and Dispatch
Pack and dispatch confirmed orders within minimal handling time.
Global Logistics and International Delivery
Deliver orders globally through dependable carriers with full online tracking.
Just push the DWDM-SFP10G-58.17 DWDM SFP+ module into a compatible port and plug in your standard fiber patch cords. It delivers reliable 10Gbps speed across point-to-point mid-haul links, helping you easily send data between two distant networking hubs without adding new fiber cables.
DWDM-SFP10G-58.17 Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal DWDM-SFP10G-58.17 module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
Both types of fiber patch cords are compatible, though OS2 is often favored for lower attenuation characteristics. For campus routing or longer indoor runs, OS2 cabling generally provides more headroom for the link budget. By
admin
A:
The 100GHz channel spacing provides sufficient spectral clearance to prevent interference between neighboring channels under normal operation. A properly matched DWDM demultiplexer will reliably separate each individual wavelength. By
admin
A:
It usually handles links approaching 40km well, provided the total optical span loss remains within the link budget. Verifying your path attenuation before deployment helps ensure steady link margin over extended distances. By
admin
Perfect for our telecom cell site backhaul aggregation shelf. These modules run continuously at around 40°C inside our 0 to 70°C indoor equipment room. The SFP+ MSA build fits snugly in our switches, and optical dispersion stays minimal over long SMF runs. Flawless hardware for heavy-duty traffic =D
