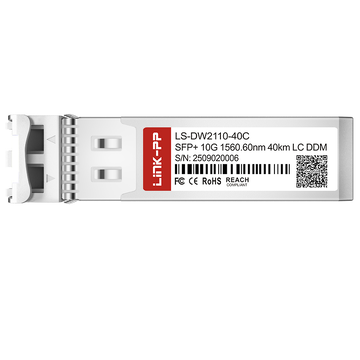

SFP-10G-DW-60.61 functions as a 10G DWDM SFP+ transceiver utilizing a 100GHz ITU channel 21 grid at 1560.60nm. Built around a cooled EML laser and high-sensitivity PIN receiver, the module achieves up to 40km transmission over single-mode fiber with integrated digital optical monitoring for real-time bias current, supply voltage, temperature, and optical power diagnostics.
Arista Part Number
SFP-10G-DW-60.61
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1560.60nm
Max Cable Distance
40km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
PIN
TX Power
-1 to +2dBm
RX Power
-16 to -1dBm
Receiver Sensitivity
-15.5dBm
DDM/DOM
Supported
Operating Temperature Range
0 to 70°C
Protocols
SFP+ MSA, CPRI, eCPRI, SFF-8472, SFF-8431
Key Features of Arista SFP-10G-DW-60.61 Compatible LINK-PP 10G SFP+
Arista SFP-10G-DW-60.61 Compatible LINK-PP module is a DWDM SFP module operating at 1560.60nm over standard single-mode fiber. It combines a 40km reach, duplex LC interface, and digital optical monitoring to deliver reliable high-density connectivity across modern metro networks.
The transceiver features a hot-pluggable SFP+ footprint that allows installation without interrupting existing system operations. It fully complies with the SFP+ MSA standard to ensure seamless physical and electrical fit across standard networking ports.
SFP-10G-DW-60.61: 10 Gbps Connectivity for Metro Core & Edge Rings
This DWDM SFP+ delivers dedicated 10Gbps data rates to satisfy growing bandwidth demands across aggregation layers. Its robust throughput makes it an ideal fit for traffic backhauling in metro core infrastructures and regional edge ring topologies.
SFP-10G-DW-60.61 Module with DWDM Technology for Fiber Efficiency
Dense Wavelength Division Multiplexing enables multiple optical channels to run concurrently over a single pair of physical fibers. By utilizing 100GHz grid spacing, the device expands overall network transmission capacity without requiring costly new cable installations.
SFP-10G-DW-60.61 Module with 1560.60nm Wavelength
Channel 21 optical transmission is fixed at a nominal center wavelength of 1560.60nm within the ITU-T C-band grid. A cooled EML transmitter maintains tight spectral stability across this specific channel to prevent adjacent optical interference.
Long-reach optical power management enables reliable signal propagation up to 40km over single-mode fiber. The built-in optical receiver maintains clean link reception across these intermediate transport distances without external amplification.
SFP-10G-DW-60.61 Module with Duplex LC Interface
The duplex LC optical connector provides secure mechanical mating with common patch cords and multiplexers. This compact receptacle design supports high-density port layouts in distribution frames and line cards.
SFP-10G-DW-60.61 Module with DOM for Real-Time Monitoring
Integrated digital optical monitoring (DOM) continuously tracks critical internal parameters such as optical power, bias current, operating voltage, and temperature. Fully compatible with the SFF-8472 diagnostic standard, it helps network administrators spot potential link issues before actual outages occur.
Arista SFP-10G-DW-60.61 Compatible LINK-PP 10G SFP+ DWDM transceiver meets rigorous global manufacturing and environmental standards, holding full ISO 9001, CE, RoHS, and FCC certifications; this comprehensive compliance guarantees safe, reliable operation in commercial network deployments.
Every SFP+ DWDM module is carefully checked for optical performance before it leaves the factory; this ensures you receive a product that is ready to use without defects.
SFP-10G-DW-60.61 Quality Certifications
The module complies with worldwide quality and safety standards; these approvals make sure the product is environmentally friendly and built to last.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
SFP-10G-DW-60.61 Certified for Reliable Host-Device Compatibility
Extensive switch-level validation confirms seamless interoperability with major vendor line cards and ports; as a result, the transceiver easily connects without triggering port errors or link drops.
Each DWDM SFP+ module undergoes strict physical layer tests to verify stable optical transmission; learn more about our testing processes at the LINK-PP Test Support Center.
Optical Spectrum Test
Verify central wavelength precision to ensure channel stability.
Eye Pattern Test
Analyze optical signal quality to prevent waveform distortion.
Bit Error Rate Test
Measure data transmission accuracy to eliminate packet loss.
Temperature Test
Check thermal operational tolerance to ensure reliable function.
Product Shipping for Arista SFP-10G-DW-60.61 Compatible LINK-PP 10G SFP+
We use secure packaging and reliable transport methods to protect every order during delivery. Our efficient shipping process ensures your DWDM transceivers arrive safely and on time.
Anti-Static Protective Packaging
Prevent electrostatic discharge damage to protect sensitive internal optical components.
Shock-Resistant Transport Protection
Absorb transit impacts effectively to preserve delicate internal transceiver hardware.
Fast Order Processing and Dispatch
Prepare and verify shipments quickly to accelerate standard warehouse dispatch.
Global Logistics and International Delivery
Partner with reliable worldwide carriers to deliver packages safely abroad.
Simply align the SFP-10G-DW-60.61 10G DWDM SFP+ transceiver with your switch cage, slide it until locked, and insert duplex LC patch cords. This hot-pluggable module enables straightforward deployments without system reboots, providing stable 40km optical aggregation for traffic-heavy metro core architectures and high-density regional edge ring topologies.
SFP-10G-DW-60.61 Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal SFP-10G-DW-60.61 module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
Using standard single-mode duplex patch cables with polished UPC connectors generally yields optimal performance and low back-reflection. Multimode fiber cords should be avoided because modal dispersion will disrupt long-distance 10G DWDM transmission. By
admin
A:
Inspecting and dry-cleaning the duplex LC optical receptacle with a standard 1.25mm fiber cleaner helps eliminate airborne dust and contact contaminants. Maintaining clean ferrule end-faces often prevents premature optical insertion loss and back-reflection issues. By
admin
A:
Yes. This transceiver operates strictly at the ITU 100GHz grid wavelength of 1560.60nm (Channel 21), making it directly compatible with standard 100GHz C21 Mux/Demux ports on duplex single-mode fiber links. By
admin
A:
The module complies with standard SFP+ MSA hot-plugging electrical specifications, allowing safe insertion and removal without rebooting host hardware. Monitoring CLI system logs during insertion helps confirm that the transceiver is recognized properly by the operating system. By
admin
