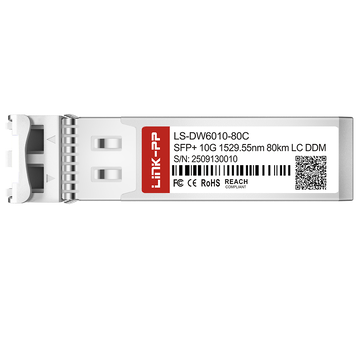

SFP-10G-DZ-29.55 is a 10G SFP+ optical transceiver designed for dense wavelength division multiplexing networks, operating at a nominal wavelength of 1529.55nm (C60) on the 100GHz ITU-T grid. It integrates a cooled EML laser and a high-sensitivity APD receiver to deliver reliable data links up to 80km over single-mode fiber (SMF), complete with real-time digital diagnostic monitoring (DDM) capabilities.

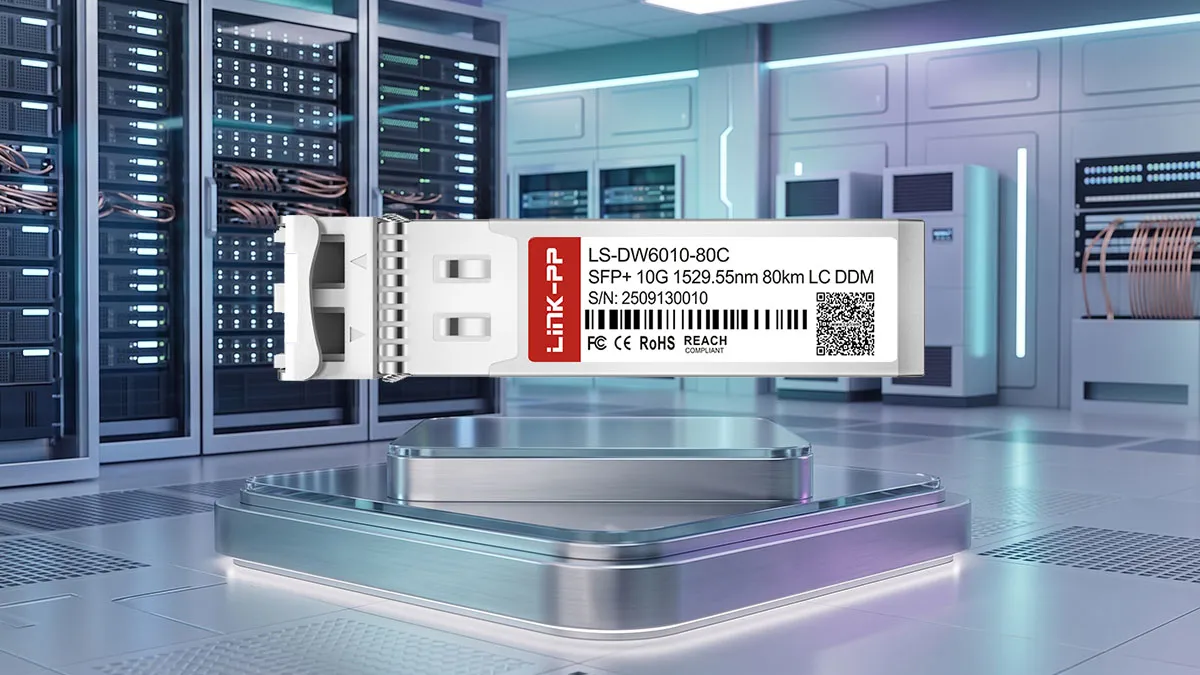

Arista Part Number
SFP-10G-DZ-29.55
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1529.55nm
Max Cable Distance
80km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
TX Power
-1 to +5dBm
RX Power
-23 to -6dBm
Receiver Sensitivity
-23dBm
DDM/DOM
Supported
Operating Temperature Range
0 to 70°C
Protocols
10GBASE-ZR/ZW, SDH STM64, SFF-8431, SFF-8472
Key Features of Arista SFP-10G-DZ-29.55 Compatible LINK-PP 10G SFP+
Arista SFP-10G-DZ-29.55 Compatible LINK-PP module is a DWDM module capable of reaching up to 80km over single-mode fiber at a 1528.77nm wavelength. By combining dense wavelength multiplexing with built-in digital optical monitoring, it boosts overall fiber utilization and ensures straightforward operational management.
The transceiver features a hot-pluggable SFP+ footprint that allows for quick installation and maintenance without powering down host systems. It strictly complies with the SFP+ MSA standard to ensure mechanical and electrical compatibility across standard networking hardware.

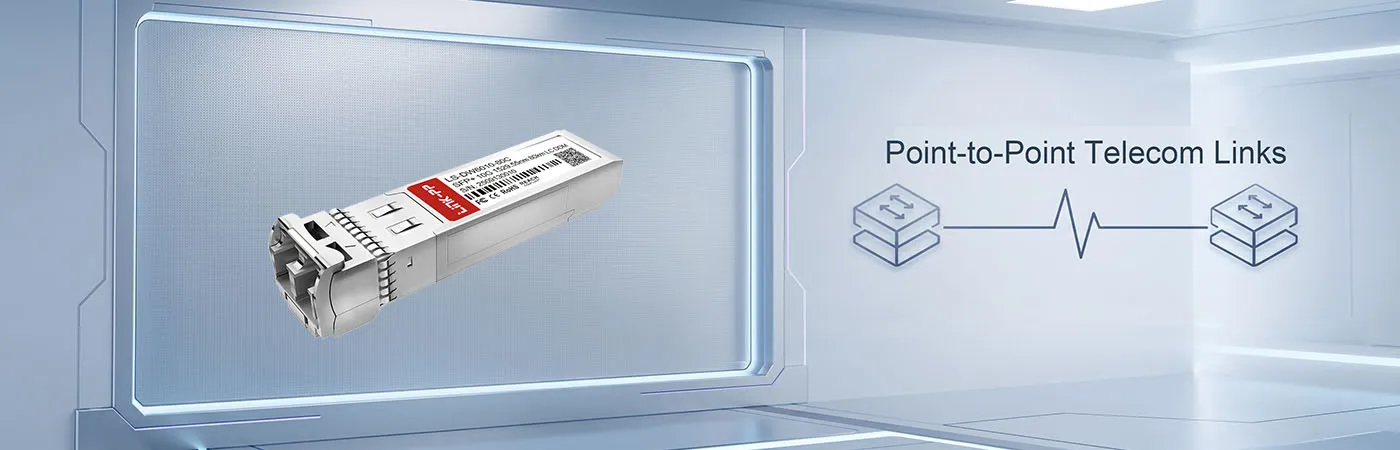

SFP-10G-DZ-29.55: 10 Gbps Connectivity for Point-to-Point Telecom Links
Operating at a dedicated line rate of 10Gbps, this module delivers robust bandwidth for demanding telecom backhaul and data aggregation tasks. It provides a reliable communication pipe for point-to-point topologies between service provider central offices and enterprise aggregation hubs.

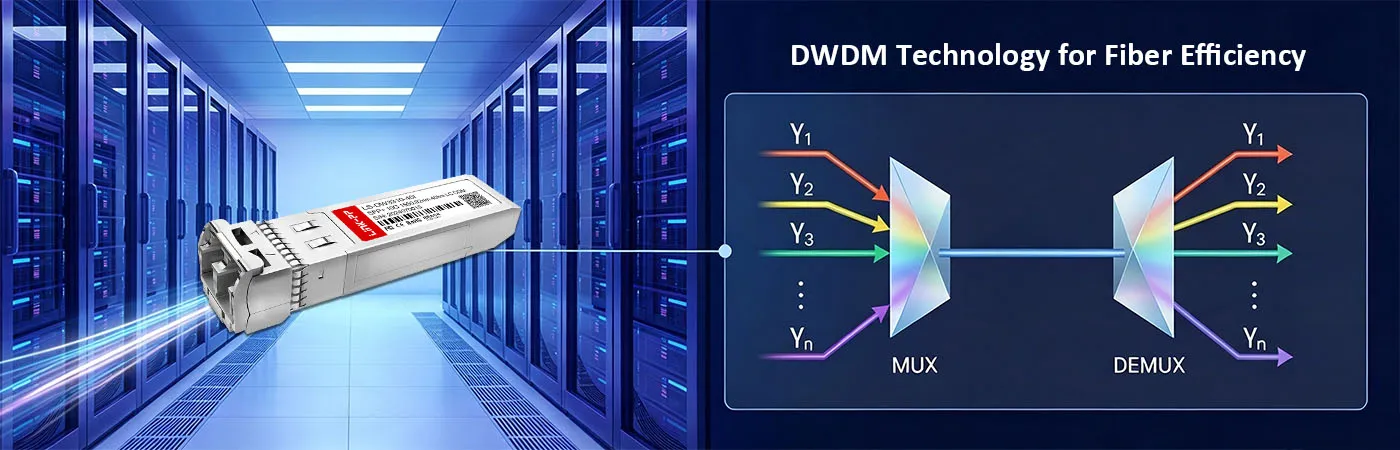

SFP-10G-DZ-29.55 Module with DWDM Technology for Fiber Efficiency
Dense Wavelength Division Multiplexing (DWDM) enables multiple data channels to run over the same physical strand to maximize existing fiber capacity. This technology helps operators expand network bandwidth without the cost of laying new optical infrastructure.

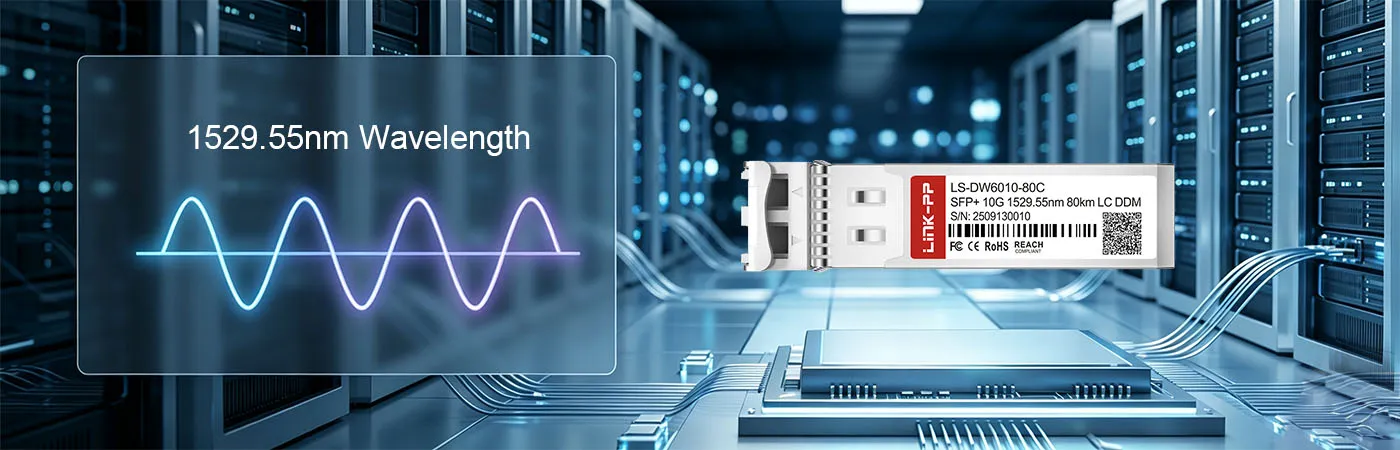

SFP-10G-DZ-29.55 Module with 1529.55nm Wavelength
A dedicated 1529.55nm nominal wavelength (Channel 60 on the 100GHz ITU grid) ensures precise spectral alignment and minimal channel interference. The cooled EML laser maintains frequency stability across varying commercial operating conditions.
An integrated high-sensitivity APD receiver enables sustained optical reach up to 80km over standard single-mode fiber (SMF). This extended reach eliminates the need for intermediate optical amplifiers in long-span campus and regional links.

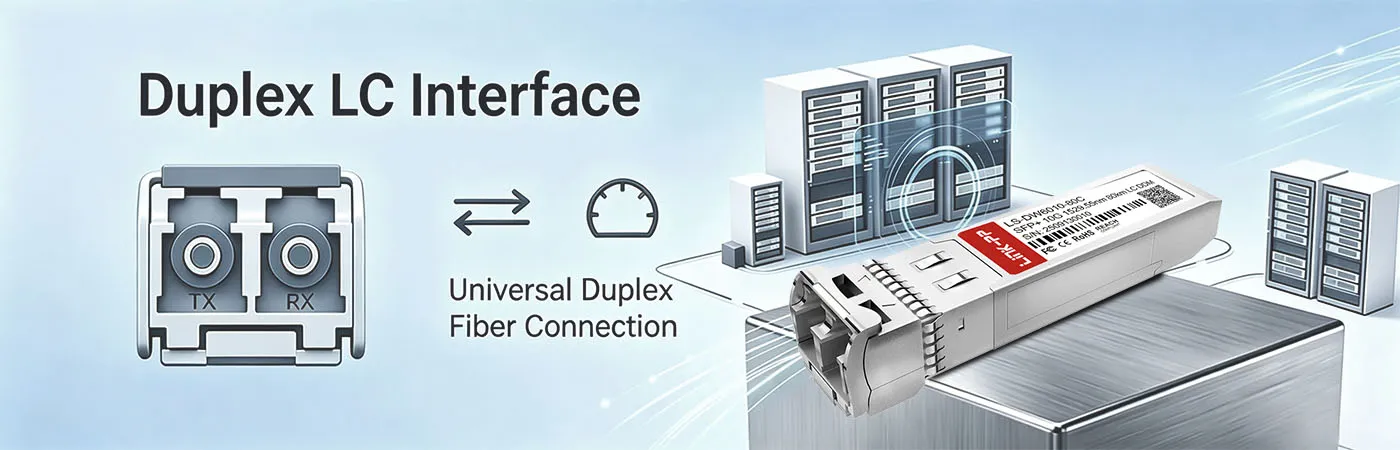

SFP-10G-DZ-29.55 Module with Duplex LC Interface
The industry-standard duplex LC optical connector provides secure fiber latching and low insertion loss for single-mode patch cables. Its compact form factor maintains high port density on switches, routers, and optical transport shelves.

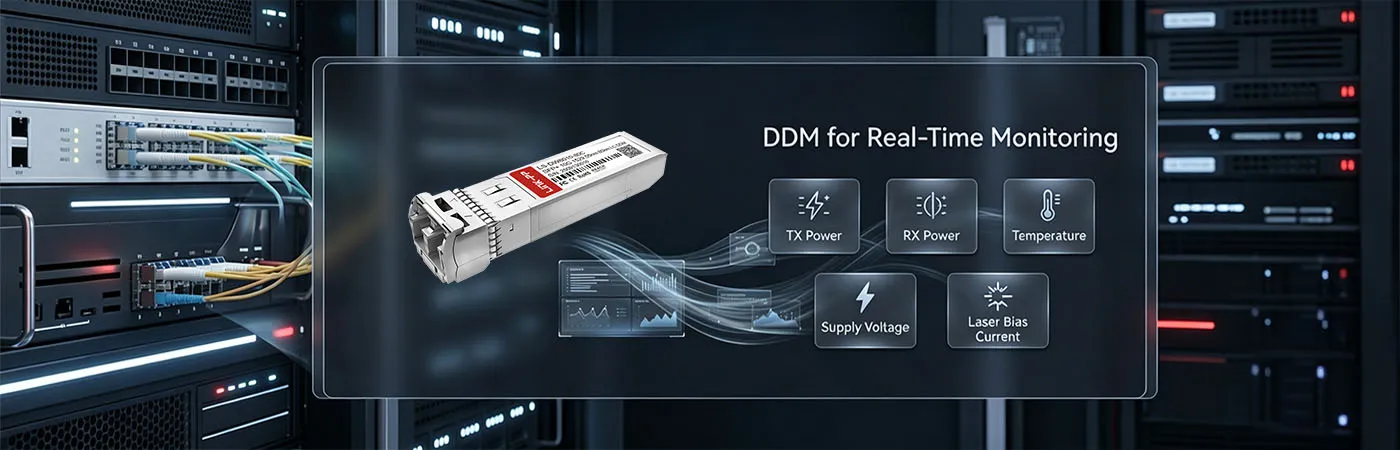

SFP-10G-DZ-29.55 Module with DDM for Real-Time Monitoring
Built-in digital diagnostic monitoring allows network administrators to track vital parameters such as optical power, laser bias current, and operating temperature in real time. It is fully compatible with SFF-8472 digital diagnostics functions to streamline fault isolation and proactive network maintenance.
Arista SFP-10G-DZ-29.55 Compatible LINK-PP DWDM SFP+ module holds official ISO 9001, CE, RoHS, and FCC credentials to satisfy international regulatory guidelines. These global approvals verify that the module is safe, environmentally responsible, and built to high manufacturing standards.
Each 10G DWDM module passes thorough factory checks for signal clarity, optical power levels, and temperature endurance before packaging. This multi-step inspection helps eliminate early hardware failures and ensures smooth field operation.
SFP-10G-DZ-29.55 Quality Certifications
The module is manufactured in accordance with recognized industry standards for electrical safety, materials, and production quality. These verified certifications confirm that each production batch meets international regulatory and operational requirements.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
SFP-10G-DZ-29.55 Certified for Reliable Host-Device Compatibility
Host-device testing confirms that the module works smoothly with standard switch, router, and server interfaces. This ensures smooth system integration and eliminates device identification issues during setup.
Each SFP-10G-DZ-29.55 DWDM 10G SFP+ optical module undergoes strict multi-stage quality evaluations to verify optical signal integrity, hardware stability, and long-term link reliability. Learn more about our validation processes at the LINK-PP Test Support Center.
Optical Spectrum Test
Measure central wavelength and spectral width to guarantee channel accuracy.
Eye Pattern Test
Analyze signal waveform and jitter to ensure clear optical transmission.
Bit Error Rate Test
Evaluate data packet delivery to prevent packet loss during transport.
Temperature Test
Verify module operation across standard commercial thermal ranges for stability.
Product Shipping for Arista SFP-10G-DZ-29.55 Compatible LINK-PP 10G SFP+
All SFP-10G-DZ-29.55 SFP+ optical modules are carefully packed and dispatched through dependable logistics channels to ensure secure global transit. Every order is processed promptly to guarantee safe delivery and minimize network deployment downtime.
Anti-Static Protective Packaging
Prevent electrostatic damage to internal components using specialized packaging.
Shock-Resistant Transport Protection
Protect optical housing against transit vibration to maintain hardware integrity.
Fast Order Processing and Dispatch
Accelerate warehouse fulfillment cycles to speed up outbound parcel shipments.
Global Logistics and International Delivery
Coordinate trusted freight carriers to provide worldwide parcel tracking visibility.

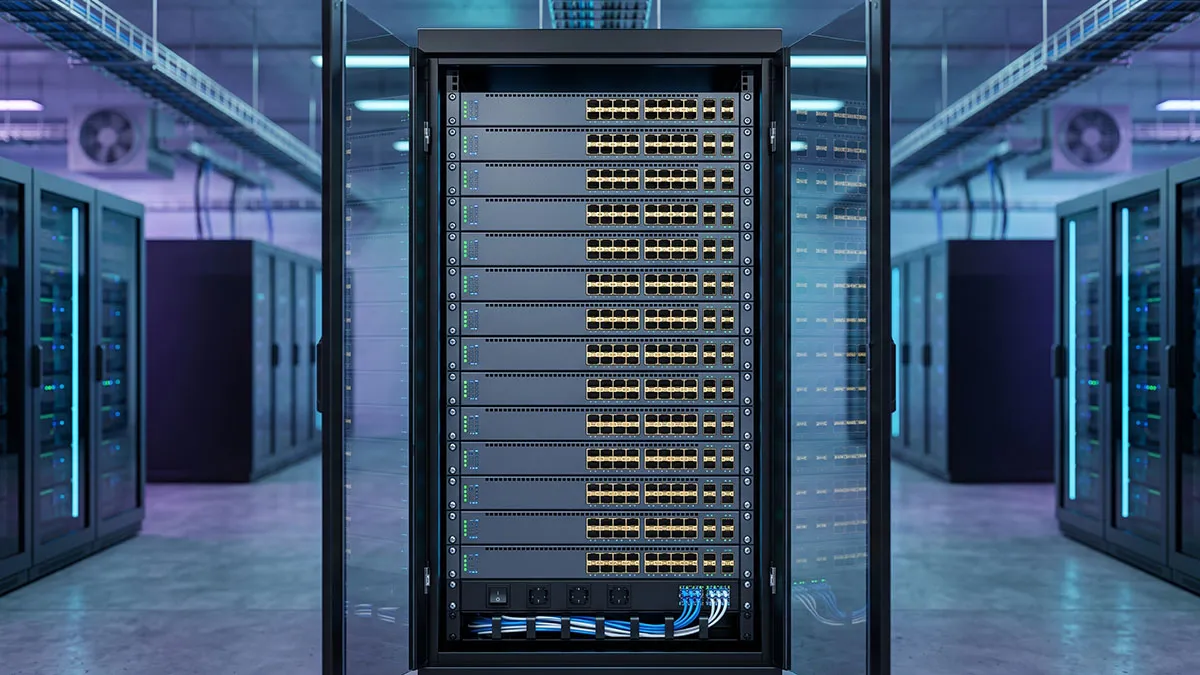

Insert the Arista SFP-10G-DZ-29.55 Compatible LINK-PP DWDM module into an SFP+ switch port, latch the duplex LC single-mode patch cord securely, and establish real-time link synchronization. This hot-pluggable transceiver module delivers dependable 80km data transmission across point-to-point telecom links connecting regional central offices and service aggregation nodes.
SFP-10G-DZ-29.55 Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal SFP-10G-DZ-29.55 module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
Yes. The module operates at a fixed nominal wavelength of 1529.55nm with a standard 100GHz channel spacing, making it fully compatible with any standard ITU-T C-band 100GHz DWDM mux/demux port designated for Channel 60. By
admin
A:
A standard engineering rule is to reserve a 3dB to 5dB safety margin beyond normal patch loss and connector insertion budgets to allow for future fusion splices or slight optical degradation. By
admin
A:
Yes, standard 1.25mm LC one-click optical cleaning pens work perfectly for maintaining clean ferrule end-faces inside the optical receptacle. By
admin
A:
You should use standard duplex LC/UPC (Ultra Physical Contact) single-mode patch cords. Angled APC connectors should not be plugged directly into the transceiver optical receptacle. By
admin
We use this 10G DWDM 80km SFP+ transceiver on an indoor metro-style fiber path between offices. The module has stayed stable during daily traffic peaks, and the DOM values are easy to check from the switch CLI. Good replacement for our older optics.
Please write comments with more than three
character.
496921
517484
M***k
Turkey
Verified
Purchase
5 .0
2026-07-30
Our team used these for indoor base station backhaul aggregation. The 1529.55nm channel matched the plan, and the modules performed well through the DWDM equipment. We especially like being able to watch RX power remotely before a weak signal becomes a service ticket.
Please write comments with more than three
character.
496921
517480
B***l
Spain
Verified
Purchase
4 .0
2026-04-19
Good purchase for our indoor 10G link. Shipping was safe, but the carton had some light scuff marks after international transit. The transceiver was unaffected =D
Please write comments with more than three
character.
496921
517483
J***m
Romania
Verified
Purchase
5 .0
2026-04-06
Perfect solution for our regional ISP point-to-point feed. Channel 60 fits cleanly into our 100GHz ITU grid filter with negligible adjacent-channel crosstalk. Link attenuation is roughly 18dB and the APD receiver handled it without saturation or packet drops ;)
Please write comments with more than three
character.
496921
517492
R***a
Libyan Arab Jamahiriya
Verified
Purchase
5 .0
2026-03-18
This 80km SFP+ DWDM transceiver has been deployed in a campus fiber network for several months. Link stability is good, and there have been no CRC errors on the uplink. The DOM data also helps us verify the fiber path after maintenance.
Please write comments with more than three
character.
496921
517488
J***y
Germany
Verified
Purchase
5 .0
2026-02-28
Hooked up two off-site backup storage nodes across town. The 10.7Gbps throughput is stable, latency is minimal, and our dual LC single-mode fiber patch cables clicked in securely.
Please write comments with more than three
character.
496921
517486
S***n
Ireland
Verified
Purchase
5 .0
2025-12-21
This 1529.55nm 100GHz DWDM module helped us add capacity without pulling another fiber pair. We placed it on an existing DWDM path with single-mode fiber, and it has been running cleanly for video and business application traffic. :-)
Please write comments with more than three
character.
496921
517485
S***s
Taiwan, Province of China
Verified
Purchase
5 .0
2025-11-03
Great option for network expansion. We added these DWDM SFP+ modules into our dense wavelength division multiplexing rack and doubled our throughput without pulling extra glass.
Please write comments with more than three
character.
496921
517482
P***y
Ukraine
Verified
Purchase
5 .0
2025-07-11
Used this module for a 10GbE NAS replication link between two indoor server rooms. The 80km rating is more than we need, but the stronger optical budget gave us confidence on a route with several patch panels. Performance has been solid ;)
Please write comments with more than three
character.
496921
517481
A***m
Nepal
Verified
Purchase
5 .0
2025-05-22
Tested one unit before approving a larger purchase for our data center interconnect project. TX power and RX readings were within expected ranges, the module stayed stable at normal room temperature, and the link passed sustained file-transfer testing. We proceeded with the bulk order.
