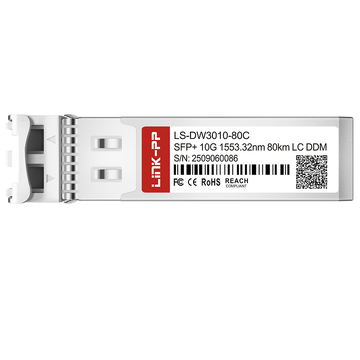

The Alcatel-Lucent DW-SFP10G80-30 Compatible LINK-PP module is a long-reach 10G SFP+ DWDM optical module engineered for C-band wavelength 1553.32nm (Channel 30, 100GHz ITU grid). Equipped with a cooled EML transmitter and a high-sensitivity APD receiver, it supports link distances up to 80km over single-mode fiber and features real-time digital diagnostic monitoring.
Alcatel-Lucent Part Number
DW-SFP10G80-30
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1553.32nm
Max Cable Distance
80km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
TX Power
-1 to +5dBm
RX Power
-23 to -6dBm
Receiver Sensitivity
-23dBm
DDM/DOM
Supported
Operating Temperature Range
0 to 70°C
Protocols
10GBASE-ZR/ZW, SDH STM64, SFF-8431, SFF-8472
Key Features of Alcatel-Lucent DW-SFP10G80-30 Compatible LINK-PP 10G SFP+
Alcatel-Lucent DW-SFP10G80-30 Compatible LINK-PP combines 10Gbps transmission speed with dense wavelength multiplexing to deliver reliable long-distance data transport over single-mode fiber. This commercial-grade optical transceiver integrates standard hardware compliance, extended 80km reach, and continuous parameter tracking into a compact form factor.
The transceiver features a hot-pluggable SFP+ footprint that allows easy installation and replacement without powering down host equipment. Full compliance with the SFP+ MSA ensures seamless physical and electrical fit across standard networking ports.
DW-SFP10G80-30: 10 Gbps Connectivity for Metro DCI Links
Operating at a 10Gbps data rate, this device provides the bandwidth required for modern point-to-point data center interconnects. Network operators can reliably link distributed facilities across metropolitan distances to handle heavy daily traffic loads.
DW-SFP10G80-30 Module with DWDM Technology for Fiber Efficiency
Dense Wavelength Division Multiplexing (DWDM) technology allows multiple optical signals to share a single existing fiber pair. This capability maximizes overall fiber utilization and expands network capacity without the cost of running new cables.
DW-SFP10G80-30 Module with 1553.32nm Wavelength
Channel 30 operates at a precise 1553.32nm optical wavelength on the standardized 100GHz ITU-T C-Band grid. This fixed optical channel prevents signal overlap and ensures clear spectral separation when multiplexed with other adjacent wavelengths.
An internal EML laser paired with an APD receiver provides the optical power budget required for extended spans up to 80km. Single-mode fiber cabling maintains low signal attenuation across these long distances, reducing the need for intermediate optical amplifiers.
DW-SFP10G80-30 Module with Duplex LC Interface
Dual LC optical connectors provide a secure, low-loss physical connection for industry-standard single-mode fiber patch cables. The compact latching design maintains mechanical stability and optical alignment in dense switch environments.
DW-SFP10G80-30 Module with DDM for Real-Time Monitoring
Integrated digital diagnostic monitoring gives administrators live visibility into critical operating parameters, including laser bias current, optical power, supply voltage, and operating temperature. Full compatibility with the SFF-8472 standard enables fault detection and proactive network maintenance.
Alcatel-Lucent DW-SFP10G80-30 Compatible LINK-PP 10G DWDM module meets key industry standards and holds certifications like ISO 9001, CE, RoHS, and FCC. These official approvals confirm that the module is safe, reliable, and built under strict quality controls.
Every DWDM module undergoes standardized factory testing for optical wavelength accuracy, receiver sensitivity, and temperature stability. This rigorous evaluation confirms full physical-layer performance and signal integrity.
DW-SFP10G80-30 Quality Certifications
These regulatory certifications verify adherence to defined international standards for electromagnetic compatibility and hazardous substance restrictions. Compliance documentation confirms the hardware meets specified electrical and environmental benchmarks.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
DW-SFP10G80-30 Certified for Reliable Host-Device Compatibility
Standard port compliance ensures the module fits easily into standard switches and routers. The host system instantly recognizes the transceiver, delivering stable connections without configuration issues.
Each DW-SFP10G80-30 DWDM 10G SFP+ optical transceiver undergoes a comprehensive series of evaluations to verify hardware stability and signal transmission accuracy. To review detailed validation procedures, visit the LINK-PP Test Support Center.
Optical Spectrum Test
Verify central wavelength accuracy and side-mode suppression ratio levels.
Eye Pattern Test
Analyze optical signal quality and transmitter eye mask margins.
Bit Error Rate Test
Measure data transmission accuracy across full fiber link distances.
Temperature Test
Check transceiver operational stability under specified thermal conditions.
Product Shipping for Alcatel-Lucent DW-SFP10G80-30 Compatible LINK-PP 10G SFP+
LINK-PP ensures that every DW-SFP10G80-30 optical transceiver is securely packed and promptly dispatched to maintain product integrity throughout transit. Our structured logistics workflow coordinates efficient global carrier services to deliver orders safely to customer sites.
Anti-Static Protective Packaging
Shield internal electronic components against electrostatic discharge during transit handling.
Shock-Resistant Transport Protection
Protect delicate optical elements against external impacts and physical vibrations.
Fast Order Processing and Dispatch
Prepare incoming customer shipments rapidly for prompt warehouse dispatch schedules.
Global Logistics and International Delivery
Coordinate reliable international freight carriers for prompt worldwide delivery.
Deploy Alcatel-Lucent DW-SFP10G80-30 Compatible LINK-PP by hot-plugging the module into host switches and attaching duplex LC single-mode fiber to the optical interface. The fixed C30 wavelength seamlessly multiplexes onto DWDM networks, providing direct, low-latency 10Gbps interconnects for regional enterprise backbones and metro data center links.
DW-SFP10G80-30 Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal DW-SFP10G80-30 module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
The module uses a cooled EML laser designed to stay locked precisely to the 100GHz grid spacing. In typical deployments, this helps prevent spectral drift and minimizes optical interference with neighboring channels. By
admin
A:
Yes, it is built on a hot-pluggable SFP+ footprint compliant with MSA guidelines. You can generally install or replace the unit live without rebooting the host chassis or interrupting other active ports. By
admin
A:
Yes, the module operates on a standard single +3.3V power supply within an operating case temperature of 0 to 70°C. In most commercial rack environments, this provides stable thermal and electrical performance. By
admin
A:
Yes, LTE systems are listed among its supported deployment applications alongside standard 10Gbps DWDM links. As long as your equipment accepts 10G SFP+ optical interfaces and operates within the 80km optical budget, it should fit the scenario well. By
