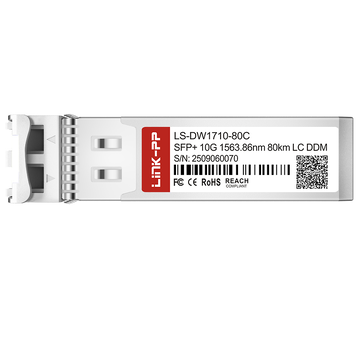

The Extreme DWDM-SFP10G-63.86 Compatible LINK-PP module is a high-performance 10G DWDM SFP+ optical transceiver designed for extended long-haul connectivity. Operating at a 1563.86nm wavelength with a 100GHz ITU grid, this module delivers robust 10Gbps data rates. It leverages an advanced Cooled EML laser and APD photodiode to ensure stable transmission up to 80km over single-mode fiber.
Extreme Part Number
DWDM-SFP10G-63.86
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1563.86nm
Max Cable Distance
80km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
TX Power
-1 to +5dBm
RX Power
-23 to -6dBm
Receiver Sensitivity
-23dBm
DDM/DOM
Supported
Operating Temperature Range
0 to 70°C
Protocols
10GBASE-ZR/ZW, SDH STM64, SFF-8431, SFF-8472
Key Features of Extreme DWDM-SFP10G-63.86 Compatible LINK-PP 10G DWDM SFP+
The key features of the Extreme DWDM-SFP10G-63.86 Compatible LINK-PP 10G DWDM SFP+ include a hot-pluggable footprint and ultra-low power consumption below 2W. This versatile optical module seamlessly supports multiple protocols, including 10GBASE-ZR, 10GBASE-ZW, and LTE systems, maximizing both network efficiency and long-distance deployment flexibility.
This Extreme DWDM-SFP10G-63.86 Compatible LINK-PP 10G SFP+ optical module represents a cost-effective solution for modern telecommunications. Engineered to satisfy MSA standards, this high-speed transceiver ensures exceptional signal integrity and operational stability across demanding high-capacity fiber optic networks.
DWDM-SFP10G-63.86: 10G Connectivity for Metropolitan Area Networks
Designed specifically for demanding urban infrastructure, the DWDM-SFP10G-63.86 provides seamless 10G connectivity for metropolitan area networks. Its robust data transmission capabilities enable service providers to effortlessly scale bandwidth and optimize long-haul optical routing performance reliably.
DWDM-SFP10G-63.86 Module with DWDM Technology for Fiber Efficiency
Utilizing dense wavelength division multiplexing, the DWDM-SFP10G-63.86 module with DWDM technology maximizes fiber efficiency perfectly. This intelligent design allows network operators to transmit multiple data channels simultaneously, drastically reducing dark fiber costs while boosting overall capacity.
DWDM-SFP10G-63.86 Module with 1563.86nm Wavelength
Operating precisely on ITU Channel 17, the DWDM-SFP10G-63.86 module with 1563.86nm wavelength guarantees minimal signal dispersion. This precise C-band DWDM frequency allocation ensures reliable cross-talk prevention and maintains superior optical signal quality across extended fiber routes.
Engineered with a premium Cooled EML transmitter and high-sensitivity APD receiver, the DWDM-SFP10G-63.86 module supporting 80km transmission overcomes severe signal attenuation. It delivers uninterrupted long-haul data center interconnects over standard single-mode fiber without requiring expensive amplification.
DWDM-SFP10G-63.86 Module with Duplex LC Interface
Featuring a standard hot-swappable design, the DWDM-SFP10G-63.86 module with duplex LC interface ensures quick, hassle-free fiber patching. This universal connector compatibility allows network technicians to seamlessly integrate the transceiver into existing high-density patch panels and enterprise networking equipment.
DWDM-SFP10G-63.86 Module with DOM for Real-Time Monitoring
Fully compliant with SFF-8472, the DWDM-SFP10G-63.86 module with DOM for real-time monitoring empowers administrators with critical diagnostics. Users can instantly track laser bias current, optical power levels, supply voltage, and internal operating temperatures to preemptively prevent downtime.
The Extreme DWDM-SFP10G-63.86 Compatible LINK-PP 10G SFP+ certification reflects uncompromising safety and manufacturing standards, ensuring every optical transceiver satisfies strict international regulatory compliance for global network deployment.
Every unit undergoes a comprehensive DWDM-SFP10G-63.86 quality testing program to guarantee defect-free operation. This strict quality control framework continuously validates optical performance against rigorous industry benchmarks.
DWDM-SFP10G-63.86 Quality Certifications
Holding prestigious DWDM-SFP10G-63.86 quality certifications, this 10G DWDM SFP+ optical module complies with CE, FCC, UKCA, UL, and REACH requirements, alongside Class I laser safety standards.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
DWDM-SFP10G-63.86 Certified for Reliable Host-Device Compatibility
Extensively validated on major switch brands, the DWDM-SFP10G-63.86 certified for reliable host-device compatibility ensures plug-and-play integration. It flawlessly conforms to standard Multi-Source Agreement SFP+ protocols.
Advanced laboratory diagnostics and rigorous testing ensures reliable SFP+ performance, delivering maximum longevity and optimal data integrity for demanding enterprise infrastructure.
Optical Spectrum Test
The optical spectrum test verifies precise 1563.86nm wavelength stability and verifies side-mode suppression.
Eye Pattern Test
The comprehensive eye pattern test guarantees clean signal transmission and extremely low jitter rates.
Bit Error Rate Test
Conducting a strict bit error rate test ensures flawless 10Gbps long-haul network communication.
Temperature Test
The environmental temperature test confirms stable commercial operation between 0°C and 70°C.
Product Shipping for Extreme DWDM-SFP10G-63.86 Compatible LINK-PP 10G SFP+
Premium product shipping for Extreme DWDM-SFP10G-63.86 Compatible LINK-PP 10G SFP+ guarantees safe transit, ensuring your optical networking components arrive in perfect condition globally.
Anti-Static Protective Packaging
We utilize advanced anti-static protective packaging to prevent harmful electrical discharge damage.
Shock-Resistant Transport Protection
Reliable shock-resistant transport protection securely shields the fragile optical components during transit.
Fast Order Processing and Dispatch
Our automated warehouse ensures exceptionally fast order processing and rapid dispatch schedules.
Global Logistics and International Delivery
Seamless global logistics and international delivery ensure fast arrivals to any destination.
Deploying this 10G DWDM optical module within your extended network infrastructure is remarkably simple. Just plug the hot-swappable transceiver into a compatible SFP+ port, attach your duplex LC fiber cable, and immediately unlock seamless, ultra-fast 10Gbps connectivity engineered for extreme 80km long-distance transmission.
DWDM-SFP10G-63.86 Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable DWDM-SFP10G-63.86 modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
A:
Yes, we do! For volume procurement and server room batch deployments, we provide highly competitive tiered pricing discounts. Please reach out to our sales team via live chat or email to get a custom wholesale quote. By
admin
A:
We maintain a highly stable supply chain with deep inventory for our 10G SFP+ DWDM modules. Most orders dispatch within 2 days, and standard expedited shipping takes about 3-5 business days to reach North American and European local addresses. By
admin
A:
This DWDM module is engineered strictly for Single Mode Fiber (SMF) using a Duplex LC connector to achieve its 80km long-haul transmission. It is not compatible with OM3/OM4 multimode fibers, which are intended for short-reach indoor connections only. By
admin
A:
This specific module supports a commercial working temperature range (0°C to 70°C). However, we do manufacture an industrial wide-temp version (-40°C to 85°C) designed perfectly for harsh outdoor base station environments. Just let our team know you need the industrial spec when ordering! By
admin
Please write comments with more than three
character.
496063
515893
D***s
Greece
Verified
Purchase
5 .0
2026-05-10
Batch deployed these C17 DWDM modules for DCI. Tx/Rx optical power is super stable over 75km SMF. DOM monitoring is highly accurate across our Juniper racks. Excellent 10GBASE-ZR alternative!
Please write comments with more than three
character.
496063
515886
B***g
Italy
Verified
Purchase
5 .0
2026-03-27
Using this 10G DWDM 1563.86nm transceiver for a 60km park optical network. The APD receiver sensitivity is fantastic. Fully compliant protocols and massive savings compared to brand name optics.
