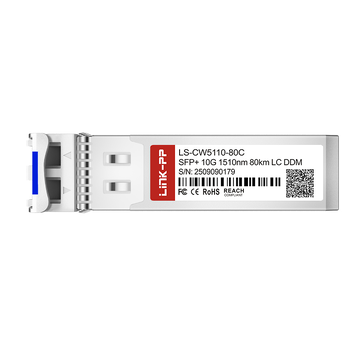

The HPE CWDM-SFP10G-1510 Compatible LINK-PP module is a high-performance 10G CWDM SFP+ optical transceiver supporting up to 10.7Gbps data rates over single-mode fiber (SMF). Engineered with a cooled EML 1510nm transmitter, high-sensitivity APD receiver, and duplex LC connector, this hot-pluggable module delivers reliable 80km transmission, compliant with SFP+ MSA, SFF-8472, and commercial 0°C to +70°C operating temperatures.
Key Features of HPE CWDM-SFP10G-1510 Compatible LINK-PP 10G CWDM SFP+
The HPE CWDM-SFP10G-1510 Compatible LINK-PP feature set includes a hot-pluggable SFP+ footprint, 1510nm CWDM wavelength, cooled EML laser, APD photodiode, and 80km reach. Operating on a single 3.3V supply, it supports real-time Digital Optical Monitoring (DOM) via SFF-8472 and offers seamless compatibility with SFP+ MSA-compliant network equipment.
As a premium 10G SFP+ transceiver, the HPE CWDM-SFP10G-1510 Compatible LINK-PP delivers robust optical performance for 10GBASE-ZR/ZW systems. It optimizes long-haul fiber communication by providing high-speed, cost-effective data transmission across demanding enterprise and service provider networks.
CWDM-SFP10G-1510: 10G Connectivity for Content Delivery Networks
Designed for bandwidth-intensive environments, the CWDM-SFP10G-1510 module empowers Content Delivery Networks (CDNs) and edge data centers. It ensures low-latency, ultra-fast 10G optical links to handle heavy video streaming, cloud traffic, and high-volume data transport efficiently.
CWDM-SFP10G-1510 Module with CWDM Technology for Fiber Efficiency
Utilizing Course Wavelength Division Multiplexing (CWDM) technology, the CWDM-SFP10G-1510 enables network operators to maximize existing fiber infrastructure. By multiplexing multiple channels over a single SMF strand, it significantly reduces cabling costs while expanding network capacity.
CWDM-SFP10G-1510 Module with 1510nm Wavelength
Operating at the 1510nm CWDM grid wavelength, the CWDM-SFP10G-1510 module utilizes a cooled EML laser for narrow spectral width and exceptional signal purity. This precise wavelength allocation prevents channel crosstalk in multi-wavelength optical systems.
Equipped with a high-gain APD receiver, the CWDM-SFP10G-1510 transceiver supports extended 80km transmission links over single-mode fiber. It provides an impressive 23dB optical power budget, ideal for long-haul metropolitan networks and backhaul connections.
CWDM-SFP10G-1510 Module with Duplex LC Interface
Featuring an industry-standard duplex LC receptacle, the CWDM-SFP10G-1510 transceiver allows quick, secure fiber optic patching. Its compact LC interface ensures low insertion loss, reliable latching, and seamless integration with existing single-mode LC patch cables.
CWDM-SFP10G-1510 Module with DOM for Real-Time Monitoring
The CWDM-SFP10G-1510 integrates Digital Optical Monitoring (DOM) capabilities via a 2-wire serial interface. Network administrators can monitor real-time operating parameters including temperature, voltage, TX power, RX power, and laser bias current for proactive link maintenance.
Every CWDM-SFP10G-1510 module undergoes a comprehensive multi-stage quality assurance program, including optical parameter verification, system compatibility validation, and environmental endurance testing before leaving the LINK-PP manufacturing facility.
CWDM-SFP10G-1510 Quality Certifications
Backed by rigorous quality certifications like ISO9001, CE, FCC, and UL, the CWDM-SFP10G-1510 guarantees high manufacturing standards, operational safety, environmental compliance, and long-term structural reliability.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
CWDM-SFP10G-1510 Certified for Reliable Host-Device Compatibility
Designed in full accordance with SFP+ Multi-Source Agreement (MSA) standards, the CWDM-SFP10G-1510 module is certified to deliver seamless, plug-and-play interoperability across major commercial switch, router, and server platforms.
Advanced performance testing ensures the CWDM-SFP10G-1510 transceiver delivers low error rates, crisp signal integrity, and stable optical output under all operating conditions.
Optical Spectrum Test
Validates precise 1510nm central wavelength accuracy and side-mode suppression ratio for the CWDM-SFP10G-1510.
Eye Pattern Test
Confirms signal shape, extinction ratio, and eye mask margin for clean 10G transmission.
Bit Error Rate Test
Guarantees flawless data integrity with BER levels under 1×10⁻¹² across 80km links.
Temperature Test
Ensures stable thermal performance across the full 0°C to +70°C commercial operating range.
Product Shipping for HPE CWDM-SFP10G-1510 Compatible LINK-PP 10G SFP+
LINK-PP provides secure, fast, and fully tracked international shipping solutions to ensure your CWDM-SFP10G-1510 transceivers arrive safely and on schedule.
To deploy the HPE CWDM-SFP10G-1510 Compatible LINK-PP, simply insert the hot-swappable SFP+ module into your switch port until latched, remove the dust plug, and connect a duplex LC single-mode patch cable for immediate 10G network connectivity.
CWDM-SFP10G-1510 Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable CWDM-SFP10G-1510 modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
A:
The standard LS-CW5110-80C handles normal commercial operating temperatures beautifully. However, we also manufacture true industrial-grade versions (-40°C to 85°C) specifically engineered for outdoor cabinets, base station backhaul, and harsh edge networking environments. By
admin
A:
Definitely. The LS-CW5110-80C transceiver is 100% compliant with standard SFP+ MSA and IEEE 802.3ae protocols. They are fully certified with CE, FCC, and RoHS to meet strict global industry regulations and compliance mandates. By
admin
A:
Absolutely! The LS-CW5110-80C is heavily tested for multi-brand interoperability. It operates seamlessly across Cisco, Arista, Juniper, and other major OEM equipment without any protocol conflicts or vendor lock-in issues. By
admin
A:
Yes, we provide tier-based wholesale pricing for B2B bulk deployments. Please contact our sales team directly, and we’ll customize a highly competitive quote for your large-scale optical network project. By
admin
Please write comments with more than three
character.
495862
510519
D***s
Portugal
Verified
Purchase
5 .0
2026-07-04
Used these 10G SFP+ CWDM transceivers for data center interconnection. Solid performance in outdoor cabinets despite high temps. TX/RX levels remain stable. Highly recommend for campus fiber setups.
Please write comments with more than three
character.
495862
510526
S***n
Republic of Korea
Verified
Purchase
5 .0
2026-06-20
Upgraded our enterprise core with these 10G duplex LC SMF modules. DOM monitoring works natively on Juniper. Reliable data rate over long runs. A true plug-and-play network solution!
Please write comments with more than three
character.
495862
510529
M***l
Mexico
Verified
Purchase
5 .0
2026-04-08
Tested the 1510nm 80km optics on multiple switch brands. Zero interoperability issues. Perfect for our industrial ring network. The duplex LC connectors feel premium. Outstanding B2B procurement choice.
