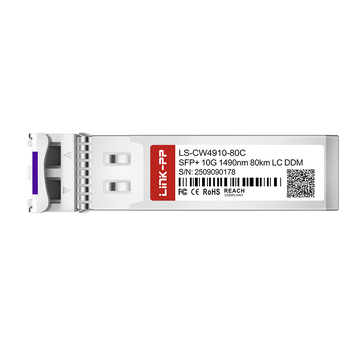

The Ciena CWDM-SFP10G-1490 Compatible LINK-PP module is a high-performance 10G CWDM SFP+ optical transceiver engineered for long-reach enterprise and telecom networks. Operating at a 1490nm wavelength over single-mode fiber, this hot-pluggable module features a cooled EML laser, APD receiver, duplex LC connector, and Digital Optical Monitoring, delivering reliable 10Gbps data transmission across distances up to 80km.
| Ciena Part Number | CWDM-SFP10G-1490 | Vendor Name | LINK-PP |
| Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
| Wavelength | 1490nm | Max Cable Distance | 80km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | EML | Receiver Type | APD |
| TX Power | -1 to +5dBm | RX Power | -23 to -6dBm |
| Receiver Sensitivity | -23dBm | DDM/DOM | Supported |
| Operating Temperature Range | 0 to 70°C | Protocols | SFP+ MSA Compliant, SFF 8472,SFF 8431,802.3ae, ITU-T G.652 |
This Ciena CWDM-SFP10G-1490 Compatible LINK-PP SFP+ transceiver supports data rates up to 10.7Gbps, featuring a 1490nm cooled EML transmitter, APD photodiode, hot-swappable footprint, and duplex LC connector. Built for 80km SMF reach, it offers real-time digital diagnostic monitoring, low power consumption, and full MSA compliance for robust networking.
Engineered for demanding 10Gbps optical links, the Ciena CWDM-SFP10G-1490 Compatible LINK-PP 10G SFP+ module delivers exceptional signal integrity over extended fiber infrastructure. Its compact form factor and energy-efficient design ensure seamless deployment in modern high-density networking environments.
The CWDM-SFP10G-1490 SFP+ transceiver provides high-speed 10G connectivity for Top-of-Rack (ToR) switch and server aggregation links. It optimizes bandwidth distribution across data center architectures while maintaining high reliability, low latency, and protocol compatibility for critical enterprise workloads.
Utilizing Coarse Wavelength Division Multiplexing, the CWDM-SFP10G-1490 optical transceiver multiplexes multiple data channels onto a single optical fiber pair. This technology maximizes existing single-mode fiber capacity, dramatically lowering infrastructure upgrade costs for expanding network operators.
Operating at a precise 1490nm wavelength, the CWDM-SFP10G-1490 SFP+ module integrates a cooled EML laser to ensure minimal spectral dispersion. This specific CWDM channel enables interference-free multi-wavelength optical transmission across long-distance single-mode fiber links.
Equipped with a high-sensitivity APD receiver and powerful laser transmitter, the CWDM-SFP10G-1490 module achieves an impressive 80km transmission reach over SMF. It is the ideal solution for 10GBASE-ZR/ZW metro networks and long-haul backhaul connections.
Featuring an industry-standard duplex LC connector, the CWDM-SFP10G-1490 transceiver provides stable optical coupling and easy patching with standard single-mode fiber cables. The durable LC interface ensures low insertion loss and secure latching for mission-critical networks.
The integrated Digital Optical Monitoring (DOM) capability in the CWDM-SFP10G-1490 module allows network managers to monitor real-time operating temperature, supply voltage, laser bias current, transmit power, and receive power via an I2C interface per SFF-8472.
The Ciena CWDM-SFP10G-1490 Compatible LINK-PP 10G SFP+ module complies with strict international standards, including CE, FCC, UKCA, UL, Class 1 Laser Safety, and RoHS, guaranteeing safe and environmentally responsible operation.
Every CWDM-SFP10G-1490 transceiver undergoes a comprehensive quality testing program, evaluating optical performance, thermal stability, and mechanical endurance to ensure flawless operation in demanding network deployments.
Backed by ISO-certified manufacturing and rigorous regulatory certifications, the CWDM-SFP10G-1490 optical module fulfills global quality benchmarks for electromagnetic compatibility, hazard restriction, and optical component reliability.
Fully compliant with SFP+ MSA guidelines, the CWDM-SFP10G-1490 is certified for seamless interoperability across major host switches, routers, and network servers without causing system compatibility errors.
LINK-PP enforces multi-stage production testing for every SFP+ module, guaranteeing maximum network uptime, zero-defect optical performance, and long-term hardware reliability.
Verifies central 1490nm wavelength accuracy and side-mode suppression ratio for optimal CWDM signal transmission.
Assesses transmitter signal quality and extinction ratio to ensure clean, jitter-free 10Gbps optical waveforms.
Validates receiver sensitivity and data link integrity to maintain BER better than 1E-12 over 80km.
Tests module stability across commercial 0°C to +70°C operating thermal environments under full load.
We implement strict logistics protocols for Ciena CWDM-SFP10G-1490 Compatible LINK-PP 10G SFP+ shipments, ensuring safe transit, rapid dispatch, and reliable global delivery.
Each transceiver is individually sealed in an anti-static ESD shield bag.
Cushioned custom foam packaging prevents physical vibration and transit impact damage.
Orders are promptly processed and dispatched to minimize customer network downtime.
Partnered with major express carriers for safe, tracked worldwide product delivery.
Inserting the Ciena CWDM-SFP10G-1490 Compatible LINK-PP 10G SFP+ module into a compatible switch port is straightforward; simply align, push until latching engages, and connect duplex LC fiber cables for instant 10G CWDM network link initialization.
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Professional technical guidance to help customers select the most suitable CWDM-SFP10G-1490 modules based on network architecture and application requirements.
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.
15-day no-reason return and refund
Free replacement for dead-on-arrival (DOA) or defective items within the initial period
Free repair services for manufacturing defects throughout the warranty period
Warranty exclusions and conditions apply
