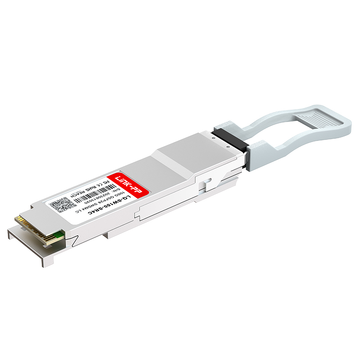

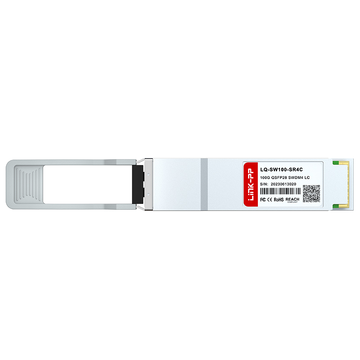

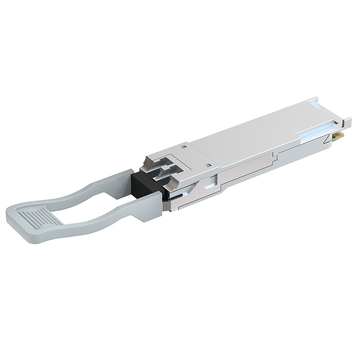

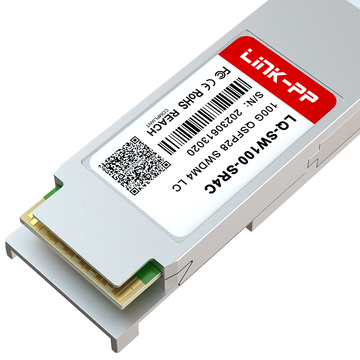

The Generic QSFP-BIDI-100G Compatible LINK-PP module is a high-performance, hot-pluggable 100G QSFP28 SWDM4 optical transceiver module delivering 103.1Gbps aggregate throughput over duplex multimode fiber. Operating across 850nm to 940nm wavelengths with VCSEL transmitters and PIN receivers, it features low power consumption under 3.5W, CAUI-4 electrical interface, and standard commercial operating case temperature from 0°C to 70°C.
Generic Part Number
QSFP-BIDI-100G
Vendor Name
LINK-PP
Form Factor
QSFP28
Max Data Rate
103.1Gbps
Wavelength
850/880/910/940nm
Max Cable Distance
75m@OM3/100m@OM4/150m@OM5
Connector
Duplex LC
Media
MMF
Transmitter Type
VCSEL
Receiver Type
PIN
Modulation (Electrical)
4x 25G-NRZ
Modulation (Optical)
4x 25G-NRZ
DDM/DOM
Supported
Operating Temperature Range
0°C to +70°C
Protocols
QSFP28 MSA, SFF-8636, IEEE 802.3bm, CAUI-4
Warranty
5 Years
Key Features of Generic QSFP-BIDI-100G Compatible LINK-PP 100G QSFP28
Engineered for high-density networking, the Generic QSFP-BIDI-100G Compatible LINK-PP 100G QSFP28 transceiver combines short wavelength division multiplexing, duplex LC connectivity, and energy-efficient operation under 3.5W. It provides seamless 100G Ethernet upgrades over legacy OM3, OM4, and OM5 multimode fiber infrastructure while offering built-in digital diagnostic monitoring.
The Generic QSFP-BIDI-100G Compatible LINK-PP 100G QSFP28 optical module integrates 4x25Gbps NRZ channels in a compact hot-pluggable footprint. Fully compliant with QSFP28 MSA and IEEE 802.3bm CAUI-4 standards, it ensures superior data integrity across modern high-speed enterprise networks.
QSFP-BIDI-100G: 100G Connectivity for Carrier Backbone
Designed for robust network scaling, the QSFP-BIDI-100G delivers reliable 100G Ethernet connectivity for telecom backbones, enterprise core switches, and cloud data centers, ensuring ultra-low latency, maximum data throughput, and mission-critical transmission stability.
QSFP-BIDI-100G Module with SWDM4 Technology for Fiber Efficiency
Utilizing advanced Short Wavelength Division Multiplexing, the QSFP-BIDI-100G multiplexes four optical lanes onto a single duplex multimode fiber pair. This drastically reduces cabling complexity and eliminates costly MPO ribbon fiber migration when upgrading links.
QSFP-BIDI-100G Module with 850nm, 880nm, 910nm, 940nm Wavelength
Operating across four precise wavelength channels-850nm, 880nm, 910nm, and 940nm-the QSFP-BIDI-100G optical module utilizes high-speed VCSEL arrays to deliver 25.78Gbps per channel with minimal chromatic dispersion and optimal signal clarity over multimode fibers.
The QSFP-BIDI-100G supports transmission distances up to 75m on OM3, 100m on OM4, and reaches up to 150m on OM5 wideband multimode fiber, making it an ideal cost-effective reach solution for inter-rack and enterprise interconnects.
QSFP-BIDI-100G Module with Duplex LC Interface
Equipped with a standard duplex LC optical interface, the QSFP-BIDI-100G enables direct connection to existing two-fiber LC patch cords, allowing seamless 10G/40G to 100G network migration without replacing current structured cabling infrastructure.
QSFP-BIDI-100G Module with DOM for Real-Time Monitoring
Featuring built-in Digital Optical Monitoring (DOM) via I2C compliant with SFF-8636, the QSFP-BIDI-100G provides real-time tracking of operating temperature, supply voltage, laser bias current, and transmitted/received optical power for proactive network maintenance.
Every QSFP-BIDI-100G module undergoes automated optical, electrical, and functional testing to verify transmit signal integrity, receiver sensitivity thresholds, power consumption limits, and zero frame-loss packet transmission.
QSFP-BIDI-100G Quality Certifications
Manufactured under strict quality management standards, the QSFP-BIDI-100G fully complies with CE, FCC, UKCA, UL safety guidelines, as well as RoHS and REACH environmental protection directives.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
QSFP-BIDI-100G Certified for Reliable Host-Device Compatibility
Certified for broad switch interoperability, the QSFP-BIDI-100G adheres to SFF-8636 and QSFP28 MSA specifications, ensuring plug-and-play compatibility with major OEM Ethernet switches, routers, and network interface cards.
LINK-PP subjects every QSFP28 transceiver to rigorous multi-stage laboratory validation, ensuring maximum signal stability, low jitter, and sustained 100G transmission reliability in demanding environments.
Optical Spectrum Test
Spectrum analysis verifies central wavelengths (850-940nm) and maintains RMS spectral widths within strict 0.59nm limits.
Eye Pattern Test
Transmitter eye mask validation guarantees clean 25.78Gbps waveforms with low dispersion and low jitter.
Bit Error Rate Test
Pre-FEC and post-FEC bit error rate testing confirms zero packet loss across high-speed traffic.
Temperature Test
Thermal chamber testing guarantees stable optical performance throughout the commercial 0°C to 70°C operating range.
Product Shipping for Generic QSFP-BIDI-100G Compatible LINK-PP 100G QSFP28
LINK-PP ensures prompt, secure global delivery for the QSFP-BIDI-100G 100G QSFP28 transceiver with professional ESD-safe packaging and streamlined order fulfillment.
The Generic QSFP-BIDI-100G Compatible LINK-PP 100G QSFP28 module features effortless hot-pluggable installation into any standard QSFP28 switch port. Connect standard duplex LC multimode fiber patch cables to establish instant 100Gbps Ethernet transmission with automatic link negotiation and DDM telemetry.
QSFP-BIDI-100G Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable QSFP-BIDI-100G modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
A:
To achieve the full 150m transmission distance, you should use OM5 Multi-Mode Fiber (MMF). It also supports 75m on OM3 and 100m on OM4 fiber cables. The module features a standard Duplex LC interface, making patching and cable management very straightforward. By
admin
A:
Yes! The module fully complies with IEEE 802.3bm 100GBASE-SR4, SWDM MSA, and QSFP28 MSA standards. It is also RoHS compliant, ensuring it meets all global regulatory and environmental requirements for enterprise networking. By
admin
A:
We definitely support enterprise procurement! For large-scale batch deployments like server room rollouts, please reach out to our sales team directly. We offer highly competitive wholesale pricing and flexible net terms for B2B customers. By
admin
A:
Yes, absolutely! Our LQ-SW100-SR4C transceiver is 100% MSA compliant and strictly tested for OEM compatibility, ensuring seamless plug-and-play interoperability with Cisco, Arista, Juniper, and other major switch brands. By
admin
A:
This standard version operates reliably in commercial temps (0°C to 70°C), which is perfect for most indoor racks. If you need it for harsh outdoor base station backhaul environments, we also provide an industrial-grade version (-40°C to 85°C). Just let our team know! By
admin
Please write comments with more than three
character.
495484
518487
M***n
Germany
Verified
Purchase
5 .0
2026-07-23
As a network engineer, I highly recommend this for enterprise 100G NAS storage environments. The short-range MMF performance is flawless, hitting full 100m on our existing OM4 infrastructure with zero latency spikes.
Please write comments with more than three
character.
495484
518499
E***n
Canada
Verified
Purchase
5 .0
2026-03-31
We manage multiple outdoor cabinets facing extreme temperature shifts. This industrial-ready 100G SWDM4 module easily survived our rigorous thermal testing while maintaining perfect DDM metrics and stable base station backhaul performance.
