How do we monitor internal thermal levels and voltage performance while the module is deployed at a remote site?

The integrated real-time digital diagnostic monitoring (DDM) lets you read live temperature, supply voltage, laser bias current, and optical power via your switch CLI.

Can I use this optical transceiver for a 10GBASE-ZR or 10GBASE-ZW Ethernet deployment?

Yes, the LS-DW3010-40I module is fully compatible with both 10GBASE-ZR (10.3125Gbps) and 10GBASE-ZW (9.953Gbps) protocol standards.

We are connecting passive 100GHz DWDM multiplexers. Does this optic align with Channel 30?

Yes, it operates strictly on the 100GHz ITU C-band grid at C30 (1553.32nm) for seamless Mux/Demux channel matching.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 10/25/40G/100G Transceiver Modules; 10G CWDM/DWDM SFP+; 222589

Click to open expanded view

Generic DW-SFP10G40-30-I Compatible LINK-PP C30 10G SFP+ DWDM 1553.32nm 40km Duplex LC DOM SMF Optical Transceiver Module (Industrial)

Name: Generic DW-SFP10G40-30-I Compatible LINK-PP C30 10G SFP+ DWDM 1553.32nm 40km Duplex LC DOM SMF Optical Transceiver Module (Industrial)
Brand: LINK-PP
SKU: 222589
Price: 257.14 USD
Availability: InStock
Rating: 4.9 (32 reviews)

# 222589

Product: Generic DW-SFP10G40-30-I Compatible LINK-PP C30 10G SFP+ DWDM 1553.32nm 40km Duplex LC DOM SMF Optical Transceiver Module (Industrial)
SKU: 222589
P/N: LS-DW3010-40I
Price: $ 299
Stock: 262 in Stock
Sold: 597
Product URL: https://www.l-p.com/products/495349.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

32 Reviews

3 Questions

Request Stock

597 Sold

$ 299

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 299

100

$ 284.05

1000

$ 275.08

3000

$ 266.11

6000

$ 257.14

Manufacture: LINK-PP

P/N: LS-DW3010-40I

Compatible:: Cisco; LINK-PP; Arista; Brocade; Ciena; Dell; Extreme; FS; Generic; H3C; HW; Juniper; MRV; Netgear

Wavelength:: C17; C18; C19; C20; C21; C22; C23; C24; C25; C26; C27; C28; C29; C30; C31; C32; C33; C34; C35; C36; C37; C38; C39; C40

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

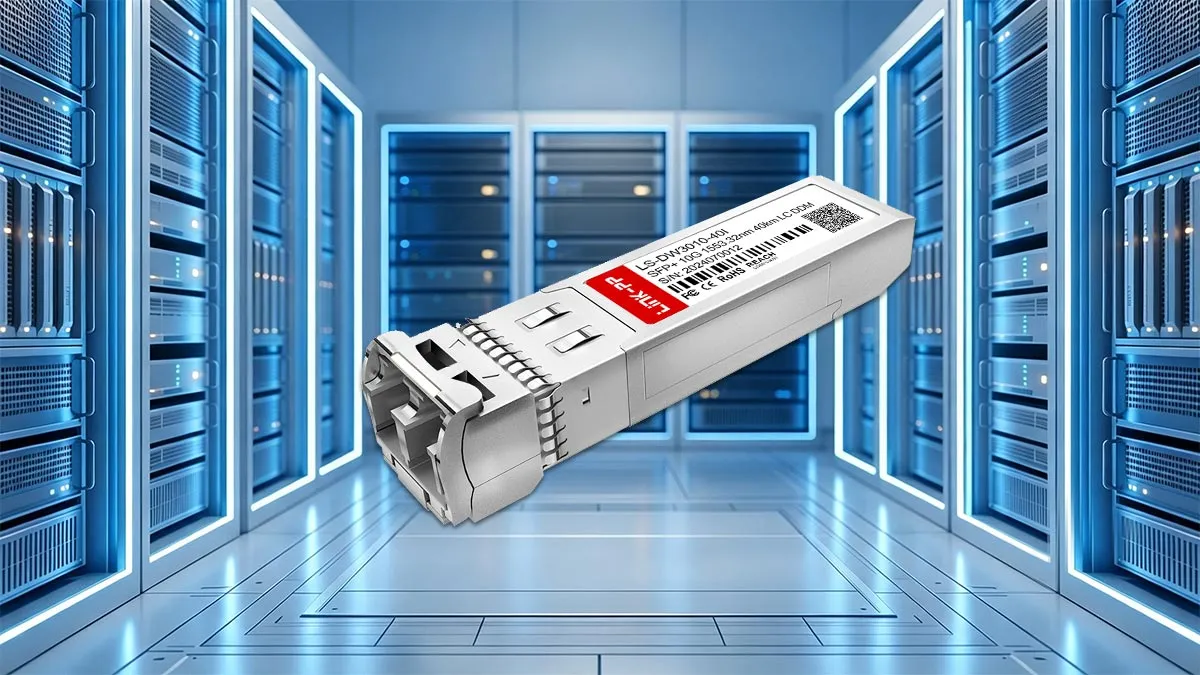

Generic DW-SFP10G40-30-I Compatible LINK-PP C30 10G SFP+ Specifications

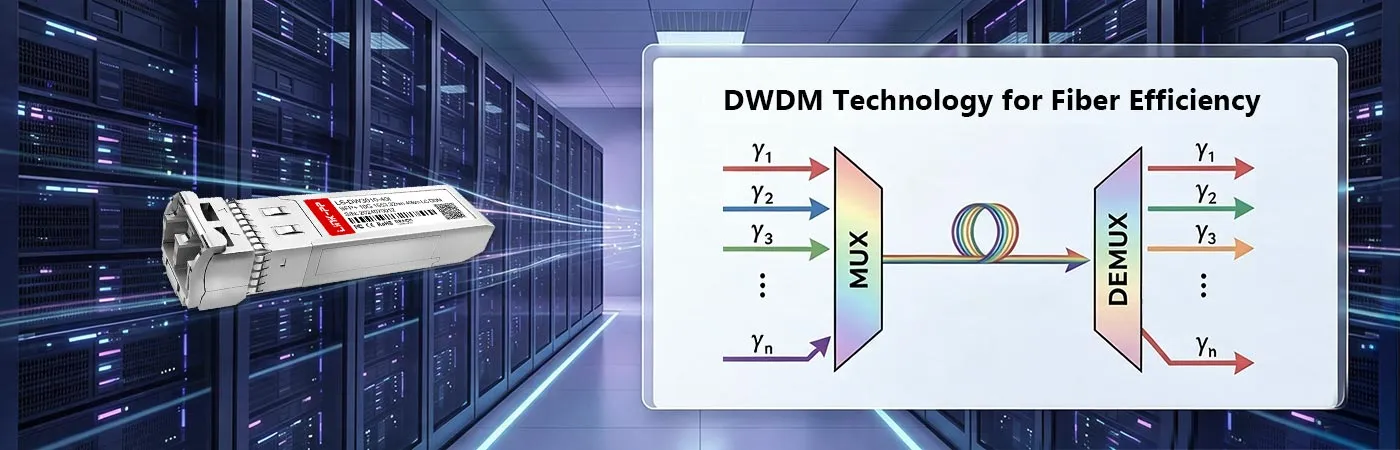

DW-SFP10G40-30-I is a 10G SFP+ DWDM transceiver operating on the 1553.32nm (C30) wavelength, built with duplex LC interfaces for 40km single-mode transmission and equipped with real-time Digital Optical Monitoring (DOM) to withstand hostile temperatures ranging from -40°C to +85°C.

Generic Part Number	DW-SFP10G40-30-I	Vendor Name	LINK-PP
Form Factor	SFP+	Max Data Rate	10.7Gbps
Wavelength	1553.32nm	Max Cable Distance	40km

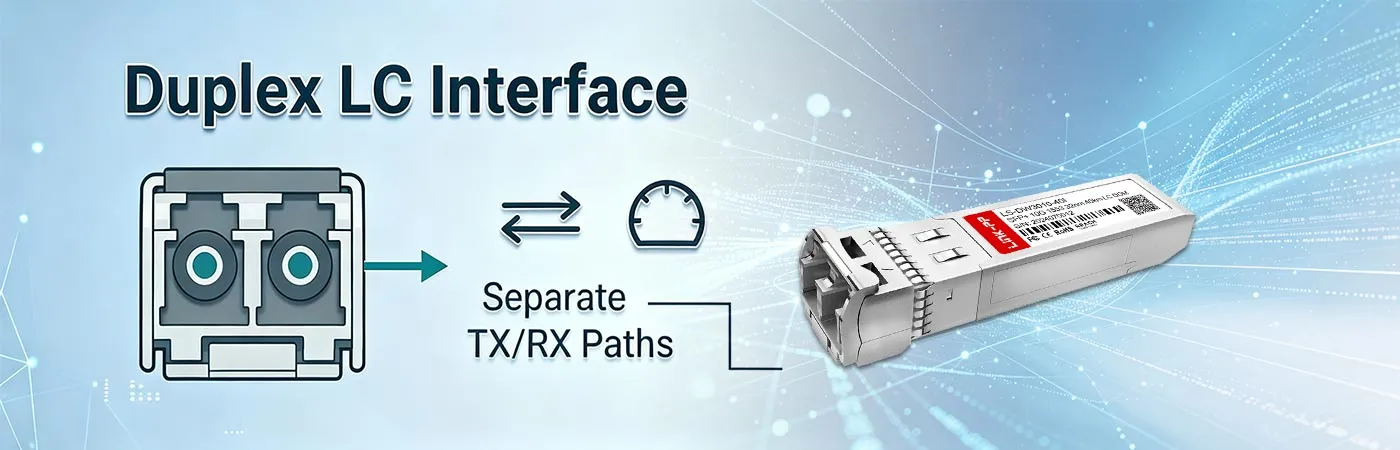

Connector	Duplex LC	Media	SMF
Transmitter Type	EML	Receiver Type	PIN
TX Power	-1 to +2dBm	RX Power	-16 to -1dBm
Receiver Sensitivity	-15.5dBm	DOM Support	Yes
Operating Temperature Range	-40 to 85°C	Protocols	SFP+ MSA Compliant, CPRI, eCPRI

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-DWxx10-40I.pdf

Questions & Answers
Ask a Question

No data

Q: How do we monitor internal thermal levels and voltage performance while the module is deployed at a remote site? By N***y on 2026-03-12

A: The integrated real-time digital diagnostic monitoring (DDM) lets you read live temperature, supply voltage, laser bias current, and optical power via your switch CLI. By admin on 2026-03-13
Q: Can I use this optical transceiver for a 10GBASE-ZR or 10GBASE-ZW Ethernet deployment? By Z***s on 2025-10-25

A: Yes, the LS-DW3010-40I module is fully compatible with both 10GBASE-ZR (10.3125Gbps) and 10GBASE-ZW (9.953Gbps) protocol standards. By admin on 2025-10-26
Q: We are connecting passive 100GHz DWDM multiplexers. Does this optic align with Channel 30? By J***n on 2025-04-04

A: Yes, it operates strictly on the 100GHz ITU C-band grid at C30 (1553.32nm) for seamless Mux/Demux channel matching. By admin on 2025-04-05
