Will integrating this C28 optic into an existing 100GHz grid cause spectral bleed into neighboring channels?

No. Strict ITU-T C28 wavelength locking keeps optical power tightly contained within its allocated channel slot, preserving clean sideband margins.

We are retrofitting older 10G aggregation hardware — will hot-swapping this LS-DW2810-40I DWDM SFP+ interrupt neighboring active ports?

No, the module features true hot-pluggable electrical isolation, letting you insert or swap it live without causing link flaps on adjacent ports.

Will the optical output wavelength drift off C28 (1554.94nm) when cold-starting at sub-zero temperatures?

No, internal laser temperature stabilization maintains tight 100GHz ITU channel accuracy even down to -40°C.

Can we use a standard duplex LC OS2 optical patch cord to jumper this module into our passive DWDM Mux panel?

Yes, it features a standard duplex LC receptacle that pairs directly with standard single-mode optical patch cables.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 10/25/40G/100G Transceiver Modules; 10G CWDM/DWDM SFP+; 224595

Click to open expanded view

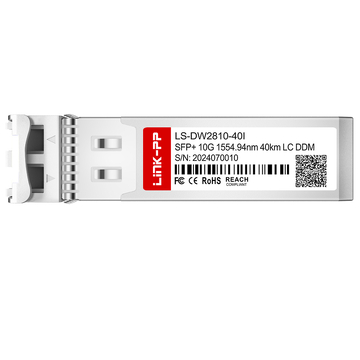

FS DW-SFP10G40-28-I Compatible LINK-PP C28 10G SFP+ DWDM 1554.94nm 40km Duplex LC DOM SMF Optical Transceiver Module (Industrial)

Name: FS DW-SFP10G40-28-I Compatible LINK-PP C28 10G SFP+ DWDM 1554.94nm 40km Duplex LC DOM SMF Optical Transceiver Module (Industrial)
Brand: LINK-PP
SKU: 224595
Price: 257.14 USD
Availability: InStock
Rating: 4.9 (33 reviews)

# 224595

Product: FS DW-SFP10G40-28-I Compatible LINK-PP C28 10G SFP+ DWDM 1554.94nm 40km Duplex LC DOM SMF Optical Transceiver Module (Industrial)
SKU: 224595
P/N: LS-DW2810-40I
Price: $ 299
Stock: 420 in Stock
Sold: 466
Product URL: https://www.l-p.com/products/495343.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

33 Reviews

4 Questions

Request Stock

466 Sold

$ 299

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 299

100

$ 284.05

1000

$ 275.08

3000

$ 266.11

6000

$ 257.14

Manufacture: LINK-PP

P/N: LS-DW2810-40I

Compatible:: Cisco; LINK-PP; Arista; Brocade; Ciena; Dell; Extreme; FS; Generic; H3C; HW; Juniper; MRV; Netgear

Wavelength:: C17; C18; C19; C20; C21; C22; C23; C24; C25; C26; C27; C28; C29; C30; C31; C32; C33; C34; C35; C36; C37; C38; C39; C40

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

FS DW-SFP10G40-28-I Compatible LINK-PP C28 10G SFP+ Specifications

DW-SFP10G40-28-I functions as an industrial-grade 10G SFP+ DWDM transceiver operating at a 1554.94nm (C28) wavelength, incorporating a duplex LC interface, real-time DOM diagnostics, and 40km SMF transmission support over an extended temperature range of -40 to +85°C.

FS Part Number	DW-SFP10G40-28-I	Vendor Name	LINK-PP
Form Factor	SFP+	Max Data Rate	10.7Gbps
Wavelength	1554.94nm	Max Cable Distance	40km
Connector	Duplex LC	Media	SMF
Transmitter Type	EML	Receiver Type	PIN
TX Power	-1 to +2dBm	RX Power	-16 to -1dBm
Receiver Sensitivity	-15.5dBm	DOM Support	Yes
Operating Temperature Range	-40 to 85°C	Protocols	SFP+ MSA Compliant, CPRI, eCPRI

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-DWxx10-40I.pdf

Questions & Answers
Ask a Question

No data

Q: Will integrating this C28 optic into an existing 100GHz grid cause spectral bleed into neighboring channels? By A***r on 2026-04-03

A: No. Strict ITU-T C28 wavelength locking keeps optical power tightly contained within its allocated channel slot, preserving clean sideband margins. By admin on 2026-04-04
Q: We are retrofitting older 10G aggregation hardware — will hot-swapping this LS-DW2810-40I DWDM SFP+ interrupt neighboring active ports? By D***d on 2026-01-22

A: No, the module features true hot-pluggable electrical isolation, letting you insert or swap it live without causing link flaps on adjacent ports. By admin on 2026-01-23
Q: Will the optical output wavelength drift off C28 (1554.94nm) when cold-starting at sub-zero temperatures? By E***n on 2025-08-14

A: No, internal laser temperature stabilization maintains tight 100GHz ITU channel accuracy even down to -40°C. By admin on 2025-08-15
Q: Can we use a standard duplex LC OS2 optical patch cord to jumper this module into our passive DWDM Mux panel? By C***n on 2025-05-09

A: Yes, it features a standard duplex LC receptacle that pairs directly with standard single-mode optical patch cables. By admin on 2025-05-10
