Can I use this as an OEM-compatible optic in Cisco or Juniper equipment?

The product page lists Cisco and Juniper among the compatible platforms, along with Arista, Brocade, Ciena, Dell, Extreme, H3C, MRV, Netgear, FS, and generic systems. For a specific switch model, it is still best to verify the exact host compatibility before ordering.

Does it support CPRI and eCPRI as well as normal SFP+ networking applications?

Yes. The product specifications list SFP+ MSA compliance, CPRI, and eCPRI. The module supports up to 10.7Gbps and is designed for high-speed transmission over single-mode fiber.

Will this module work over standard single-mode fiber for a 40km link?

Yes. The LS-DW2110-40I is specified for up to 40km over SMF and uses a Duplex LC interface. Actual reach still depends on the fiber plant, optical loss, connectors, splices, and the DWDM system design.

What exactly is the C21 wavelength of this optic?

The module operates at 1560.60nm and is identified as DWDM C21. It is intended for use within a DWDM wavelength plan where the C21 channel is required.

Is the industrial temperature rating suitable for outdoor telecom cabinets?

Yes. The specified operating temperature is -40 to 85°C, making the industrial version suitable for applications with wider temperature variation, including remote and outdoor network cabinets. Actual deployment conditions should still be checked against the complete system requirements.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 10/25/40G/100G Transceiver Modules; 10G CWDM/DWDM SFP+; 224166

Click to open expanded view

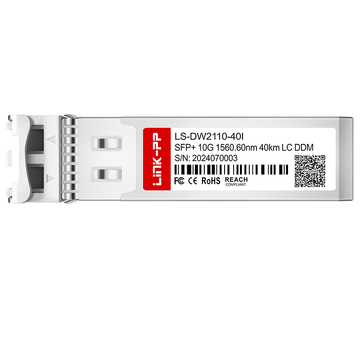

MRV SFP-10GDWER-21-I Compatible LINK-PP 10G SFP+ DWDM C21 1560.60nm 40km DOM Duplex LC SMF Optical Transceiver Module (Industrial)

Name: MRV SFP-10GDWER-21-I Compatible LINK-PP 10G SFP+ DWDM C21 1560.60nm 40km DOM Duplex LC SMF Optical Transceiver Module (Industrial)
Brand: LINK-PP
SKU: 224166
Price: 257.14 USD
Availability: InStock
Rating: 5 (33 reviews)

# 224166

Product: MRV SFP-10GDWER-21-I Compatible LINK-PP 10G SFP+ DWDM C21 1560.60nm 40km DOM Duplex LC SMF Optical Transceiver Module (Industrial)
SKU: 224166
P/N: LS-DW2110-40I
Price: $ 299
Stock: 277 in Stock
Sold: 316
Product URL: https://www.l-p.com/products/495290.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

33 Reviews

5 Questions

Request Stock

316 Sold

$ 299

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 299

100

$ 284.05

1000

$ 275.08

3000

$ 266.11

6000

$ 257.14

Manufacture: LINK-PP

P/N: LS-DW2110-40I

Compatible:: Cisco; LINK-PP; Arista; Brocade; Ciena; Dell; Extreme; FS; Generic; H3C; Juniper; MRV; Netgear

Wavelength:: C17; C18; C19; C20; C21; C22; C23; C24; C25; C26; C27; C28; C29; C30; C31; C32; C33; C34; C35; C36; C37; C38; C39; C40

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

MRV SFP-10GDWER-21-I Compatible LINK-PP 10G SFP+ Specifications

The MRV SFP-10GDWER-21-I Compatible LINK-PP 10G SFP+ module provides high-speed data transmission up to 10.7Gbps over single-mode fiber (SMF). It supports communication distances of up to 40km and operates at an exact DWDM wavelength of 1560.60nm for reliable, stable performance.

MRV Part Number	SFP-10GDWER-21-I	Vendor Name	LINK-PP
Form Factor	SFP+	Max Data Rate	10.7Gbps
Wavelength	1560.60nm	Max Cable Distance	40km
Connector	Duplex LC	Media	SMF
Transmitter Type	EML	Receiver Type	PIN
TX Power	-1 to +2dBm	RX Power	-16 to -1dBm
Receiver Sensitivity	<-15.5dBm	Receiver Overload	0.5dBm
Operating Temperature Range	-40 to 85°C	Protocols	SFP+ MSA Compliant, CPRI, eCPRI

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-DWxx10-40I.pdf

Questions & Answers
Ask a Question

No data

Q: Can I use this as an OEM-compatible optic in Cisco or Juniper equipment? By L***s on 2025-12-17

A: The product page lists Cisco and Juniper among the compatible platforms, along with Arista, Brocade, Ciena, Dell, Extreme, H3C, MRV, Netgear, FS, and generic systems. For a specific switch model, it is still best to verify the exact host compatibility before ordering. By admin on 2025-12-18
Q: Does it support CPRI and eCPRI as well as normal SFP+ networking applications? By S***r on 2025-07-26

A: Yes. The product specifications list SFP+ MSA compliance, CPRI, and eCPRI. The module supports up to 10.7Gbps and is designed for high-speed transmission over single-mode fiber. By admin on 2025-07-27
Q: Will this module work over standard single-mode fiber for a 40km link? By B***e on 2025-04-17

A: Yes. The LS-DW2110-40I is specified for up to 40km over SMF and uses a Duplex LC interface. Actual reach still depends on the fiber plant, optical loss, connectors, splices, and the DWDM system design. By admin on 2025-04-17
Q: What exactly is the C21 wavelength of this optic? By A***h on 2025-02-11

A: The module operates at 1560.60nm and is identified as DWDM C21. It is intended for use within a DWDM wavelength plan where the C21 channel is required. By admin on 2025-02-11
Q: Is the industrial temperature rating suitable for outdoor telecom cabinets? By C***n on 2024-05-27

A: Yes. The specified operating temperature is -40 to 85°C, making the industrial version suitable for applications with wider temperature variation, including remote and outdoor network cabinets. Actual deployment conditions should still be checked against the complete system requirements. By admin on 2024-05-28
