Can this 400G-FR4 module connect directly to a 400G-DR4 transceiver on the opposite end?

No, FR4 combines 4 wavelengths over 2 duplex LC fibers, whereas DR4 uses 8 parallel fibers with MPO connectors.

We operate a dense data center rack with airflow restricted at the back — what is the maximum operating temperature allowed for this module?

The operating temperature is rated from 0°C to 70°C, so your rack cooling should keep internal airflow within that range.

We need 400G links between buildings 1.5km apart. Will this optical module cover the distance?

Yes, it supports up to 2km transmission over single-mode fiber, so your 1.5km inter-building links will work fine.

How much heat does this module generate in a fully loaded 32-port 400G switch card?

Maximum power consumption is kept strictly under 10W per module, minimizing overall thermal dissipation across high-density switch faces.

Is this 400G QSFP112 transceiver fully compliant with 100G Lambda MSA standards?

Yes, it multiplexes four 100G PAM4 optical lanes in full accordance with 100G Lambda MSA specifications.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 200/400/800G Transceiver Modules; 400G QSFP-DD/OSFP/QSFP112; 220362

Click to open expanded view

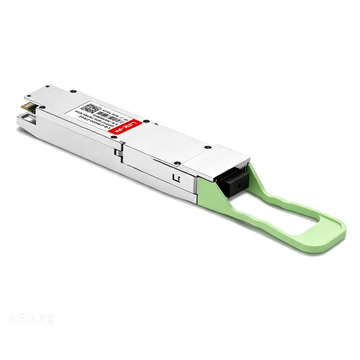

FS QSFP112-FR4-400G Compatible LINK-PP 400G QSFP112 1310nm 2km Duplex LC DDM SMF Optical Transceiver Module

Name: FS QSFP112-FR4-400G Compatible LINK-PP 400G QSFP112 1310nm 2km Duplex LC DDM SMF Optical Transceiver Module
Brand: LINK-PP
SKU: 220362
Price: 1224.96 USD
Availability: InStock
Rating: 4.9 (17 reviews)

# 220362

Product: FS QSFP112-FR4-400G Compatible LINK-PP 400G QSFP112 1310nm 2km Duplex LC DDM SMF Optical Transceiver Module
SKU: 220362
P/N: LQ-CW400-FR4C
Price: $ 1,392
Stock: 394 in Stock
Sold: 443
Product URL: https://www.l-p.com/products/495208.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

17 Reviews

5 Questions

Request Stock

443 Sold

$ 1,392

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 1,392

$ 1,350.24

100

$ 1,308.48

1000

$ 1,266.72

3000

$ 1,224.96

Manufacture: LINK-PP

P/N: LQ-CW400-FR4C

Compatible:: Cisco; LINK-PP; Arista; Broadcom; FS; Generic; H3C; Juniper; NVIDIA/Mellanox

Compatible P/N:: QDD-FR4-400G | 2km; QSFP112-FR4-400G | 2km; OSFP-LR4-400G | 10km; QDD-LR4-400G | 10km; QSFP112-LR4-400G | 10km

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

FS QSFP112-FR4-400G Compatible LINK-PP 400G QSFP112 Specifications

QSFP112-FR4-400G is an advanced 400G QSFP112 transceiver designed to operate as a 4 x 100G PAM4 optical module across CWDM wavelengths (1271nm, 1291nm, 1311nm, and 1331nm), delivering up to 2km of data transmission over single-mode fiber (SMF) under standard commercial conditions (0 to +70°C) while ensuring full compliance with the 100G Lambda MSA 400G-FR4 specification and integrating real-time digital diagnostic monitoring.

FS Part Number	QSFP112-FR4-400G	Vendor Name	LINK-PP
Form Factor	QSFP112	Max Data Rate	425Gbps (4x106.25Gbps)
Max Cable Distance	2km	Wavelength	1271nm, 1291nm, 1311nm, 1331nm
Connector	Duplex LC	Media	SMF
Transmitter Type	EML	Receiver Type	TIA
DDM/DOM	Supported	Operating Temperature Range	0°C to +70°C
Protocols	QSFP-112 MSA, CMIS Rev 4.0, IEEE 802.3cu, OIF-CEI-112G-VSR-PAM4	Warranty	5 Years

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LQ-CW400-FR4C.pdf

Questions & Answers
Ask a Question

No data

Q: Can this 400G-FR4 module connect directly to a 400G-DR4 transceiver on the opposite end? By J***n on 2026-04-20

A: No, FR4 combines 4 wavelengths over 2 duplex LC fibers, whereas DR4 uses 8 parallel fibers with MPO connectors. By admin on 2026-04-21
Q: We operate a dense data center rack with airflow restricted at the back — what is the maximum operating temperature allowed for this module? By M***r on 2026-02-22

A: The operating temperature is rated from 0°C to 70°C, so your rack cooling should keep internal airflow within that range. By admin on 2026-02-23
Q: We need 400G links between buildings 1.5km apart. Will this optical module cover the distance? By L***n on 2025-12-15

A: Yes, it supports up to 2km transmission over single-mode fiber, so your 1.5km inter-building links will work fine. By admin on 2025-12-16
Q: How much heat does this module generate in a fully loaded 32-port 400G switch card? By I***r on 2025-07-15

A: Maximum power consumption is kept strictly under 10W per module, minimizing overall thermal dissipation across high-density switch faces. By admin on 2025-07-16
Q: Is this 400G QSFP112 transceiver fully compliant with 100G Lambda MSA standards? By K***r on 2025-03-26

A: Yes, it multiplexes four 100G PAM4 optical lanes in full accordance with 100G Lambda MSA specifications. By admin on 2025-03-27

Customer Reviews
Write a Review

{{stardata.star}}

{{comment.count}} reviews
5 Stars

{{comment.star5}}%

4 Stars

{{comment.star4}}%

3 Stars

{{comment.star3}}%

2 Stars

{{comment.star2}}%

1 Star

{{comment.star1}}%

All Reviews ({{comment.star_num?comment.star_num:comment.count}})

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
Reviews with Pictures ( {{comment.pic_comment}} )
See All Reviews

No data

R***s

Sweden

Verified Purchase

5 .0

2026-06-22

Duplex LC saves so much patch panel space vs MPO.

60 Helpful vote Comments

C***s

Norway

Verified Purchase

5 .0

2026-05-25

Deployed a batch of these LQ-CW400-FR4C transceiver modules for 400G optics backhaul links between equipment shelters. The CWDM wavelengths align perfectly with our optical multiplexers. Operates reliably across variable cabinet temperatures.

95 Helpful vote Comments

C***e

New Zealand

Verified Purchase

5 .0

2026-04-22

Gets the full 2km over standard SMF with zero errors, perfect for our inter-building links. Duplex LC receptacle saved us from re-terminating all the MPO trunks.

85 Helpful vote Comments

I***l

Brazil

Verified Purchase

5 .0

2026-04-03

2km reach on SMF with DOM monitoring — clean install, zero errors.

53 Helpful vote Comments

L***s

Republic of Korea

Verified Purchase

5 .0

2026-03-30

DOM data reads spot-on in our NMS, great for proactive monitoring.

62 Helpful vote Comments

E***z

Philippines

Verified Purchase

5 .0

2026-02-27

Installed in our enterprise main distribution frame operating at standard 0°C to 70°C commercial temperatures. Case stays cool under full load and power consumption is surprisingly low for a 400G optical module.

117 Helpful vote Comments

G***s

Canada

Verified Purchase

5 .0

2026-01-22

Fast shipping, neat ESD packaging, smooth deployment overall!

41 Helpful vote Comments

J***k

Ireland

Verified Purchase

4 .0

2026-01-19

Delivery was 2 days late, but this 400G-FR4 module performs as advertised. Would order again despite the wait.

19 Helpful vote Comments

K***z

South Africa

Verified Purchase

5 .0

2026-01-04

The optical LC interface snaps in tightly and the pull tab feels durable. Being able to check real-time laser bias and temperature directly from the CLI makes maintenance effortless.

51 Helpful vote Comments

B***s

Turkey

Verified Purchase

4 .0

2025-12-08

Product arrived in good condition, just a bit delayed due to customs clearance. No issues with the transceiver itself – hits full 2km spec.

37 Helpful vote Comments

F***n

France

Verified Purchase

5 .0

2025-08-14

Perfect 4 x 100G PAM4 single-lambda performance. DDM readings are spot on.

50 Helpful vote Comments

P***n

Indonesia

Verified Purchase

5 .0

2025-08-04

400G-FR4 and 100G Lambda MSA compliant, so it works with both 400G and 100G per-lane modes. The 4x106. 25Gb/s 400GAUI-4 electrical interface syncs cleanly on every port we tested.

141 Helpful vote Comments

H***s

Australia

Verified Purchase

5 .0

2025-05-09

Blazing fast 400G over duplex LC, exactly what our campus backbone needed.

74 Helpful vote Comments

V***s

Singapore

Verified Purchase

5 .0

2025-04-01

Was slightly anxious about non-OEM optics on our core switch fleet, but this QSFP112 module was detected right away. RX power levels stay right in the optimal range. Will definitely order more for phase two!

61 Helpful vote Comments

A***n

Malaysia

Verified Purchase

5 .0

2025-03-24

Transitioning our core backbone from 100G to 400G using this QSFP112 FR4 transceiver module saved us substantial capital compared to tier-1 vendor list prices. Plugged in, recognized, working great!

118 Helpful vote Comments

N***z

Netherlands

Verified Purchase

5 .0

2025-02-11

CWDM EML transmitter is stable, no wavelength drift after weeks of load.

75 Helpful vote Comments

D***n

Austria

Verified Purchase

5 .0

2025-01-08

We evaluated this 400G QSFP112 FR4 transceiver for our data center spine-leaf upgrade over 1.5km OS2 single-mode fiber. The module utilizes 4 x 100G PAM4 modulation centered around the CWDM wavelength. Optical spectrum analysis verified clean channel separation with negligible crosstalk. Internal DOM telemetry provides real-time tracking for operating temperature, supply voltage, laser bias current, and optical launch/receive power. After a 48-hour continuous line-rate soak test, zero uncorrectable FEC errors were registered. A top-tier optical solution for enterprise architectures.

132 Helpful vote Comments
