What data rate does this module support?

It supports up to 16Gbps for Fibre Channel transmission.

Will this module work with my switch or storage device?

It works with most devices supporting 16G Fibre Channel SFP+ modules.

Is this module backward compatible with 8G or 4G Fibre Channel?

Yes, it auto‑negotiates to 8G and 4G Fibre Channel speeds.

Does the module require a specific cable type?

Use duplex LC/UPC OM3 multimode fiber; OM2 also works but the transmission distance is limited to 35m.

Is the LS-MM8516-S1C backwards compatible if we connect it to older 8G or 4G storage arrays?

Yes, it is fully backwards compatible and seamlessly steps down to operate at 8.5Gbps or 4.25Gbps speeds for legacy storage connections.

If we hot-plug the LS-MM8516-S1C into an active storage director during maintenance, will it disrupt adjacent ports?

No, it fully supports MSA hot-swapping, allowing you to insert or remove modules live without rebooting or affecting neighboring ports.

Will the LS-MM8516-S1C module work over our existing legacy OM2 multi-mode fiber infrastructure?

Yes, this 16G SFP+ module supports OM2 multi-mode fiber up to 35m, though we recommend OM3 multi-mode fiber for full 100m reach at 16G speeds.

Can we monitor optical Rx/Tx power levels directly through our SNMP monitoring tools?

Yes, built-in SFF-8472 DOM/DDM telemetry exposes real-time Tx/Rx power, temperature, and voltage data to your management software.

Can the LS-MM8516-S1C module handle hot-aisle containment zones where switch temperatures reach 55°C?

Yes, this LS-MM8516-S1C 16G SFP+ module operates reliably up to 70°C (158°F) with low power consumption.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 10/25/40G/100G Transceiver Modules; 10G SFP+; 218280

Click to open expanded view

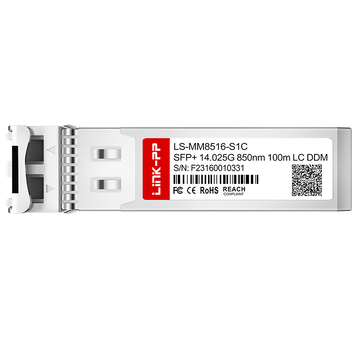

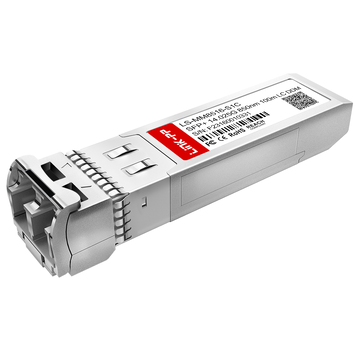

Avago AFBR-57F5xMZ Compatible LINK-PP 16G SFP+ Fibre Channel 850nm 100m Duplex LC/UPC DOM MMF Optical Transceiver Module

Name: Avago AFBR-57F5xMZ Compatible LINK-PP 16G SFP+ Fibre Channel 850nm 100m Duplex LC/UPC DOM MMF Optical Transceiver Module
Brand: LINK-PP
SKU: 218280
Price: 54.18 USD
Availability: InStock
Rating: 4.8 (12 reviews)

# 218280

Product: Avago AFBR-57F5xMZ Compatible LINK-PP 16G SFP+ Fibre Channel 850nm 100m Duplex LC/UPC DOM MMF Optical Transceiver Module
SKU: 218280
P/N: LS-MM8516-S1C
Price: $ 63
Stock: 149 in Stock
Sold: 2.1K
Product URL: https://www.l-p.com/products/494415.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

12 Reviews

5 Questions

Request Stock

2.1K Sold

$ 63

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 63

100

$ 59.85

1000

$ 57.96

3000

$ 56.07

6000

$ 54.18

Manufacture: LINK-PP

P/N: LS-MM8516-S1C

Compatible:: Cisco; LINK-PP; Avago; Brocade; Dell; H3C; HPE; IBM; Intel; Juniper

Compatible P/N:: AFBR-57F5xMZ | 100m

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

Avago AFBR-57F5xMZ Compatible LINK-PP 16G SFP+ Specifications

AFBR-57F5xMZ conforms to 16G Fibre Channel standards as an SFP+ optical transceiver, operating at an 850nm wavelength with a maximum reach of 100m over OM3 multi-mode fiber, utilizing a duplex LC/UPC interface and incorporating Digital Optical Monitoring (DOM) to provide real-time measurements of temperature, voltage, bias current, and optical power levels.

Avago Part Number	AFBR-57F5xMZ	Vendor Name	LINK-PP
Form Factor	SFP+	Max Data Rate	14.025Gbps
Wavelength	850nm	Max Cable Distance	100m@OM3
Connector	Duplex LC	Media	MMF
Transmitter Type	VCSEL	Receiver Type	PIN
TX Power	-7.8 to -0.5dBm	RX Power	-16 to -0.5dBm
Operating Temperature Range	0 to 70°C	Receiver Sensitivity	< -10.5dBm
DOM Support	Yes	Protocols	FC-PI-5, SFF-8432, SFF-8472, SFF-8431

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-MM8516-S1C.pdf

Questions & Answers
Ask a Question

No data

Q: Is the LS-MM8516-S1C backwards compatible if we connect it to older 8G or 4G storage arrays? By N***h on 2026-05-18

A: Yes, it is fully backwards compatible and seamlessly steps down to operate at 8.5Gbps or 4.25Gbps speeds for legacy storage connections. By admin on 2026-05-19
Q: If we hot-plug the LS-MM8516-S1C into an active storage director during maintenance, will it disrupt adjacent ports? By C***l on 2026-03-02

A: No, it fully supports MSA hot-swapping, allowing you to insert or remove modules live without rebooting or affecting neighboring ports. By admin on 2026-03-03
Q: Will the LS-MM8516-S1C module work over our existing legacy OM2 multi-mode fiber infrastructure? By J***e on 2025-11-13

A: Yes, this 16G SFP+ module supports OM2 multi-mode fiber up to 35m, though we recommend OM3 multi-mode fiber for full 100m reach at 16G speeds. By admin on 2025-11-14
Q: Can we monitor optical Rx/Tx power levels directly through our SNMP monitoring tools? By A***n on 2025-08-08

A: Yes, built-in SFF-8472 DOM/DDM telemetry exposes real-time Tx/Rx power, temperature, and voltage data to your management software. By admin on 2025-08-09
Q: Can the LS-MM8516-S1C module handle hot-aisle containment zones where switch temperatures reach 55°C? By E***c on 2025-01-26

A: Yes, this LS-MM8516-S1C 16G SFP+ module operates reliably up to 70°C (158°F) with low power consumption. By admin on 2025-01-27

Customer Reviews
Write a Review

{{stardata.star}}

{{comment.count}} reviews
5 Stars

{{comment.star5}}%

4 Stars

{{comment.star4}}%

3 Stars

{{comment.star3}}%

2 Stars

{{comment.star2}}%

1 Star

{{comment.star1}}%

All Reviews ({{comment.star_num?comment.star_num:comment.count}})

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
Reviews with Pictures ( {{comment.pic_comment}} )
See All Reviews

No data

O***s

Republic of Korea

Verified Purchase

5 .0

2026-05-04

Excellent VCSEL laser stability. Tested Tx optical output power across all 16 modules, consistently hovering around -2.3 dBm. Excellent quality control for third-party 16G SFP+ optical modules!

89 Helpful vote Comments

C***s

India

Verified Purchase

5 .0

2026-03-29

These 16G Fibre Channel SFP+ modules were introduced during a SAN upgrade project, replacing legacy optics. The transition was seamless, with the modules supporting both 16G and backward-compatible link speeds. Signal stability over OM3 fiber remained strong, and no link interruptions were observed during testing. The duplex LC interface made installation straightforward in dense rack environments. DOM functionality allowed us to monitor link health efficiently across multiple connections.

102 Helpful vote Comments

J***r

Austria

Verified Purchase

4 .0

2026-01-30

We are satisfied with the performance of this 850nm SFP+ module over OM4 fiber, as it delivers consistent connectivity and no packet loss. The only drawback was that the packaging felt a bit minimal for sensitive optical components. While there was no actual damage, better cushioning would add confidence during shipping. Technically, the module meets all expectations.

28 Helpful vote Comments

S***t

United States

Verified Purchase

5 .0

2026-01-08

Perfect fit for upgrading legacy 8G FC links to 16G.

47 Helpful vote Comments

A***r

Mexico

Verified Purchase

4 .0

2025-12-05

The LS-MM8516-S1C module itself performs very well in our 16G Fibre Channel setup, with stable links and accurate DOM readings. However, the outer shipping box arrived slightly damaged, which caused some initial concern. Fortunately, the transceiver inside was properly protected and worked without any issues after installation. Overall, the product quality is solid, but packaging could be improved for better transit protection.

30 Helpful vote Comments

O***s

United Kingdom

Verified Purchase

5 .0

2025-11-03

Works as expected in our Fibre Channel switch stack.

42 Helpful vote Comments

M***r

Brazil

Verified Purchase

5 .0

2025-09-09

Used for a high-throughput 16G FC storage connection between our storage arrays and host servers. Immediate link status green. Zero packet drops during stress testing.

65 Helpful vote Comments

L***d

Germany

Verified Purchase

5 .0

2025-08-21

No CRC errors or link flaps after weeks of use.

33 Helpful vote Comments

L***e

Australia

Verified Purchase

5 .0

2025-06-27

Deployed in our hypervisor cluster connecting to enterprise flash storage. Full 14.025 Gbps throughput verified during live virtual machine migrations. Very stable link budget over LC duplex MMF.

91 Helpful vote Comments

H***r

Norway

Verified Purchase

5 .0

2025-05-11

We use these 16G SFP+ optical modules in our indoor cabinet distribution points for FC storage routing. Low power consumption helps keep enclosure thermal loads managed efficiently.

36 Helpful vote Comments

E***n

Canada

Verified Purchase

5 .0

2025-02-19

Used these optical modules to link our primary SAN storage array to our core fabric switches over 65m of OM3 patch cables. The link auto-negotiated to 16G Fibre Channel right away. Zero CRC errors recorded over 3 weeks of heavy nightly backup jobs.

88 Helpful vote Comments

B***r

Spain

Verified Purchase

5 .0

2025-01-23

We deployed a batch of LS-MM8516-S1C 16G SFP+ Fibre Channel modules across a storage network running over OM4 multi-mode fiber. The 850nm wavelength performed consistently for short-reach links up to 100m, with stable optical output and clean signal integrity. DOM monitoring provided accurate real-time readings for temperature and optical power, which helped with ongoing link validation. The modules integrated smoothly into our environment without requiring adjustments. Overall, performance has been reliable under continuous enterprise workloads.

154 Helpful vote Comments
