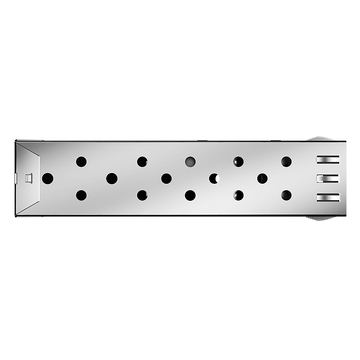

Amphenol UE78-B1126-00321 Compatible LINK-PP LP21A602001 SFP 2x1 Cage&Connector With EMI Spring Finger

Product summary

Product
Amphenol UE78-B1126-00321 Compatible LINK-PP LP21A602001 SFP 2x1 Cage&Connector With EMI Spring Finger
SKU
203836
P/N
LP21A602001
Price
$ 3.38
Stock
1300 in Stock
Sold
3.7K
Unit price $ 3.38
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP21A602001SKU: 203836

Compatible with Amphenol UE78-B1126-00321Datasheet3D ModelAll downloads

Compatible P/N:
UE78-B1126-00321
Volume pricing Online tiers · larger qty or custom price on request
$ 3.380
1–99 pcs
$ 2.817
100–999 pcs
$ 2.600
1,000–4,999 pcs
$ 2.294
5,000–9,999 pcs
$ 2.173
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1300 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 3.38

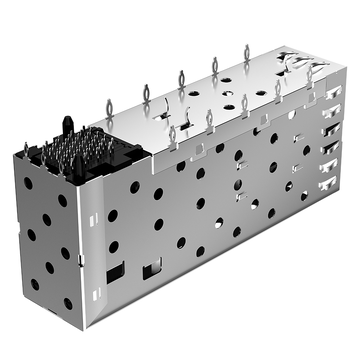

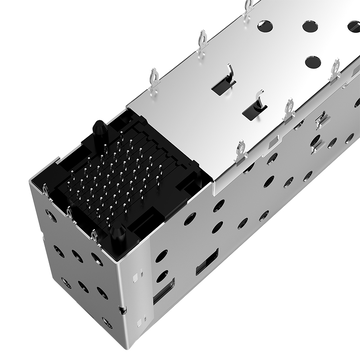

Amphenol UE78-B1126-00321 Compatible LINK-PP LP21A602001 2x1 SFP Cage Connector With EMI Spring Finger

link-pp Part Number LP21A602001 Amphenol Part Number UE78-B1126-00321
Product Type Receptacle with Cage, Ganged (2x1) Form Factor SFP
Data Rate (Max)(Gb/s) 4 Gb/s Mounting Type Through Hole, Right Angle
Termination Press-Fit Features EMI Shielded
Port Matrix Configuration 2x1 Ports Number of Ports 2
Operating Temperature Range -40 – +85°C Included Lightpipe Without
Length (Inches/mm) 2.490/63.25 Width (Inches/mm) 0.551/14.00
Height (Inches/mm) 1.004/25.50 PCB Thickness (Recommended) -

Features



LINK-PP LP21A602001 is a 2x1 ganged SFP cage + receptacle assembly with EMI spring fingers - Amphenol UE78-B1126-00321 compatible - built for press-fit, through-hole right-angle host boards where two SFP ports sit side by side.

2x1 ganged SFP receptacle with integrated cage - compact dual-port front panel
Press-fit termination, through-hole right-angle mount for standard host PCB layouts
EMI spring finger shielding to help contain emissions at the module-bezel interface
Without lightpipe - clean cage profile when panel LEDs are handled separately
SFP MSA mechanical form-factor class, supporting SFP modules up to 4 Gb/s.
Operating range -40 to +85°C; outline approx. 63.25 x 14.00 x 25.50 mm (LxWxH)
Primary cross: Amphenol UE78-B1126-00321 - reduce second-source risk with a clear drop-in target

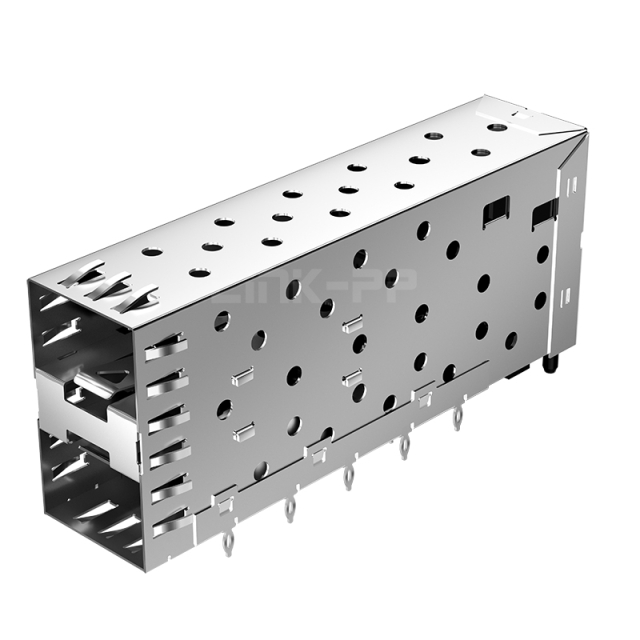

LINK-PP LP21A602001 2x1 SFP cage connector with EMI spring finger

Real product photo / LP21A602001


Compatibility Assurance



Buying a cage alternate should feel predictable. LP21A602001 is positioned as a mechanical / interconnect alternate to Amphenol UE78-B1126-00321 for 2x1 SFP press-fit, right-angle host designs - so you can second-source with a clear OEM target P/N.

Primary compatible P/N (publish)

Amphenol UE78-B1126-00321 - 2x1 SFP cage + receptacle class, EMI spring finger, without lightpipe
Form-factor fit: SFP MSA mechanical class - accepts standard SFP / SFP-family pluggable modules that mate to a 2x1 ganged cage (always verify latch, EMI gasket, and bezel stack-up on your host).
What we match: port matrix (2x1), press-fit / through-hole R/A mounting intent, EMI spring-finger style shielding, no lightpipe - aligned to the Amphenol target above.
Data rate: The specified 4 Gb/s maximum data rate refers to the maximum-rate module supported by LP21A602001, rather than a link rate generated by the cage itself. The actual link rate depends on the plugged module and host system.
Drawing first: confirm pin map, recommended PCB thickness, plating, and board-guide geometry on the LP21A602001 product drawing before release to production.

Applications



Designed for host boards that need two adjacent SFP ports in a single ganged cage - switching, access, industrial, and embedded networking where press-fit assembly and EMI control matter.

Enterprise & campus switches Dual SFP uplinks or access ports on the same faceplate row without separate single cages.
Industrial / rugged Ethernet -40 to +85°C operating window for cabinets and edge devices that see wider ambient swings.
Media converters & NICs Compact 2x1 front-end when the design needs two pluggable optics or DAC/AOC ports.
OEM second-source builds Amphenol UE78-B1126-00321-oriented BOMs looking for a LINK-PP alternate with EMI spring fingers and no lightpipe.

Application fit depends on your bezel, PCB thickness, and module mix - use the product drawing for design-in, then validate with your target SFP modules.


EMI & Design-In Notes



LP21A602001 includes EMI spring fingers on the cage to help maintain a conductive path between the plugged module and the host bezel / chassis ground. Good EMI results still depend on host layout - treat the cage as one part of the shielding system.

Bezel & host layout checklist

1 Bezel cutout & stack-up - align opening, gasket, and spring-finger contact so fingers compress evenly on both ports; avoid paint or thick coatings on mating surfaces.
2 Chassis / PCB ground - provide a low-impedance return from cage ground features into the ground plane; follow press-fit via and keep-out guidance on the drawing.
3 Module EMI skirts - use MSA-compliant SFP modules with intact EMI springs; damaged module skirts defeat the cage design.
4 Adjacent ports - for 2x1 gangs, keep port-to-port metal continuity and avoid plastic gaps that break the shield wall between cages.
5 Lightpipe choice - this SKU is without lightpipe; if you need panel LED pipes, evaluate family options (e.g. LP21AC01201) rather than modifying this cage.

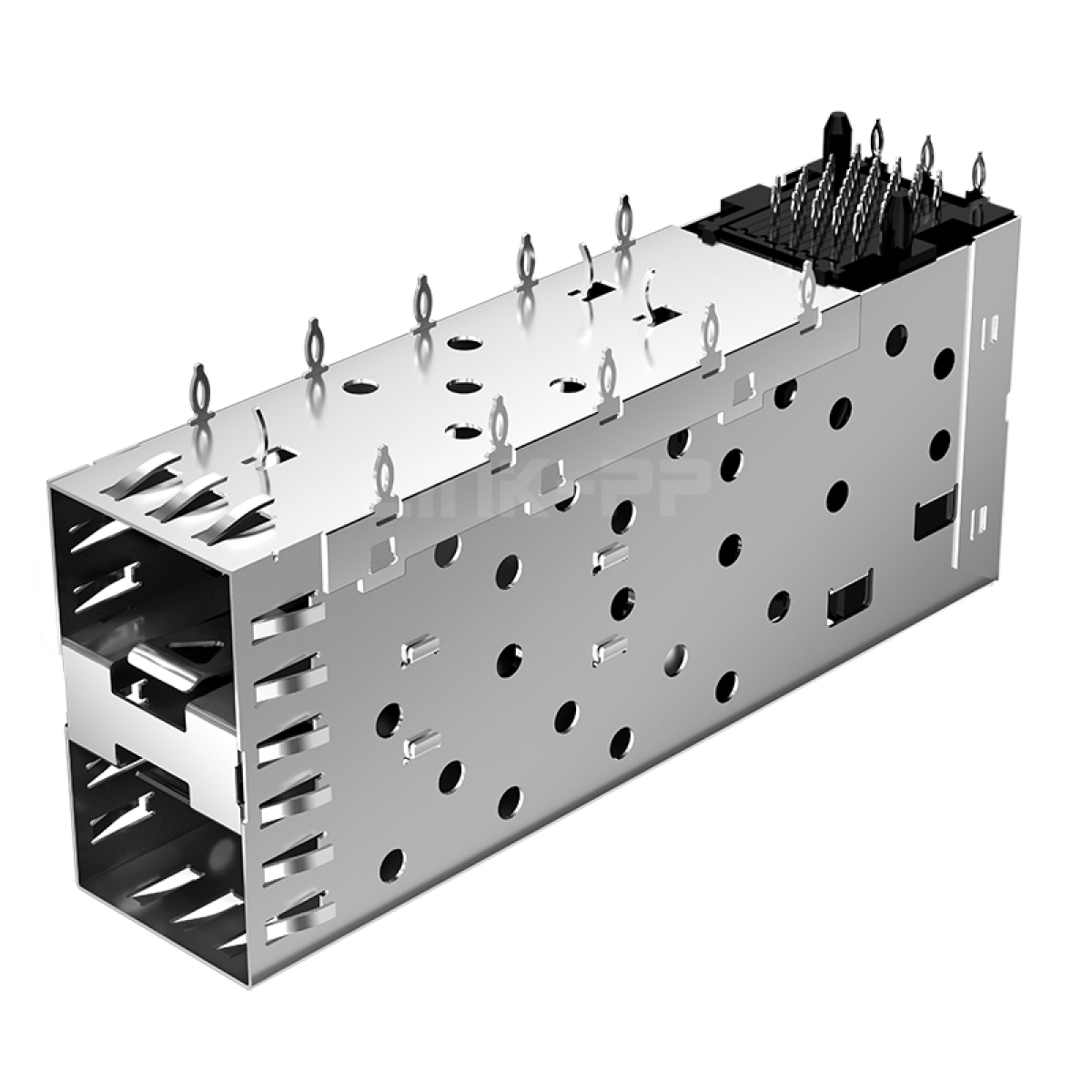

LP21A602001 SFP 2x1 cage - EMI spring finger detail view

Authoritative dimensions & pin map: use the LINK-PP drawing - do not guess PCB thickness, plating, or press-fit depths from marketing copy alone.

Download LP21A602001 Drawing (PDF)

Outline on product page: L 63.25 x W 14.00 x H 25.50 mm. Recommended PCB thickness - confirm from drawing / engineering.


Buy with Confidence



LP21A602001 is stocked for production and prototype buys - clear Amphenol cross, real product photos, and the same LINK-PP commercial terms you already use on l-p.com.

1300+
Units in stock (check live page)
5-Year
Industry-leading warranty
15-Day
Returns & exchange window
Free
Shipping (per site policy)
Warranty: 5-year coverage aligned with LINK-PP product warranty policy on l-p.com.
Returns / exchange: 15-day returns and 15-day exchange for eligible orders - see the live return policy for conditions.
Shipping: Free shipping offers as shown on the product page (e.g. FedEx to the United States; ETA typically 3-10 days - confirm at checkout).
Wholesale: For volume pricing beyond the listed unit price (~US$4.7), contact sales - samples available for design-in evaluation.
Documents: Product drawing PDF available on the detail page before you commit the PCB.

Stock, price, and shipping promotions can change - always verify the live product page at publish and order time. Contact: sales@l-p.com / +86-752-3386717


Connectivity Solutions



Build a complete SFP path: Module -> LP21A602001 -> Host PCB. Click the product links for the live LINK-PP page (prices snapshot - re-check at order).

SFP Optical Module

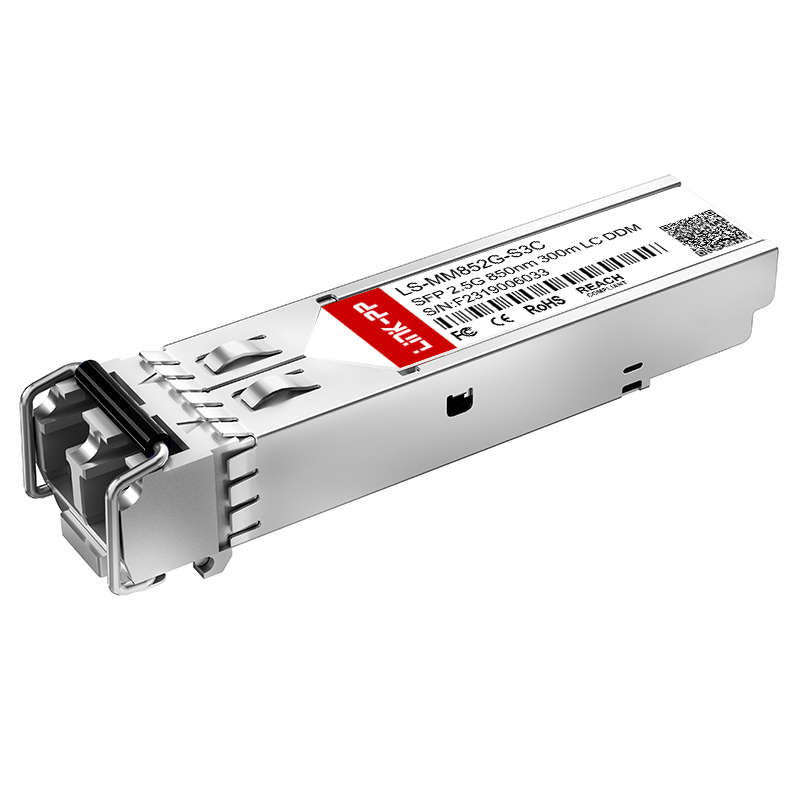

LS-MM852G-S3C / 2.5G SFP

LINK-PP LS-MM852G-S3C 2.5G SFP optical module

Example companion: 2.5G SFP within the published 4 Gb/s maximum data rate.

View LS-MM852G-S3C >

2x1 SFP Cage

LP21A602001 / EMI Springs / No lightpipe

LINK-PP LP21A602001 2x1 SFP cage with EMI spring finger

Press-fit / through-hole right-angle / EMI spring finger / without lightpipe.

View LP21A602001 >

Host PCB

Press-fit through-hole right-angle

Customer PCB Press-fit through-hole right-angle
MAC / PHY Host controller / SerDes sets link rate

LP21A602001 provides the mechanical fit and EMI path into the host board; the Customer PCB and MAC / PHY determine system implementation and link behavior.

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP21A602001.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The frame is rated for 4 Gb/s per mouth, which covers the modules we buy. We run gigabit optics in it now and the cage has room for a faster part later. Sixteen boxes are out with no complaint. by LINK-PP Technical Support
  • A:
    The fingers press on the inside of the panel and bond the cage to it. Our back plate is 1.5 mm steel and the contact stayed tight there. Without fingers we would have needed a separate clip. by LINK-PP Technical Support
  • A:
    Each chassis we build takes one uplink module and one spare. Putting both mouths on a single frame meant one opening in the back panel. A second frame would have cost us another cutout and another screw pair. by LINK-PP Technical Support

Customer Reviews

  • 5

    21 Reviews

  • 5 Stars
    95%
    4 Stars
    5%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (21)
No data
T***e
Verified Purchase
4.0
2026-06-24
Two cages arrived with a bent pin, though the rest of the carton was clean. Press-fit means no reflow step, but the holes have to be at the drill on the drawing.
M***m
Verified Purchase
5.0
2025-07-01
LP21A602001 is the ganged cage, two SFP openings in one press-fit frame. It holds the two port centres fixed, which is the reason we stopped stacking two single cages and shimming them on the line. The tails aligned with the pads first try.
R***n
Verified Purchase
5.0
2025-02-12
Running from -40 to +85 ℃, wide enough for outdoor boxes. No surprises once the box was open. :)
