LP14FC01030 qsfp28 1x4 cage assembly with heat sink emi spring finger

LP14FC01030 QSFP28 1x4 Cage Assembly With Heat Sink EMI Spring Finger

Product summary

Product
LP14FC01030 QSFP28 1x4 Cage Assembly With Heat Sink EMI Spring Finger
SKU
203560
P/N
LP14FC01030
Price
$ 12.90
Stock
88 in Stock
Sold
3.5K
Unit price $ 12.90
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP14FC01030SKU: 203560

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
Molex
LINK-PP
Compatible P/N:
LP14FC01030
Volume pricing Online tiers · larger qty or custom price on request
$ 12.900
1–99 pcs
$ 12.456
100–999 pcs
$ 11.914
1,000–4,999 pcs
$ 10.962
5,000–9,999 pcs
$ 10.067
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
88 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 12.90

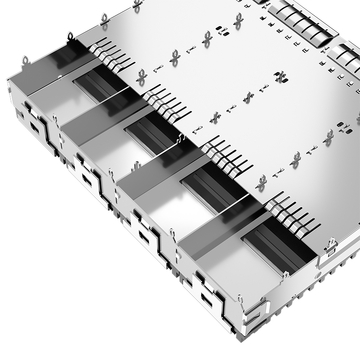

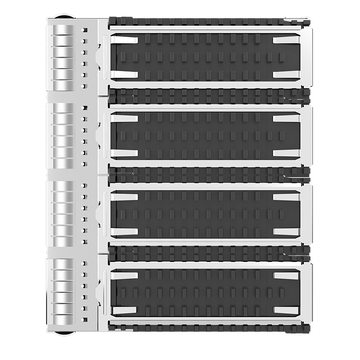

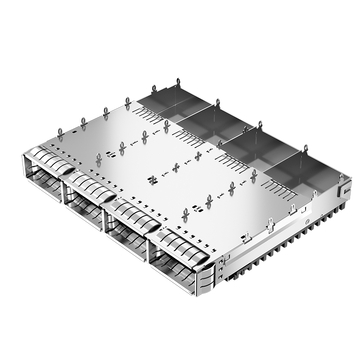

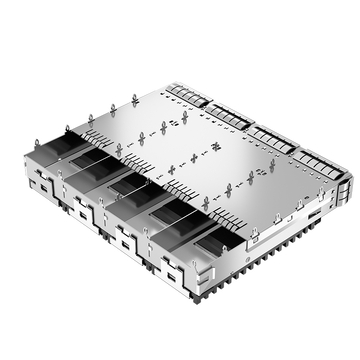

LINK-PP LP14FC01030 QSFP28 1x4 Cage Assembly With Heat Sink EMI Spring Finger

LINK-PP Part Number LP14FC01030 Part Status Active
Product Type Cage Assembly Form Factor QSFP28
Max Data Rate 100 Gbps Features EMI Shielded
Port Matrix Configuration 1×4 Number of Ports 4
Included Connector No Included Heat Sink Yes
Included Lightpipe No EMI Containment Feature Type Spring Fingers
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) - Recommended PCB Thickness (Inches/mm) 0.063/1.60 (MIN)
Length (Inches/mm) 2.410/61.21 (REF) Width (Inches/mm) 3.024/76.81 (REF)
Height (Inches/mm) 0.539/13.70 Cage Material Stainless Steel
Contact Plating None Cage Plating None
Operating Temperature Range -40 to +85°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP14FC01030.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Yes, that is a common use. One 400G QSFP-DD port on the spine splits into four 100G links, and this 1x4 cage holds the four leaf side legs neatly in 76.81mm. The alternative is four 1x1 cages, which takes more board and four press operations, and the cables foul the fan tray on most 1U chassis. by LINK-PP Technical Support
  • A:
    About 2.8kN across 76.81mm. Use a flat tool covering the full width and press at 0.4mm per second. On a 1.6mm board add two standoffs under the middle, otherwise it bows and the centre ports sit high. Never press on the heat sink fins, always on the cage body flange. by LINK-PP Technical Support
  • A:
    The sinks are low profile but the fin area is enough because the airflow path is short and direct. At 1.0 m/s and 40℃ inlet we measured module cases at 72℃ with 3.5W modules. The key is front to back airflow through the fins. With side flow you lose most of the benefit. At 45℃ ambient expect 78℃, which is close to the limit, so plan a duct. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    22 Reviews

  • 5 Stars
    91%
    4 Stars
    9%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (22)
No data
H***s
Netherlands
Verified Purchase
4.0
2026-11-16
Two of the 5 cages came with a fin bent on the sink, but all four ports worked perfectly and the sink sat level on the 400G board.
I***t
New Zealand
Verified Purchase
5.0
2026-10-31
We were glad LP14FC01030 came in a tray with every wide body flat.
S***s
United Arab Emirates
Verified Purchase
5.0
2026-10-14
Glad the inner and outer springs close the seam on both sides. :D
R***t
Sweden
Verified Purchase
5.0
2026-09-28
One press stroke seats all four ports, which is the whole point of a ganged cage. Our 2.4 mm board took the tails without a wobble, and the 76.81 mm body stayed square across the four openings, so the covers lined up on the first try.
R***d
Norway
Verified Purchase
5.0
2026-09-11
Handy 400G from one cage.
