molex 1000143250 compatible link-pp lp11fc01000e qsfp28 1x1 cage with emi spring finger

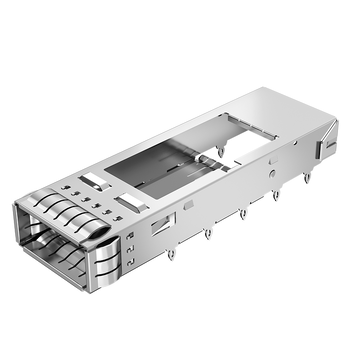

Molex 1000143250 Compatible LINK-PP LP11FC01000E QSFP28 1x1 Cage With EMI Spring Finger

Product summary

Product
Molex 1000143250 Compatible LINK-PP LP11FC01000E QSFP28 1x1 Cage With EMI Spring Finger
SKU
203558
P/N
LP11FC01000E
Price
$ 1.70
Stock
90 in Stock
Sold
1.9K
Unit price $ 1.70
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP11FC01000ESKU: 203558

Compatible with Molex 1000143250Datasheet3D ModelAll downloads

Compatible P/N:
1000143250
1000143252
Volume pricing Online tiers · larger qty or custom price on request
$ 1.700
1–99 pcs
$ 1.639
100–999 pcs
$ 1.568
1,000–4,999 pcs
$ 1.442
5,000–9,999 pcs
$ 1.325
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
90 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 1.70

Molex 1000143250 Compatible LINK-PP LP11FC01000E QSFP28 1x1 Cage With EMI Spring Finger

LINK-PP Part Number LP11FC01000E Molex Part Number 1000143250
Product Type Cage Form Factor QSFP28
Mounting Type Through Hole, Right Angle Termination Press-Fit
Port Matrix Configuration 1x1 Port Number of Ports 1
Features EMI Shielded PCB Mounting Style Through Hole - Solder
Included Lightpipe No EMI Containment Feature Type EMI Springs
Height (Inches/mm) 0.382/9.70 Length (Inches/mm) 2.398/60.92
Width (Inches/mm) 0.738/18.75 Operating Temperature Range -40 – 85°C

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP11FC01000E.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Do not size the land pattern from the specification table alone. The page carries two different board-mount descriptions for this cage, so work from the mechanical drawing of the exact part number instead. That drawing fixes the hole geometry, the fixing post positions and the 60.92mm body reach, which are the numbers the layout actually needs. Build one test panel and seat a module before committing to production. We can supply the drawing on request; quote the full LP11FC01000E code so the right revision is sent. by LINK-PP Technical Support
  • A:
    The comparison rows share the 1x1 frame and the EMI springs, and all list Lightpipe Options as Not Optional, so the mechanical envelope belongs to the same family. That does not make the suffixes drop-in: check the drawing revision and the spring detail before releasing a board, since contact force can differ. Our change control treats a suffix as a fresh approval even when the outline matches. Ask for the mechanical drawing of the exact part and compare the 18.75mm opening, the 60.92mm depth and the fixing posts. by LINK-PP Technical Support
  • A:
    No. That pair of lines means the 1x1 frame has no light guide and the comparison family offers no variant with one, so there is nothing to clip in after assembly. Plan the status indication on the host board instead: bring the LEDs to a small window in the bezel above the bay, or drive a front panel board with a short harness. Check the 9.70mm body height when you place that window, since the frame occupies the space directly behind the opening. by LINK-PP Technical Support
  • A:
    The EMI spring fingers need to wipe a conductive surface, so leave the landing bare or use a conductive finish; paint at the contact area will show up in an emissions scan. Allow roughly 0.3 to 0.5mm of deflection around the 18.75mm opening. Too little leaves a gap, too much can bend a finger out of shape. Check the bay sits flush after the board is fixed, since a tilted frame loads the springs unevenly. We suggest a pre-compliance scan with one module seated before tooling is signed off. by LINK-PP Technical Support
