LP11DC01000E qsfp+ 1x1 cage with emi springs finger
Click to open expanded view

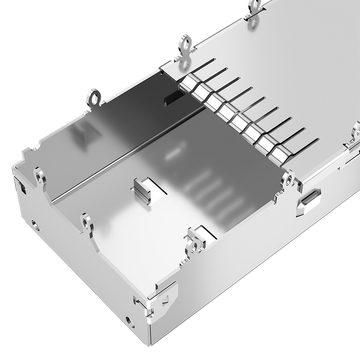

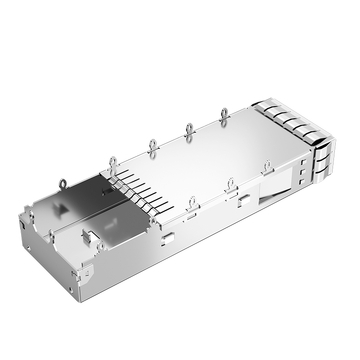

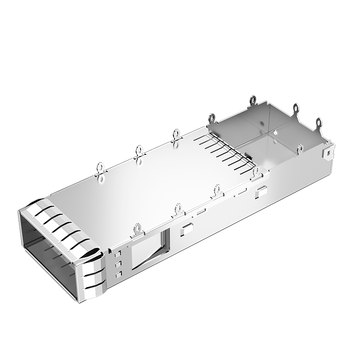

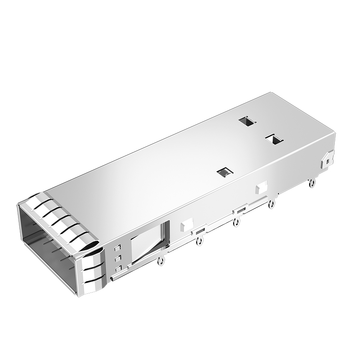

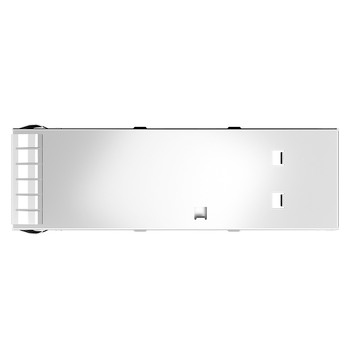

LP11DC01000E QSFP+ 1x1 Cage With EMI Springs Finger

Product summary

Product
LP11DC01000E QSFP+ 1x1 Cage With EMI Springs Finger
SKU
203248
P/N
LP11DC01000E
Price
$ 4.50
Stock
150 in Stock
Sold
2.9K
Unit price $ 4.50
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP11DC01000ESKU: 203248

LINK-PP originalDatasheetAll downloads

Compatible P/N:
LP11DC01000E
Volume pricing Online tiers · larger qty or custom price on request
$ 4.500
1–9 pcs
$ 4.275
10–99 pcs
$ 4.050
100–999 pcs
$ 3.825
1,000–2,499 pcs
$ 3.600
≥2,500 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
150 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 4.50

LINK-PP LP11DC01000E QSFP+ 1x1 Cage With EMI Springs Finger

LINK-PP Part Number LP11DC01000E Part Status Active
Product Type Cage Form Factor QSFP+
Max Data Rate 40 Gbps Features EMI Shielded
Port Matrix Configuration 1×1 Number of Ports 1
Included Connector No Included Heat Sink No
Included Lightpipe No EMI Containment Feature Type Spring Fingers
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) 0.087/2.20 Recommended PCB Thickness (Inches/mm) 0.059/1.50 (MIN)
Length (Inches/mm) 2.315/58.80 Width (Inches/mm) 0.738/18.75 (REF)
Height (Inches/mm) 0.384/9.75 Cage Material Copper Alloy
Contact Plating None Cage Plating None
Operating Temperature Range -40 to +85°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawinig LP11DC01000E.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Contact resistance on the cage springs starts around 0.4 ohm and stays under 1 ohm through 500 mate cycles in our lab test. Insertion loss is dominated by the connector and PCB, not the cage, so we quote the cage as a shield and mechanical retention part. If you need a number for a link budget, measure the assembled board with a VNA at 12.9GHz, we typically see under 0.6dB for the cage plus connector pair. by LINK-PP Technical Support
  • A:
    Mechanically yes, the QSFP28 module fits the same 1x1 opening and latches. Electrically the connector and PCB launch need to be good for 25G per lane, which is a board design question. The real limit is thermal. A 100G SR4 module dissipates around 3.5W in a cage designed for a 40G load, so expect case temperature 10 to 15℃ higher. If you plan to run 100G, use the heat sink version of this cage or add directed airflow of at least 1 m/s. by LINK-PP Technical Support
  • A:
    Mask a window where the springs land, 4mm by 10mm per side is enough, and keep the coating off that area. If masking is not possible, add a conductive gasket or a ground finger from the cage to a chassis screw with a star washer. Then verify with a milliohm meter from cage to chassis, target under 1 ohm. Powder coat is roughly 60 to 100 microns thick and will not conduct, so an unmasked spring is effectively floating. by LINK-PP Technical Support
  • A:
    It is measurable. Copper alloy has roughly three times the conductivity of stainless, so the shell itself shunts more of the 40G harmonics to chassis. It is also stiffer, which matters because the cage wall takes the load when a DAC latch is pulled sideways. The trade is weight and cost. For a 40G or 100G port near a sensitive radio we use copper alloy, for a low cost 1G cage stainless is enough. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    27 Reviews

  • 5 Stars
    93%
    4 Stars
    7%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (27)
No data
T***e
Malaysia
Verified Purchase
4.0
2026-11-16
One cage arrived with a scuffed shell, but the pins were straight. It pressed in on the bench and the springs bit the cutout clean on all four sides.
N***h
Italy
Verified Purchase
5.0
2026-10-17
One QSFP+ opening, no module, good.
E***y
Poland
Verified Purchase
5.0
2026-09-18
Press-fit on the QSFP+ cage, handy, no reflow step for it.
H***g
Egypt
Verified Purchase
5.0
2026-08-19
58.80 mm depth behind the panel, and the rail clears it, no drama. =)
A***e
United States
Verified Purchase
5.0
2026-07-21
The QSFP+ cage is 9.75 mm high against the 15 mm of an SFP+ cage, which is why the 40G port stacks above the 10G row without a new plate, and the internal springs ground the module shell while the external ones close the panel seam, which is the arrangement we use on the top row.
