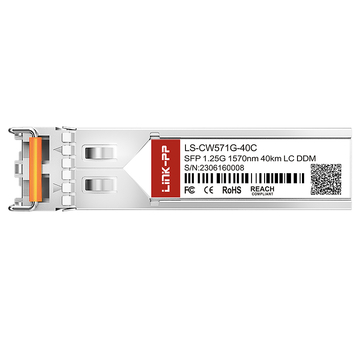

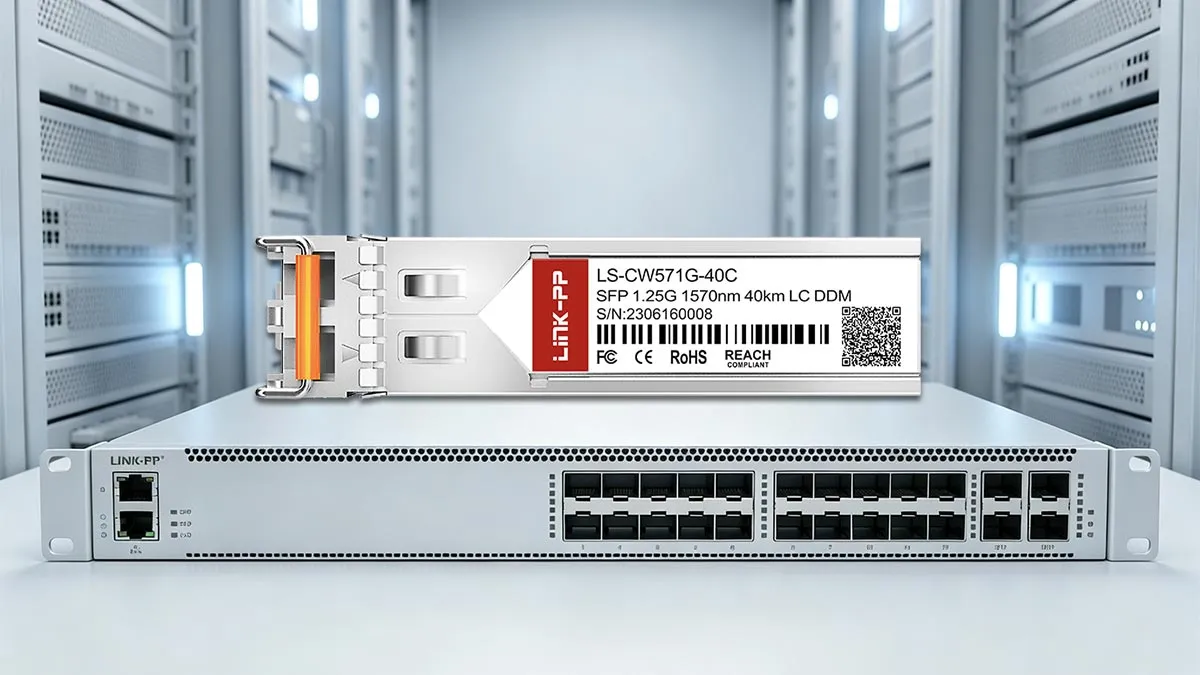

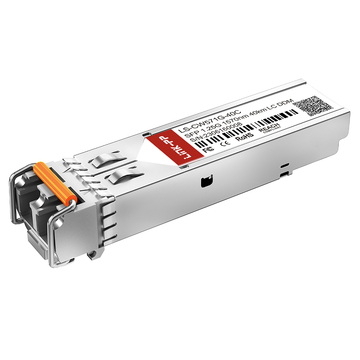

Alcatel-Lucent SFP-GIG-57CWD40 Compatible LINK-PP 1G SFP CWDM 1570nm 40km Duplex LC DDM SMF Optical Transceiver Module

# 224611

Product: Alcatel-Lucent SFP-GIG-57CWD40 Compatible LINK-PP 1G SFP CWDM 1570nm 40km Duplex LC DDM SMF Optical Transceiver Module
SKU: 224611
P/N: LS-CW571G-40C
Price: $ 52
Stock: 224 in Stock
Sold: 331
Product URL: https://www.l-p.com/products/492408.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

0 Reviews

0 Questions

Request Stock

331 Sold

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 49.4

$ 47.84

$ 46.28

$ 44.72

Manufacture: LINK-PP

P/N: LS-CW571G-40C

Compatible:: Cisco; LINK-PP; Alcatel-Lucent; Arista; Avaya; Brocade; Dell; Extreme; H3C; HPE; HW; Juniper; Mikrotik; Netgear

Wavelength:: 1270nm; 1290nm; 1310nm; 1330nm; 1350nm; 1370nm; 1390nm; 1410nm; 1430nm; 1450nm; 1470nm; 1490nm; 1510nm; 1530nm; 1550nm; 1570nm; 1590nm; 1610nm

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

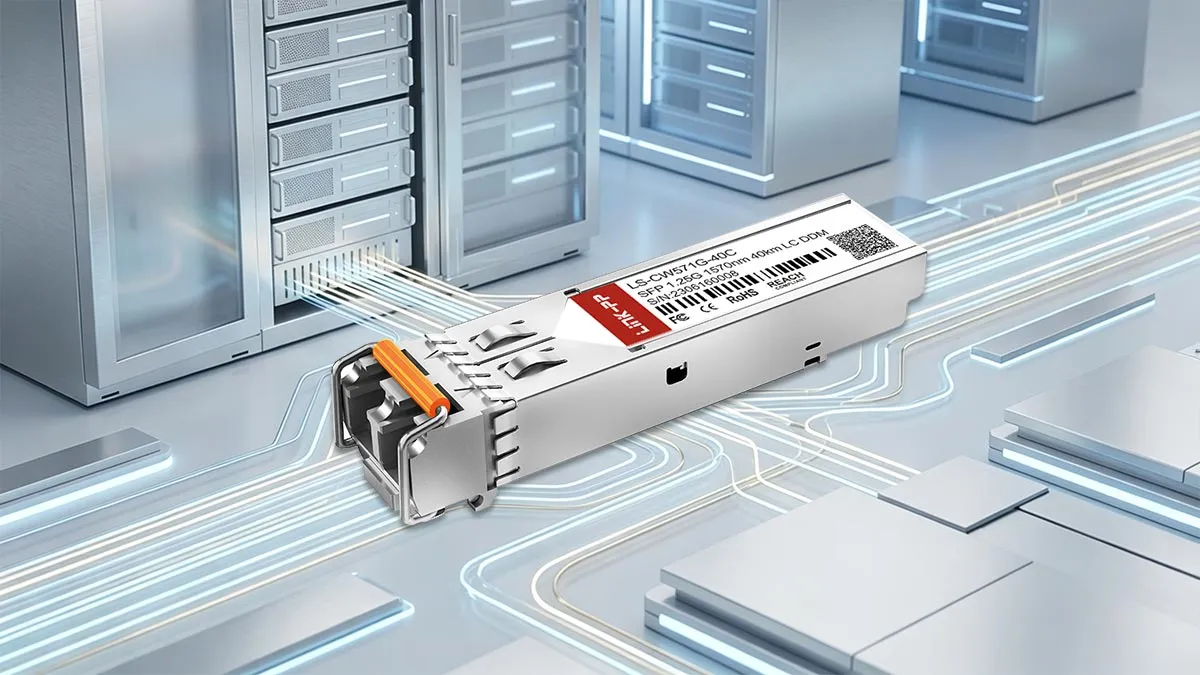

Alcatel-Lucent SFP-GIG-57CWD40 Compatible LINK-PP 1G SFP Specifications

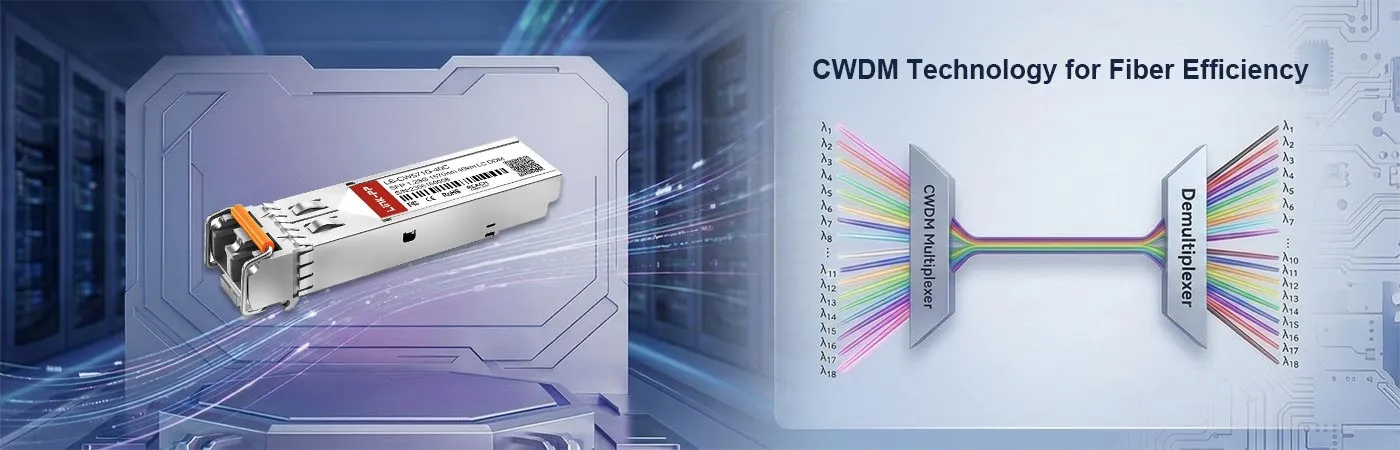

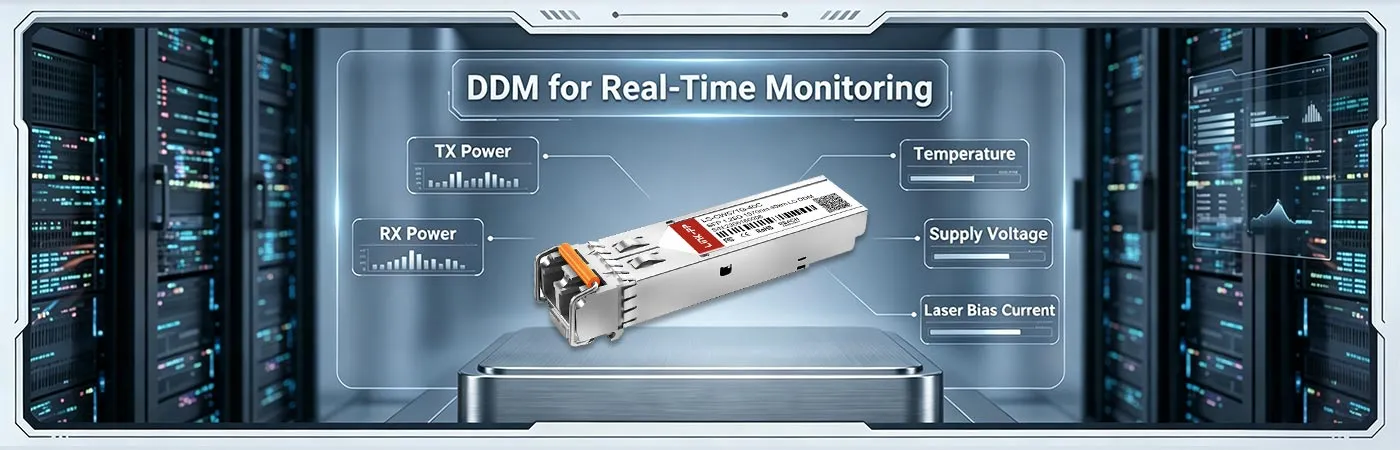

SFP-GIG-57CWD40 operates as a 1G SFP transceiver tuned to the 1570nm CWDM grid, housing a DFB laser and a PIN photodiode for optical-to-electrical conversion. It supports SMF transmission runs up to 40km, with link budgets calibrated for standard single-mode fibers. Real-time digital diagnostic monitoring (DDM) is embedded, providing instant readouts of temperature, supply voltage, bias current, TX power, and RX power.

Alcatel-Lucent Part Number	SFP-GIG-57CWD40	Vendor Name	LINK-PP

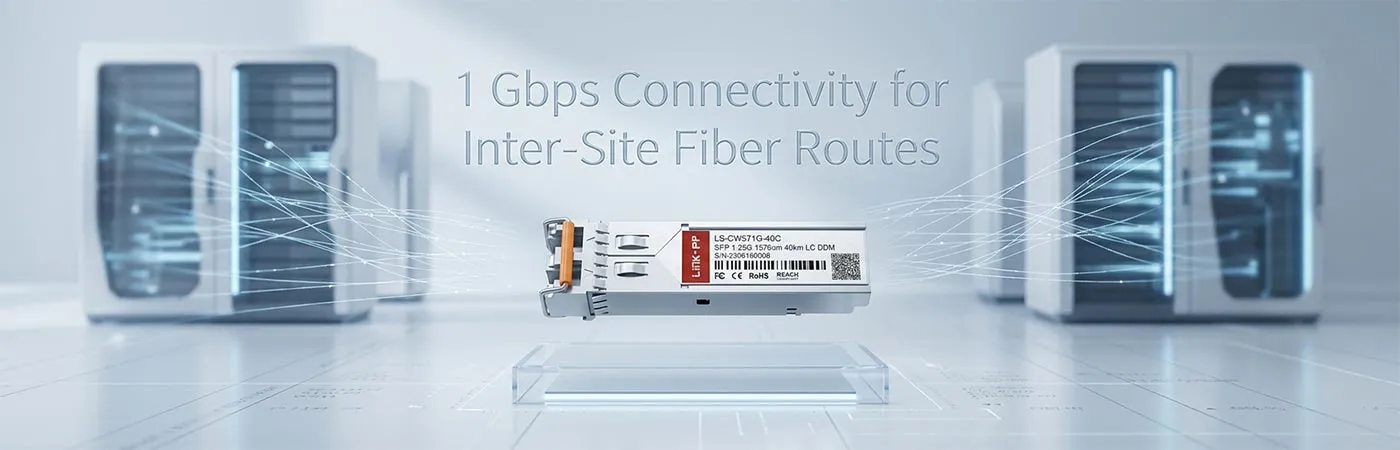

Form Factor	SFP	Max Data Rate	1.25Gbps

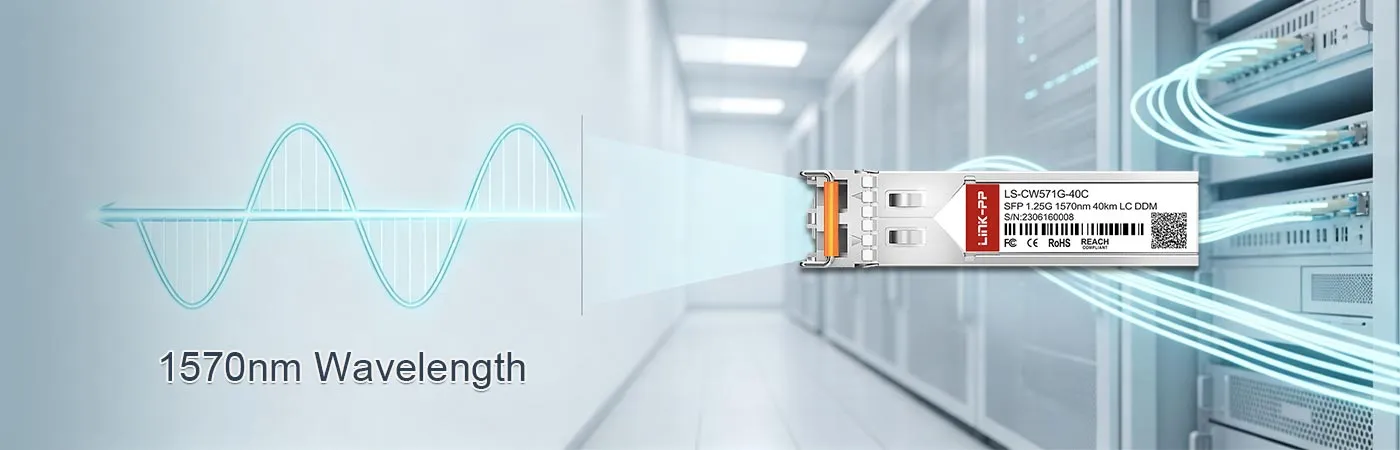

Wavelength	1570nm	Max Cable Distance	40km

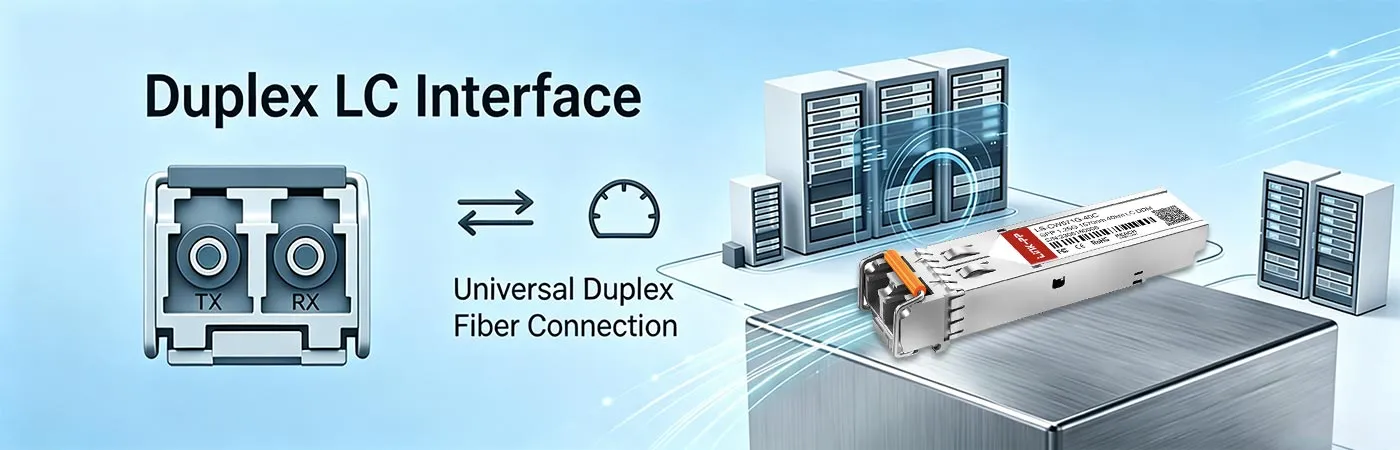

Connector	Duplex LC	Media	SMF
Transmitter Type	DFB	Receiver Type	PIN
TX Power	-5 to 0dBm	RX Power	-26 to -1dBm
Receiver Sensitivity	-24dBm	Receiver Overload	-1dBm
EMC (Electro Magnetic Comnatihilitv)	Supported	DOM Support	Yes
Operating Temperature Range	0 to 70°C	Protocols	SFP MSA、SFF-8472
