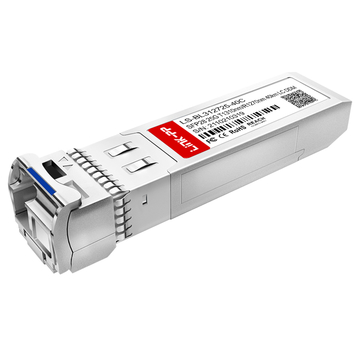

25G-SFP28-BXD-40K operates as a 25G SFP28 BiDi single-mode optical transceiver module, delivering reliable 40km connectivity over 1310nm-TX/1270nm-RX wavelengths within a 0 to 70°C commercial temperature envelope.
Brocade Part Number
25G-SFP28-BXD-40K
Vendor Name
LINK-PP
Form Factor
SFP28
Max Data Rate
25.78Gbps
Wavelength
1310nm-TX/1270nm-RX
Max Cable Distance
40km
Connector
Simplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
APD
TX Power
-1 to +7dBm
RX Power
-15 to +3dBm
Receiver Sensitivity
＜-19dBm
Receiver Overload
-7dBm
Operating Temperature Range
0 to 70°C
Protocols
MSA Compliant, CPRI, eCPRI
Key Features of Brocade 25G-SFP28-BXD-40K Compatible LINK-PP 25G SFP28
Brocade 25G-SFP28-BXD-40K Compatible LINK-PP module is a 25G SFP28 BiDi single-mode optical transceiver module that integrates advanced laser technology with built-in digital diagnostics. It delivers reliable single-fiber data transmission over extended distances while streamlining cable infrastructure. This module offers an efficient solution for network operators looking to optimize fiber utilization and maintain link integrity.
This module features a 1310nm DFB laser paired with a highly sensitive 1270nm APD receiver to ensure robust optical link quality. The combination of these components allows for precise signal transmission and clean reception over a single fiber strand. This design provides the hardware stability required for consistent network connectivity.
25G-SFP28-BXD-40K: 25 Gbps Connectivity for Extended Enterprise Uplinks
Designed to meet growing bandwidth demands, this transceiver delivers a steady 25Gbps data rate for critical infrastructure links. It significantly accelerates data throughput across enterprise networks without requiring a complete hardware overhaul. This makes it an ideal choice for upgrading aggregate switches and long-range core uplinks.
25G-SFP28-BXD-40K Module with 1310nm-TX/1270nm-RX Wavelength
The transceiver utilizes a BiDi design with mismatched 1310nm-TX and 1270nm-RX operating wavelengths to enable simultaneous two-way traffic. By splitting the transmit and receive functions onto separate optical frequencies, it eliminates signal interference on the line. This specific wavelength pairing maximizes throughput while saving valuable physical fiber resources.
Engineered for long-range networking, this module easily sustains stable data connections across distances up to 40km on standard single-mode fiber. Its powerful optical power budget prevents signal degradation over extended geographical spans. This capability effectively bridges the gap between distant corporate offices, data centers, or regional hubs.
25G-SFP28-BXD-40K Module with Simplex LC/UPC Interface
Equipped with a simplex LC/UPC connector, the module requires only one fiber strand instead of the traditional two for bidirectional communication. This design cuts fiber cabling needs exactly in half, dramatically lowering deployment and material costs. The ultra-physical contact (UPC) polish also ensures minimal back reflection at the connection point.
25G-SFP28-BXD-40K Module with DOM for Real-Time Monitoring
Featuring Digital Optical Monitoring (DOM) capabilities, this module offers real-time tracking of critical operating metrics. Network administrators can easily monitor live internal parameters such as transceiver temperature, supply voltage, and laser power. This proactive data helps prevent unexpected downtime and simplifies troubleshooting procedures.
Brocade 25G-SFP28-BXD-40K Compatible LINK-PP adheres to strict international standards, achieving vital industry benchmarks including ISO 9001, CE, RoHS, and FCC compliance.
Every transceiver undergoes rigorous hardware verification and signal integrity testing in the lab before shipping to ensure zero defects.
25G-SFP28-BXD-40K Quality Certifications
These industry credentials prove that the module adheres to the highest manufacturing regulations and global quality standards.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
25G-SFP28-BXD-40K Certified for Reliable Host-Device Compatibility
Extensive interoperability testing ensures the module integrates seamlessly with major switch and router brands without causing link errors.
LINK-PP validates every SFP28 module through extensive qualification protocols to guarantee stable field operation, and you can explore our complete evaluation methodology at the LINK-PP Test Support Center.
Optical Spectrum Test
Measure exact laser center wavelengths to confirm peak optical precision.
Eye Pattern Test
Analyze signal waveforms to ensure clean optical transmitter quality.
Bit Error Rate Test
Verify packet transmission accuracy to guarantee data integrity under load.
Temperature Test
Confirm stable hardware performance under varied thermal conditions.
Product Shipping for Brocade 25G-SFP28-BXD-40K Compatible LINK-PP 25G SFP28
We follow strict packing protocols to ensure your orders arrive safely. Secure transit methods guarantee fast and reliable worldwide delivery.
Anti-Static Protective Packaging
Prevent electrostatic damage to sensitive components during handling.
Shock-Resistant Transport Protection
Safeguard the internal optics against vibrations during transit.
Fast Order Processing and Dispatch
Accelerate order fulfillment to ensure rapid product departure.
Global Logistics and International Delivery
Ship items worldwide using reliable international freight channels.
Easily deploy the Brocade 25G-SFP28-BXD-40K Compatible LINK-PP hot-pluggable optical module into your existing network hardware to establish instant 25Gbps connectivity. This optical transceiver is optimized for single-fiber enterprise uplinks, regional telecom routing, and metro access links requiring stable, long-distance data transmission up to 40km.
25G-SFP28-BXD-40K Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal 25G-SFP28-BXD-40K module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
The LS-BL312725-40C operates on a standard +3.3V supply and draws under 1.5W of power. This low power draw prevents port thermal throttling in dense switch configurations. By
admin
A:
This commercial-grade SFP28 module is rated for 0°C to +70°C case operating temperature inside standard indoor racks or climate-controlled enclosures. If your outdoor cabinets experience freezing winters or extreme heat, we recommend our industrial-grade version (-40°C to +85°C). By
admin
A:
Yes, the built-in SFF-8472 compliant DDM function lets you monitor optical Rx/Tx power, voltage, laser bias current, and temperature natively via SNMP or CLI. By
