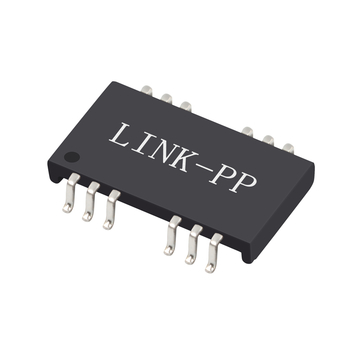

LP41627ANL 10/100 Base-T Single Port SMD 12PIN Low Profile Ethernet Magnetics Transformer

Product: LP41627ANL 10/100 Base-T Single Port SMD 12PIN Low Profile Ethernet Magnetics Transformer
SKU: 201945
P/N: LP41627ANL
Price: $ 0.67
Stock: 99800 in Stock
Sold: 290.2K
Product URL: https://www.l-p.com/products/491429.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

0 Reviews

0 Questions

290.2K Sold

$ 0.67

Free shipping over $600. For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

$ 0.670

$ 0.443

$ 0.356

12000

$ 0.322

24000

$ 0.289

Manufacture: LINK-PP P/N: LP41627ANL SKU: 201945

Compatible:: LINK-PP

Compatible P/N:: LP41627ANL

Shipping:

To Be Negotiated

$ 29.47

Can't deliver

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Stock:

99800 in Stock .

Quantity:

Total Price:

$ 0.67

Packaging Details:

N.W/pcs: 0.001kg
Package: Reel
SPQ: 2000pcs
Qty/carton: 12000pcs
Carton size: 36*35.5*23cm
G.W./carton: 6.3kg

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LP41627ANL 10/100 Base-T Ethernet Magnetics Transformer for Automation ( Low Profile,Height 2.29mm,SMD,12PIN,Single Port )

The LP41627ANL speed 10/100 Base-T, It is compliant to IEEE 802.3 , UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to Industrial PC, New Energy, Network Firewall, Smart Meters.

LINK-PP Part Number	LP41627ANL	Transformer Type	Lan Transformer
Part Status	Active	Turns Ratio - Primary:Secondary	1:1 Transmitter, 1:1 Receiver
Construction	OPEN FRAME	Application-Lan	Ethernet(NoN PoE)
Number of Ports	SINGLE	Speed	10/100 Base-T
Package	Tape & Reel	Cores per Port	4
AutomDX	Yes	Comment	SAME AS NL VERSION
PIN number	12	Mounting Type	Surface Mount
Package Height (Inches/mm)	0.090/2.29	Package Length (Inches/mm)	0.380/9.65
Package Width (Inches/mm)	0.500/12.70	Temperature	-40℃ TO +85℃
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C,S

Low Profile Lan Transformer

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing LP41627ANL.pdf Download
