LP12AC02000B sfp 1x2 cage press-fit with emi spring finger

LP12AC02000B SFP 1x2 Cage Press-Fit With EMI Spring Finger

Product summary

Product
LP12AC02000B SFP 1x2 Cage Press-Fit With EMI Spring Finger
SKU
201932
P/N
LP12AC02000B
Price
$ 1.06
Stock
120 in Stock
Sold
1.9K
Unit price $ 1.06
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP12AC02000BSKU: 201932

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LP12AC02000B
Volume pricing Online tiers · larger qty or custom price on request
$ 1.060
1–99 pcs
$ 0.881
100–999 pcs
$ 0.813
1,000–4,999 pcs
$ 0.717
5,000–9,999 pcs
$ 0.679
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
120 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 1.06

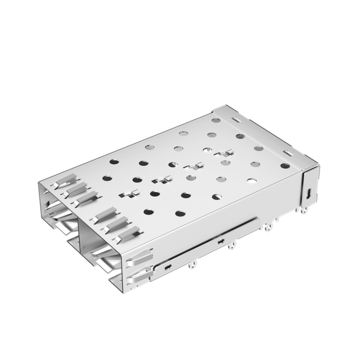

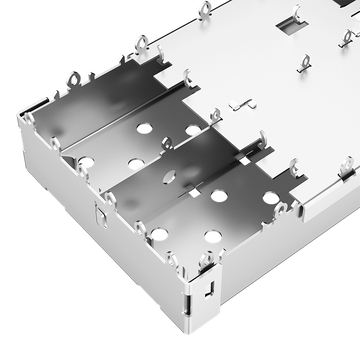

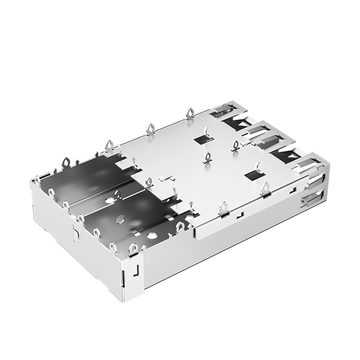

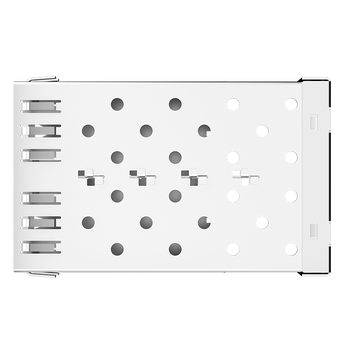

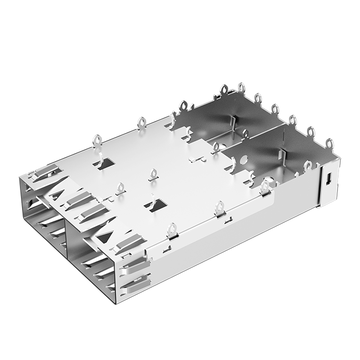

LINK-PP LP12AC02000B SFP 1x2 Cage With EMI Spring Finger

LINK-PP Part Number LP12AC02000B Part Status Active
Product Type Cage Form Factor SFP
Max Data Rate 4 Gbps Features EMI Shielded
Port Matrix Configuration 1×2 Number of Ports 2
Included Connector No Included Heat Sink No
Included Lightpipe No EMI Containment Feature Type Spring Fingers
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) 0.081/2.05 Recommended PCB Thickness (Inches/mm) 0.059/1.50 (MIN)
Length (Inches/mm) 1.969/50.00 (REF) Width (Inches/mm) 1.132/28.75 (REF)
Height (Inches/mm) 0.396/10.05 (REF) Cage Material Stainless Steel
Contact Plating None Cage Plating Nickel
Operating Temperature Range -55 to +105°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP12AC02000B.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Yes, the cage rating only covers the shell. The transceiver keeps its own temperature limit, so a 0 to 70C module is the limit at the module, not at the frame. In a hot enclosure the air around the cage can sit above 70C even when the room is cooler, so measure the case temperature of the module itself. If that number climbs past the module rating, move to an industrial transceiver. by LINK-PP Technical Support
  • A:
    This part has no light pipe and none is optional, so there is no pocket to clip one into. If you need link status at the bezel, order the variant that ships with a light guide rather than trying to glue one on. Retrofitting usually means drilling the frame, which breaks the plating and the EMI seal. Decide this at the layout stage, because the pipe also changes the clearance above the cage. by LINK-PP Technical Support
  • A:
    Press-fit works on 1.2mm as long as the plated hole diameter and the pin compliance match the drawing. Our own boards are 1.6mm and we keep the hole tolerance at 0.05mm. Below about 1.0mm the board flexes too much during insertion, so use a support plate under the press. Check the pin length against your board thickness before ordering, and pull test the first five parts. by LINK-PP Technical Support
  • A:
    Yes. LP12AC02000B is the cage only, so the transceivers and the host side connector are separate items. Check the mechanical drawing for the connector position and order the mating part your transceiver vendor specifies. Some of our projects use a cage assembly that already includes the connector, which is a different part number, so confirm before releasing the bill of materials. by LINK-PP Technical Support

Customer Reviews

  • 5

    42 Reviews

  • 5 Stars
    98%
    4 Stars
    2%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (42)
No data
M***d
Indonesia
Verified Purchase
5.0
2026-11-07
One bezel opening takes both bays at 28.75mm, so the punch tool is a single hit instead of two, and the two cages cannot drift apart on the panel.
Y***o
United Kingdom
Verified Purchase
5.0
2026-10-09
The sibling cage LP12AC02000 is 48.70mm long, this one reaches 50.00mm.
N***i
Hungary
Verified Purchase
5.0
2026-09-10
At 9.75mm tall this frame fits the 1U tray where the deeper cage we tried first fouled the lid ;)
C***k
Poland
Verified Purchase
5.0
2026-08-12
Press-fit pins are unforgiving about the board. We specified 1.0mm plated holes with a 0.05mm tolerance, a board thickness of 1.6mm and no reflow before insertion, then used the proper flat anvil rather than a bench press. The checklist also covers pin straightness and the hole countersink. One batch had holes drilled 0.1mm oversize and the pins went in with almost no retention force, which only showed up at a pull test.
R***n
Romania
Verified Purchase
5.0
2026-07-15
EMI spring fingers are the part we inspect hardest. Each finger has to stand proud of the bezel by roughly 0.3mm and none may be folded flat, because a flattened finger turns into a slot antenna. On incoming we run a finger gauge round the opening, then check the shield continuity from the cage body to the chassis with a milliohm meter. Two parts out of sixty arrived with one finger bent inward, which is a packing issue rather than a stamping one.
