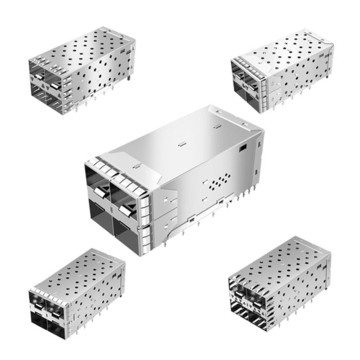

TE 1-2343522-9 zSFP+ Receptacle with Cage Ganged (2x2) Press-Fit EMI Shielded Light Pipe

Product: TE 1-2343522-9 zSFP+ Receptacle with Cage Ganged (2x2) Press-Fit EMI Shielded Light Pipe
SKU: 200960
P/N: 1-2343522-9
Price: $ 12.80
Stock: 60 in Stock
Sold: 2.1K
Product URL: https://www.l-p.com/products/490997.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

0 Reviews

0 Questions

2.1K Sold

$ 12.80

Free shipping over $99. For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

$ 12.80

$ 12.16

$ 11.52

$ 10.88

$ 10.24

P/N: 1-2343522-9 SKU: 200960

Compatible:: TE

Compatible P/N:: 1-2343522-9

Shipping:

To Be Negotiated

$ 44.65

Can't deliver

to United States via FedEx IP

Estimated delivery time : 3 - 10 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Stock:

60 in Stock .

Quantity:

Total Price:

$ 12.80

Specifications
Comparison
Specification
Matching Products
Download
Q&A
Customer Reviews

TE 1-2343522-9 zSFP+ Receptacle with Cage Ganged (2x2) Press-Fit EMI Shielded Light Pipe,zSFP+ Stacked (SFP56), Cage Assembly with Integrated Connector, .6mm [.018in] Centerline, Signal

TE Part Number	1-2343522-9	Part Status	Active
Connector Style	Receptacle with Cage Ganged (2x2)	Connector Type	zSFP+
Mounting Type	Through Hole, Right Angle	Termination	Press-Fit
Features	EMI Shielded	Cage Type	Stacked
Pluggable I/O Product Type	Cage Assembly with Integrated Connector	Sealable	No
Form Factor	zSFP+ Stacked (SFP56)	Number of Positions	20
Port Matrix Configuration	2x2 Ports	Number of Ports	4
Data Rate (Max) (Gb/s)	56	Centerline (Pitch)	.6 mm
Termination Post & Tail Length	-	Cage Material	-
PCB Thickness (Recommended)	-	Operating Temperature Range	-55 – 105 °C
Heat Sink Compatible	No	Pluggable I/O Applications	SFP28
Circuit Application	Signal	UL Flammability Rating	-
Included Lightpipe	Yes	EMI Containment Feature Type	Internal/External EMI Springs

Model Comparison Table

	Current Model 1-2343522-9	3-2343522-3	2343522-8	2343522-6	2343522-5

Compatible	TE	TE	TE	TE	TE
Data Rate (Max)	56Gb/s	56Gb/s	56Gb/s	56Gb/s	56Gb/s
Connector	Receptacle with Cage Ganged (2x2)	Receptacle with Cage Ganged (2x2)	Receptacle with Cage Ganged (2x2)	Receptacle with Cage Ganged (2x2)	Receptacle with Cage Ganged (2x2)
Operating Temperature	-55 – 105 °C	-55 – 105 °C	-55 – 105 °C	-55 – 105 °C	-55 – 105 °C
Pluggable I/O Product Type	Cage Assembly with Integrated Connector	Cage Assembly with Integrated Connector	Cage Assembly with Integrated Connector	Cage Assembly with Integrated Connector	Cage Assembly with Integrated Connector
EMI Containment Feature Type	Internal/External EMI Springs	Internal/External EMI Springs	Internal/External EMI Springs	Internal/External EMI Springs	Internal/External EMI Springs
Lightpipe Options	With Lightpipe	With Lightpipe	With Lightpipe	With Lightpipe	Not Optional
Termination Method to Printed Circuit Board	Through Hole - Press-Fit	Through Hole - Press-Fit	Through Hole - Press-Fit	Through Hole - Press-Fit	Through Hole - Press-Fit
Part Status	Active	Active	Active	Active	Active
Connector Style	Receptacle with Cage Ganged (2x2)	Receptacle with Cage Ganged (2x2)	Receptacle with Cage Ganged (2x2)	Receptacle with Cage Ganged (2x2)	Receptacle with Cage Ganged (2x2)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Termination	Press-Fit	Press-Fit	Press-Fit	Press-Fit	Press-Fit
Features	EMI Shielded	EMI Shielded	EMI Shielded	EMI Shielded	EMI Shielded
Cage Type	Stacked	Stacked	Stacked	Stacked	Stacked
Sealable	No	-	-	-	-
Form Factor	zSFP+ Stacked (SFP56)	zSFP+ Stacked (SFP56)	zSFP+ Stacked (SFP56)	zSFP+ Stacked (SFP56)	zSFP+ Stacked (SFP56)
Number of Positions	20	20	20	20	20
Port Matrix Configuration	2x2 Ports	2x2 Ports	2x2 Ports	2x2 Ports	2x2 Ports
Number of Ports	4	4	4	4	4
Centerline (Pitch)	.6 mm	.6 mm	.6 mm	.6 mm	.6 mm
Termination Post & Tail Length	-	-	-	-	-
Cage Material	-	-	-	-	-
PCB Thickness (Recommended)	-	-	-	-	-
Pluggable I/O Applications	SFP28	SFP28	SFP28	SFP28	SFP28
Circuit Application	Signal	Signal	Signal	Signal	Signal
UL Flammability Rating	-	-	-	-	-
Included Lightpipe	Yes	Yes	Yes	Yes	No
