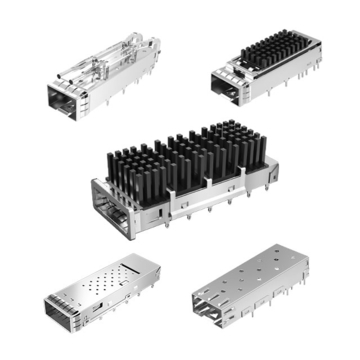

TE 2170705-9 ZQSFP+ Cage with Heat Sink Press-Fit With EMI Shielded Light Pipe

Product: TE 2170705-9 ZQSFP+ Cage with Heat Sink Press-Fit With EMI Shielded Light Pipe
SKU: 200728
P/N: 2170705-9
Price: $ 7.90
Stock: 350 in Stock
Sold: 1.7K
Product URL: https://www.l-p.com/products/490849.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

0 Reviews

0 Questions

1.7K Sold

$ 7.90

Free shipping over $99. For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

$ 7.90

$ 7.51

$ 7.11

$ 6.72

$ 6.32

P/N: 2170705-9 SKU: 200728

Compatible:: TE

Compatible P/N:: 2170705-9

Shipping:

To Be Negotiated

$ 44.65

Can't deliver

to United States via FedEx IP

Estimated delivery time : 3 - 10 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Stock:

350 in Stock .

Quantity:

Total Price:

$ 7.90

Specifications
Comparison
Specification
Matching Products
Download
Q&A
Customer Reviews

TE 2170705-9 ZQSFP+ Cage with Heat Sink Through Hole Right Angle Press-Fit EMI Shielded Light Pipe,Cage Assembly, Signal

TE Part Number	2170705-9	Part Status	Active
Connector Style	Cage with Heat Sink	Connector Type	ZQSFP+
Mounting Type	Through Hole, Right Angle	Termination	Press-Fit
Features	EMI Shielded	Thermal Accessory Type Included	Heat Sink
Cage Type	Ganged	Pluggable I/O Product Type	Cage Assembly
Sealable	No	Form Factor	QSFP28/56
Port Matrix Configuration	1x1 Ports	Number of Ports	1
Data Rate (Max)(Gb/s)	28 GB/S	Heat Sink Height(in)	.531
Heat Sink Height Class	Networking	Heat Sink Finish	Anodized Black
Heat Sink Style	Pin	PCB Contact Termination Area Plating Material	Tin
Termination Post & Tail Length	2.05mm	Cage Material	Nickel Silver
PCB Thickness (Recommended)	1.57mm	Operating Temperature Range	-40 – 85°C
Heat Sink Compatible	Yes	Pluggable I/O Applications	SFP+ Stacked Belly-to-Belly
Circuit Application	Signal	UL Flammability Rating	UL 94V-0
Packaging Method	Box & Tray	Included Lightpipe	Yes
EMI Containment Feature Type	Internal/External EMI Springs

Model Comparison Table

	Current Model 2170705-9	4-2170705-8	4-2170705-7	4-2170705-6	4-2170705-1	2-2170705-8

Compatible	TE	TE	TE	TE	TE	TE
Data Rate (Max)	28 GB/S	28 GB/S	28 GB/S	28 GB/S	28 GB/S	28 GB/S
Connector	Cage with Heat Sink	Cage with Heat Sink	Cage with Heat Sink	Cage with Heat Sink	Cage with Heat Sink	Cage with Heat Sink
Operating Temperature	-40 – 85°C	-40 – 85°C	-40 – 85°C	-40 – 85°C	-40 – 85°C	-40 – 85°C
Pluggable I/O Product Type	Cage Assembly	Cage Assembly	Cage Assembly	Cage Assembly	Cage Assembly	Cage Assembly
EMI Containment Feature Type	Internal/External EMI Springs	Internal/External EMI Springs	Internal/External EMI Springs	Internal/External EMI Springs	Internal/External EMI Springs	Internal/External EMI Springs
Lightpipe Options	With Lightpipe	With Lightpipe	With Lightpipe	With Lightpipe	With Lightpipe	With Lightpipe
Termination Method to Printed Circuit Board	Through Hole - Press-Fit	Through Hole - Press-Fit	Through Hole - Press-Fit	Through Hole - Press-Fit	Through Hole - Press-Fit	Through Hole - Press-Fit
Part Status	Active	Active	Active	Active	Active	Active
Connector Style	Cage with Heat Sink	Cage with Heat Sink	Cage with Heat Sink	Cage with Heat Sink	Cage with Heat Sink	Cage with Heat Sink
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Termination	Press-Fit	Press-Fit	Press-Fit	Press-Fit	Press-Fit	Press-Fit
Features	EMI Shielded
Thermal Accessory Type Included	Heat Sink
Cage Type	Ganged	Single	Single	Single	Single	Single
Sealable	No	No	No	No	No	No
Form Factor	QSFP28/56	QSFP28/56	QSFP28/56	QSFP28/56	QSFP28/56	QSFP28/56
Port Matrix Configuration	1x1 Ports	1x1 Ports	1x1 Ports	1x1 Ports	1x1 Ports	1x1 Ports
Number of Ports	1	1	1	1	1	1
Heat Sink Height(in)	.531
Heat Sink Height Class	Networking	SAN	PCI	Networking	PCI	SAN
Heat Sink Finish	Anodized Black
Heat Sink Style	Pin
PCB Contact Termination Area Plating Material	Tin	Tin	Tin	Tin	Tin	Tin
Termination Post & Tail Length	2.05mm	2.05mm	2.05mm	2.05mm	2.05mm	2.05mm
Cage Material	Nickel Silver	Nickel Silver	Nickel Silver	Nickel Silver	Nickel Silver	Nickel Silver
PCB Thickness (Recommended)	1.57mm	1.57mm	1.57mm	1.57mm	1.57mm	1.57mm
Pluggable I/O Applications	SFP+ Stacked Belly-to-Belly	SFP+ Stacked Belly-to-Belly	SFP+ Stacked Belly-to-Belly	SFP+ Stacked Belly-to-Belly	SFP+ Stacked Belly-to-Belly	SFP+ Stacked Belly-to-Belly
Circuit Application	Signal	Signal	Signal	Signal	Signal	Signal
UL Flammability Rating	UL 94V-0	UL 94V-0	UL 94V-0	UL 94V-0	UL 94V-0	UL 94V-0
Packaging Method	Box & Tray	Box & Tray	Box & Tray	Box & Tray	Box & Tray	Box & Tray
Included Lightpipe	Yes	Yes	Yes	Yes	Yes	Yes
