LP14AC02000 sfp 1x4 cage press-fit with emi spring finger
Click to open expanded view

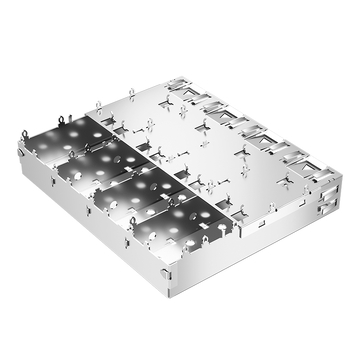

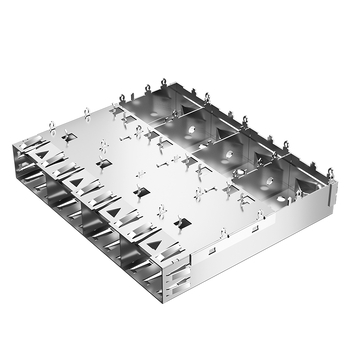

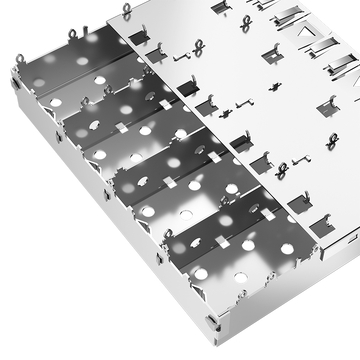

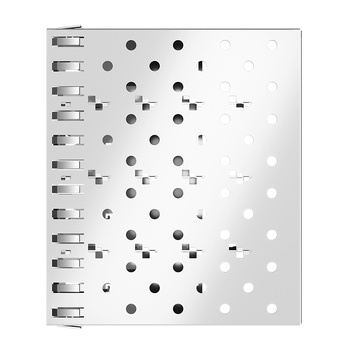

LP14AC02000 SFP 1x4 Cage Press-Fit With EMI Spring Finger

Product summary

Product
LP14AC02000 SFP 1x4 Cage Press-Fit With EMI Spring Finger
SKU
199078
P/N
LP14AC02000
Price
$ 2.09
Stock
550 in Stock
Sold
2.5K
Unit price $ 2.09
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP14AC02000SKU: 199078

LINK-PP originalDatasheetAll downloads

Compatible:
Molex
LINK-PP
Compatible P/N:
LP14AC02000
Volume pricing Online tiers · larger qty or custom price on request
$ 2.090
1–99 pcs
$ 1.741
100–999 pcs
$ 1.493
1,000–4,999 pcs
$ 1.418
5,000–9,999 pcs
$ 1.343
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
550 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 2.09

LINK-PP LP14AC02000 SFP 1X4 Cages Press-Fit With EMI Spring Finger

LINK-PP Part Number LP14AC02000 Part Status Active
Product Type Cage Form Factor SFP
Port Matrix Configuration 1x4 Port Number of Ports 4
Operating Temperature Range -55 – 105°C Mounting Style Through Hole, Right Angle
Included Lightpipe - Termination Press-Fit
Height (Inches/mm) 0.352/8.95 Length (Inches/mm) 2.264/57.50
Width (Inches/mm) 1.919/48.75 Tail Length
-

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP14AC02000.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    A single-row 1x4 usually keeps the airflow path simpler, because all four bays sit at the same height and no upper row blocks intake to the lower one. The 8.95mm body height also leaves more room above the board than a stacked frame. Keep at least the module maker recommended spacing either side of the cutout for the heatsink and the latch bail, and leave clear air in front of the bezel for extraction. Our own check is a thermal run with four optics seated. by LINK-PP Technical Support
  • A:
    The internal and external spring fingers need to wipe a conductive faceplate, so a bare or plated bezel both work if the finish is unpainted. Allow about 0.3 to 0.5mm of deflection at the opening; too little leaves a gap that shows in an emissions scan, too much can bend a finger. Keep the cutout free of burrs and confirm all four bays sit flush, since a tilted frame lifts the springs on one side. Check an aluminium chassis is not anodised at the contact area. by LINK-PP Technical Support
  • A:
    The difference is cold-end margin, not a change in the ports. This cage is rated minus 55 to 105C and the LP14AC02000S minus 40 to 85C, so the S version covers an enclosure that never drops below minus 40C. We suggest the wider part where an unpowered cabinet can cold-soak below its stated rating. Both share the same 1x4 press-fit frame and EMI springs, so switching needs no layout change. by LINK-PP Technical Support
  • A:
    Yes, the press-fit legs suit plated through holes and the cage is seated after wave soldering, so no extra reflow step is needed. Take the finished hole size and plating thickness from the mechanical drawing rather than the specification table, since retention depends on leg-to-barrel interference. Plated holes are commonly held near 0.6mm finished with about 25um copper, but confirm with your fabricator. Press the whole 1x4 frame with a flat tool, never one bay at a time. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    44 Reviews

  • 5 Stars
    93%
    4 Stars
    7%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (44)
No data
A***n
South Africa
Verified Purchase
5.0
2026-11-07
Rated minus 55 to 105C, which is fifteen degrees colder at the low end than the LP14AC02000S we priced. For an outdoor enclosure that spec, not the port count, is what decided the order.
S***n
Argentina
Verified Purchase
5.0
2026-10-08
One 48.75mm bezel cutout lines up all four bays, which saved us three separate openings =D
A***n
United States
Verified Purchase
5.0
2026-09-08
Active status and right angle through hole mounting, so no last-minute footprint change.
C***d
Austria
Verified Purchase
4.0
2026-08-10
Four stars because the carton labelled only the family code and not the 1x4 count, so IQC opened every tray to separate it from the stacked part. All four bays were straight and pressed in cleanly; the cage was fine.
D***a
Ukraine
Verified Purchase
5.0
2026-07-11
Both internal and external EMI springs are called out on this variant. After six months in a ventilated chassis the contact fingers still spring back and none of the four ports has needed a reseat.
