Integrated RJ45 Connector
Single Port RJ45 Connector
5G Base-T RJ45 Connector
198278

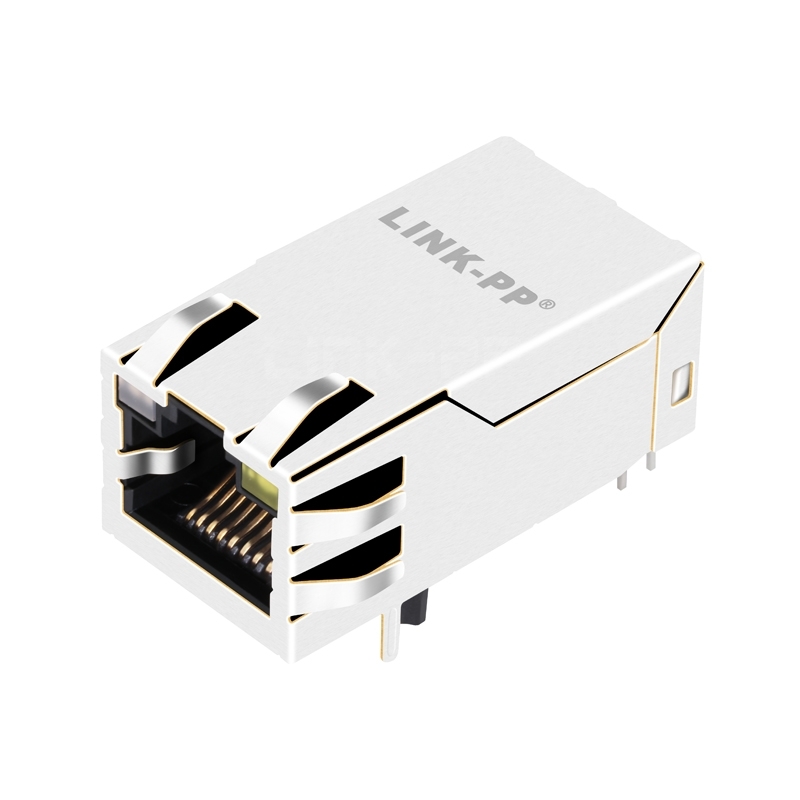

TE 2250507-1 Compatible LPJQP9693AONL 5G Base-T RJ45 PoE+ Magnetic Jack Single Port Tab Up Orange&Green/Yellow Leds
  • TE 2250507-1 Compatible LPJQP9693AONL 5G Base-T RJ45 PoE+ Magnetic Jack Single Port Tab Up Orange&Green/Yellow Leds thumb image 1
  • TE 2250507-1 Compatible LPJQP9693AONL 5G Base-T RJ45 PoE+ Magnetic Jack Single Port Tab Up Orange&Green/Yellow Leds thumb image 2
  • TE 2250507-1 Compatible LPJQP9693AONL 5G Base-T RJ45 PoE+ Magnetic Jack Single Port Tab Up Orange&Green/Yellow Leds thumb image 3
  • TE 2250507-1 Compatible LPJQP9693AONL 5G Base-T RJ45 PoE+ Magnetic Jack Single Port Tab Up Orange&Green/Yellow Leds thumb image 4
  • TE 2250507-1 Compatible LPJQP9693AONL 5G Base-T RJ45 PoE+ Magnetic Jack Single Port Tab Up Orange&Green/Yellow Leds thumb image 5

TE 2250507-1 Compatible LPJQP9693AONL 5G Base-T RJ45 PoE+ Magnetic Jack Single Port Tab Up Orange&Green/Yellow Leds

#198278
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

TE 2250507-1 Compatible LPJQP9693AONL 5G Base-T RJ45 PoE+ Magnetic Jack Single Port Tab Up Orange&Green/Yellow Leds

  • ฿  168.324

    900 in Stock

 0 Questions
Request Stock
2.1K Sold
฿  168.324
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
฿168.324
100
฿138.026
600
฿121.194
1200
฿92.579
6000
฿79.113
P/N: LPJQP9693AONL
Compatible:
LINK-PP
Belfuse
TE
Competitor P/N:
2250507-1
Shipping:
฿ 953.944
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
900 in Stock .
Quantity:
Total Price:
฿ 168.324
Packaging Details:
0.011kg
Tray
60pcs
840pcs
37*30*30cm
9kg
Add to wish

TE 2250507-1 Compatible LINK-PP LPJQP9693AONL 5G Base-T RJ45 PoE+ Magnetic Jack ( POE+,Single Port, Tab Up,Orange&Green/Yellow Leds)


The TE 2250507-1 supports speed 5G Base-T, It is compliant to IEEE 802.3 at, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Hub, Surgical Equipment and Patient Care.



LINK-PP Part Number
 LPJQP9693AONL TE Part Number
 2250507-1
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 16p8c (RJ45, Ethernet) Application-Lan
 Ethernet(PoE+)
Number of Ports
1x1 PortSpeed
5G Base-T
Latch
UpCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Orange&Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.280/32.50

Package Width (Inches/mm)
0.650/16.50Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. 5G RJ45
  2. rj45 pcb connector
  3. RJ45 PoE
  4. Magnetic rj45 connector
  5. 0826-1X1T-KL-F
  6. 2250507-1

Download

Product Drawing
