LP11DC01000 qsfp 1x1 cage with internal external emi springs

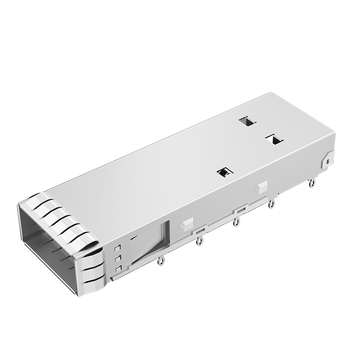

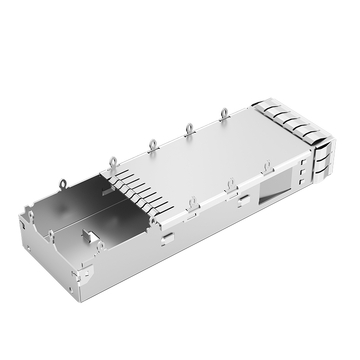

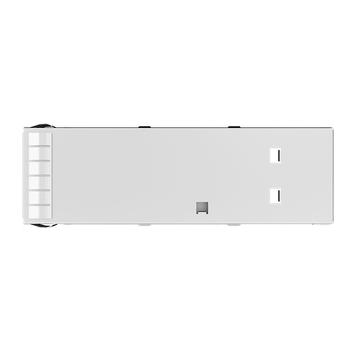

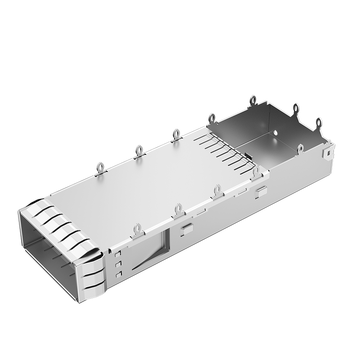

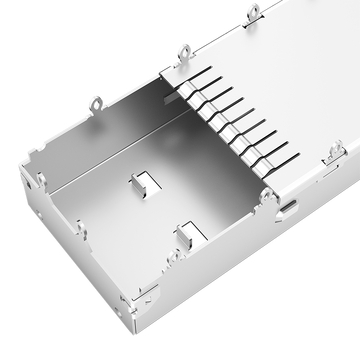

LP11DC01000 QSFP 1x1 Cage With Internal/External EMI Springs

Product summary

Product
LP11DC01000 QSFP 1x1 Cage With Internal/External EMI Springs
SKU
196233
P/N
LP11DC01000
Price
$ 1.79
Stock
940 in Stock
Sold
3.2K
Unit price $ 1.79
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP11DC01000SKU: 196233

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LP11DC01000
Volume pricing Online tiers · larger qty or custom price on request
$ 1.790
1–99 pcs
$ 1.729
100–999 pcs
$ 1.654
1,000–4,999 pcs
$ 1.522
5,000–9,999 pcs
$ 1.397
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
940 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 1.79

LINK-PP LP11DC01000 QSFP 1x1 Cage With Internal/External EMI Springs

LINK-PP Part Number LP11DC01000 Part Status Active
Product Type Cage Form Factor QSFP
Max Data Rate 40 Gbps Features EMI Shielded
Port Matrix Configuration 1×1 Number of Ports 1
Included Connector No Included Heat Sink No
Included Lightpipe No EMI Containment Feature Type Springs
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) 0.087/2.20 Recommended PCB Thickness (Inches/mm) 0.063/1.60 (MIN)
Length (Inches/mm) 2.312/58.73 Width (Inches/mm) 0.783/19.90 (REF)
Height (Inches/mm) 0.384/9.75 Cage Material Copper Alloy
Contact Plating None Cage Plating Nickel
Operating Temperature Range -40 to +85°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawinig LP11DC01000.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Leave enough free height above the opening for the latch to release and for fingers to reach the module body when it has to come out. A heatsink that sits flush with the front plane makes both awkward, particularly on a QSFP shell where the module is deeper than an SFP one. We mocked up the lid with cardboard before cutting metal, and kept the airflow path clear at the rear. Check the same clearance with a patch lead fitted. by LINK-PP Technical Support
  • A:
    There is no moulded guide on this shell, so any lamp stays on the board or in the switch software. On a one port faceplate that is usually enough, since the single opening is easy to label and the host reports link and activity per cage anyway. If a visible indicator is required, it needs its own cutout and a separate light pipe part. We marked the port on the silkscreen instead. by LINK-PP Technical Support
  • A:
    A single bay still needs a flat press tool that covers the whole shell, plus a backing support under the board so the plated holes are not stressed unevenly. We checked the hole finish and the tail length against the drawing before the first stroke, then inspected the underside for folded tails. Using a narrow tool on one side tends to tilt the cage, and that shows up later as a stiff latch. Support the board near the edge. by LINK-PP Technical Support
  • A:
    The two sets of springs sit on different sides of the shell, so they solve two separate problems. The inner fingers press against the module body once it is seated, while the outer row meets the conductive faceplate around the cutout. We measured both paths with a meter on the first build and repeated the reading after the panel was finished, because a coated surface can break the bond. Keep the chassis path separate from the board reference in the layout. by LINK-PP Technical Support

Customer Reviews

  • 5

    31 Reviews

  • 5 Stars
    97%
    4 Stars
    3%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (31)
No data
H***n
Verified Purchase
5.0
2026-11-14
Single port, 1x1 cage, rated -40℃ to 85℃. It held up through the pull test.
C***e
Belgium
Verified Purchase
5.0
2026-07-21
A QSFP cage, not an RJ45 jack, good for this slot.
R***d
Verified Purchase
5.0
2026-01-24
The mouth is far wider than an SFP cage at 20.85 mm, so the four channel modules go in without an adapter. The faceplate closed over it, as described.
N***m
Verified Purchase
5.0
2025-06-30
The press fit tails went into the board with a flat tool and no solder, and the spring contact on the shell read good on all 24 slots. ;)
D***d
Verified Purchase
5.0
2025-03-08
Two spring sets, inside and outside. No surprises on the contact count.
