LPJQP9693AONL 5g base-t rj45 poe+ magnetic jack single port tab up orange&green yellow leds
Click to open expanded view

LPJQP9693AONL 5G Base-T RJ45 PoE+ Magnetic Jack Single Port Tab Up Orange&Green/Yellow Leds

Product summary

Product
LPJQP9693AONL 5G Base-T RJ45 PoE+ Magnetic Jack Single Port Tab Up Orange&Green/Yellow Leds
SKU
198276
P/N
LPJQP9693AONL
Price
$ 5.20
Stock
900 in Stock
Sold
2.1K
Unit price $ 5.20
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJQP9693AONLSKU: 198276

LINK-PP originalDatasheetAll downloads

Compatible P/N:
LPJQP9693AONL
Volume pricing Online tiers · larger qty or custom price on request
$ 5.200
1–99 pcs
$ 4.264
100–599 pcs
$ 3.744
600–1,199 pcs
$ 2.860
1,200–5,999 pcs
$ 2.444
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
900 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 60
Total Price:
$ 5.20
Packaging Details
60 pcs
840 pcs
Tray
37×30×30 cm
0.011 kg
9 kg

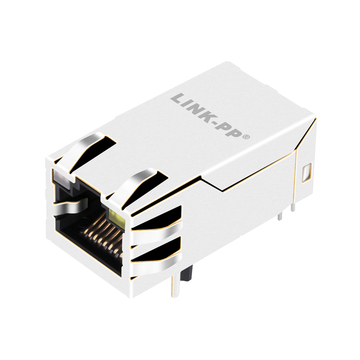

LINK-PP LPJQP9693AONL 5G Base-T RJ45 PoE+ Magnetic Jack ( POE+,Single Port, Tab Up,Orange&Green/Yellow Leds)


The LPJQP9693AONL supports speed 5G Base-T, It is compliant to IEEE 802.3 at, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Hub, Surgical Equipment and Patient Care.



LINK-PP Part Number
LPJQP9693AONL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
16p8c (RJ45, Ethernet) Application-Lan
Ethernet(PoE+)
Number of Ports
1x1 PortSpeed
5G Base-T
Latch
UpCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Orange&Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.280/32.50

Package Width (Inches/mm)
0.650/16.50Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJQP9693AONL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Yes, the jack works at 2.5G and 1G as well, and it is the same footprint, so one part number can cover all three speeds on a board family. The only thing to watch is cost: if a board will never run 5G or PoE+, a cheaper four core jack does the job. For a mixed board, standardise on this one and keep the BOM short. by LINK-PP Technical Support
  • A:
    On 30m of good Cat5e we have held 5G, and at 55m the same cable fell back to 2.5G. The jack is not the limit; the cable and the alien crosstalk are. If you need 5G at 60m or more, specify Cat6 and test the run with a link qualification tool before you commit, because a marginal run will retrain rather than fail outright and that is harder to diagnose. by LINK-PP Technical Support
  • A:
    The jack is passive magnetics, so negotiation is done by the PHY and the PSE, not by the connector. A 15W 802.3af device classifies normally and draws what it needs; the jack passes whatever the pair carries. What we do check is the centre tap wiring, because a board laid out for PoE+ only sometimes leaves the spare pairs unterminated and a legacy device then fails classification. by LINK-PP Technical Support
  • A:
    We use it at 25W per port continuously, which is the top of the 802.3at range, and the shell settles about 16C above ambient in a 45C box. Above that you are in 802.3bt territory and should be looking at a different magnetics set. Keep the four pairs balanced and do not bundle more than four loaded cables without checking the tray temperature. by LINK-PP Technical Support

Customer Reviews
