TE 2315853-4 Compatible LINK-PP LP14SC01000 OSFP 1x4 Cage Press-Fit With EMI Spring Finger

Name: TE 2315853-4 Compatible LINK-PP LP14SC01000 OSFP 1x4 Cage Press-Fit With EMI Spring Finger
Brand: LINK-PP
SKU: 181473
Price: 23.50 USD
Availability: InStock
Rating: 5 (19 reviews)

Product: TE 2315853-4 Compatible LINK-PP LP14SC01000 OSFP 1x4 Cage Press-Fit With EMI Spring Finger
SKU: 181473
P/N: LP14SC01000
Price: $ 23.50
Stock: 560 in Stock
Sold: 7.2K
Product URL: https://www.l-p.com/products/466801.htm

For Order Over $ 1,000.00 Get $ 15.00 Off , Code: Linkpp15

For Order Over $ 3,000.00 Get $ 50.00 Off , Code: Linkpp50

For Order Over $ 5,000.00 Get $ 100.00 Off , Code: Linkpp100

New Users: $ 10.00 Coupon for Orders , Code: linkpp2610

19 Reviews

0 Questions

7.2K Sold

$ 23.50

Free shipping over $ 99.00. For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

$ 23.50

$ 22.33

100

$ 21.15

1000

$ 19.98

2500

$ 18.80

P/N: LP14SC01000 SKU: 181473

Compatible with TE 2315853-4

Compatible:: LINK-PP; Amphenol; TE

Compatible P/N:: 2315853-4

Shipping:

To Be Negotiated

$ 29.47

Can't deliver

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Stock:

560 in Stock .

Quantity:

Total Price:

$ 23.50

Specifications
Comparison
Specification
Matching Products
Download
Q&A
Customer Reviews

TE 2315853-4 Compatible LINK-PP LP14SC01000 OSFP Cage Ganged (1 x 4) Connector Press-Fit Through Hole

LINK-PP Part Number	LP14SC01000	TE Part Number	2315853-4
Connector Style	Cage, Ganged (1 x 4)	Connector Type	OSFP
Data Rate (Max)(Gb/s)	-	Mounting Type	Through Hole, Right Angle
Termination	Press-Fit	Features	EMI Shielded
Port Matrix Configuration	1x4 Ports	Number of Ports	4
Connector System	Cable-to-Board	Connector & Contact Terminates To	Printed Circuit Board
Operating Temperature Range	-55 – 85°C	PCB Mounting Style	Through Hole - Press-Fit
Circuit Application	Signal	EMI Containment Feature Type	External Springs
Included Lightpipe	NO	Cage Material	Stainless Steel
PCB Thickness (Recommended)	-	Tail Length	-

Model Comparison Table

	Current Model 2315853-4	2315853-2	2-2338495-1	2338495-3

Compatible	TE	TE	TE	TE
Data Rate (Max)	-	-	-	-
Connector	Cage, Ganged (1 x 4)	Cage, Ganged (1 x 4)	Cage, Ganged (1 x 4)	Cage, Ganged (1 x 4)
Operating Temperature	-55 – 85°C	-55 – 85°C	-55 – 85°C	-55 – 85°C
Pluggable I/O Product Type	Cage Assembly	Cage Assembly	Cage Assembly	Cage Assembly
EMI Containment Feature Type	External Springs	External Springs	External Springs	External Springs
Lightpipe Options	Not Optional	Not Optional	With Lightpipe	Not Optional
Termination Method to Printed Circuit Board	Through Hole - Press-Fit	Through Hole - Press-Fit	Through Hole - Press-Fit	Through Hole - Press-Fit
TE	2315853-4	Through Hole - Press-Fit	-	-
Connector Style	Cage, Ganged (1 x 4)	Cage, Ganged (1 x 4)	Cage, Ganged (1 x 4)	Cage, Ganged (1 x 4)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Termination	Press-Fit	Press-Fit	Press-Fit	Press-Fit
Features	EMI Shielded	EMI Shielded	EMI Shielded	EMI Shielded
Port Matrix Configuration	1x4 Ports	1x4 Ports	1x4 Ports	1x4 Ports
Number of Ports	4	4	4	4
Connector System	Cable-to-Board	Cable-to-Board
Connector & Contact Terminates To	Printed Circuit Board	Printed Circuit Board
PCB Mounting Style	Through Hole - Press-Fit	Double-Sided (Belly-to-Belly)
Circuit Application	Signal	Signal	Signal	Signal
Included Lightpipe	NO	NO	Yes	No
Cage Material	Stainless Steel	-	-	-
PCB Thickness (Recommended)	-	-	-	-
Tail Length	-	-	-	-

Action

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

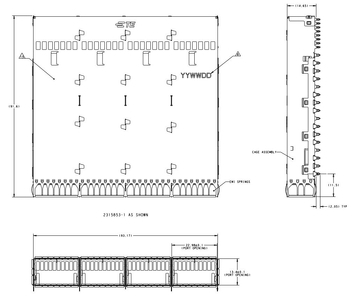

Product Drawing LP14SC01000.pdf Download
