LP28BC01301 sfp+ 2x8 cage&connector press-fit with outer light pipe emi spring finger

LP28BC01301 SFP+ 2x8 Cage&Connector Press-Fit With Outer Light Pipe EMI Spring Finger

Product summary

Product
LP28BC01301 SFP+ 2x8 Cage&Connector Press-Fit With Outer Light Pipe EMI Spring Finger
SKU
197768
P/N
LP28BC01301
Price
$ 30.23
Stock
590 in Stock
Sold
1.4K
Unit price $ 30.23
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP28BC01301SKU: 197768

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
TE
LINK-PP
Compatible P/N:
LP28BC01301
Volume pricing Online tiers · larger qty or custom price on request
$ 30.230
1–99 pcs
$ 26.451
100–999 pcs
$ 23.513
1,000–4,999 pcs
$ 22.337
5,000–9,999 pcs
$ 21.161
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
590 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 30.23

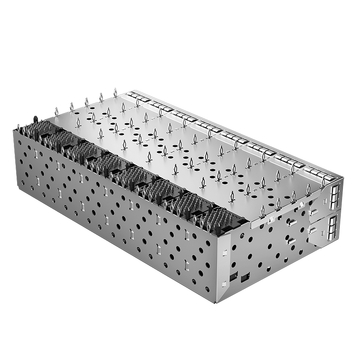

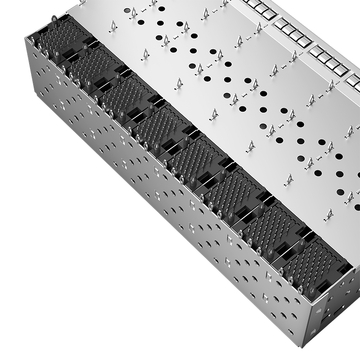

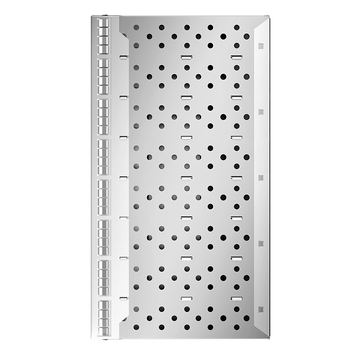

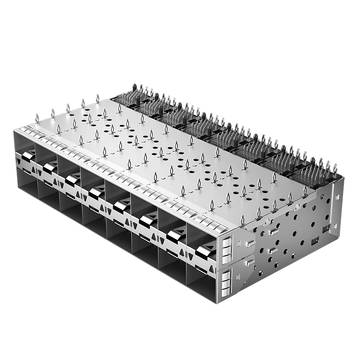

LINK-PP LP28BC01301 SFP+ 2x8 Cage Connector With EMI Spring Finger Light Pipe

LINK-PP Part Number LP28BC01301 Part Status Active
Product Type Receptacle with Cage, Ganged (2x8) Form Factor SFP+
Data Rate (Max)(Gb/s) 16 Mounting Type Through Hole, Right Angle
Termination Press-Fit Features EMI Shielded
Port Matrix Configuration 2x8 Ports Number of Ports 16
Operating Temperature Range -40 – 85°C Included Lightpipe Outer Light Pipe
Height (Inches/mm) 1.061/26.95 Width (Inches/mm) 2.490/63.25
Length (Inches/mm)
4.569/116.05 Tail Length -

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP28BC01301 REV B.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Yes, and that is the usual order for a press-fit part: reflow, wash, then press. It keeps the plating and the spring fingers out of the oven, and it lets you inspect the holes before the cage covers them. The one thing to watch is that the board is fully dry before pressing, because moisture in a plated hole can affect the interference fit. by LINK-PP Technical Support
  • A:
    It is the figure the page publishes for the assembly, and it sits well above the 10G SFP+ parts this cage is normally used with. What limits a ganged frame in practice is thermal and mechanical rather than the electrical number, so check airflow across sixteen ports and the insertion force after a few hundred cycles. For a 10G card there is plenty of headroom. by LINK-PP Technical Support
  • A:
    The pipe carries light from the pad on the board out to the aperture, so it is driven by the board LEDs rather than by the module. That is why it works regardless of which SFP+ you fit, and why it keeps working when you swap a module. If you want per port status reported by the module itself, the pipe will not show it because those lamps sit inside the cage. by LINK-PP Technical Support
  • A:
    Back the board with a flat plate over the whole 116mm before pressing, and set the force on the first frame rather than the last. A frame this long will bow in the middle if the backing plate only touches at the ends, and a bowed press lifts the inner port rows. We record peak force on the first article and verify height at each end whenever the press setup changes. by LINK-PP Technical Support

Customer Reviews

  • 5

    44 Reviews

  • 5 Stars
    98%
    4 Stars
    2%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (44)
No data
L***m
Ukraine
Verified Purchase
5.0
2026-11-07
Sixteen ports share one frame, so one press cycle covers a whole row instead of eight separate cages, and the ports come out coplanar since a single pressing anchors them.
C***e
Singapore
Verified Purchase
5.0
2026-10-09
Sixteen ports on one frame is the density argument. Two of these give thirty-two SFP+ ports on a card that used to hold twenty-four, and the panel work is two cutouts instead of thirty-two. :-D
N***t
France
Verified Purchase
5.0
2026-09-10
The outer pipe is what lets a card with no management processor show link state at the panel. Sixteen ports is too many to debug by moving a cable, and a guide that runs outside the cage gets the light to the front without a separate board level part. That is the reason we specified this version rather than the bare frame.
P***n
Canada
Verified Purchase
5.0
2026-08-11
Sixteen gigabit per port is the ceiling in the table, which comfortably covers a 10G SFP+ and leaves headroom. We run 10G modules in it, and nothing about the cage suggests it is the limiting part of the link.
B***k
Saudi Arabia
Verified Purchase
5.0
2026-07-13
A 2x8 matrix, so sixteen ports in two rows of eight on one frame. The two rows share the same cutout, which is why the panel opening is a single rectangle rather than sixteen holes.
