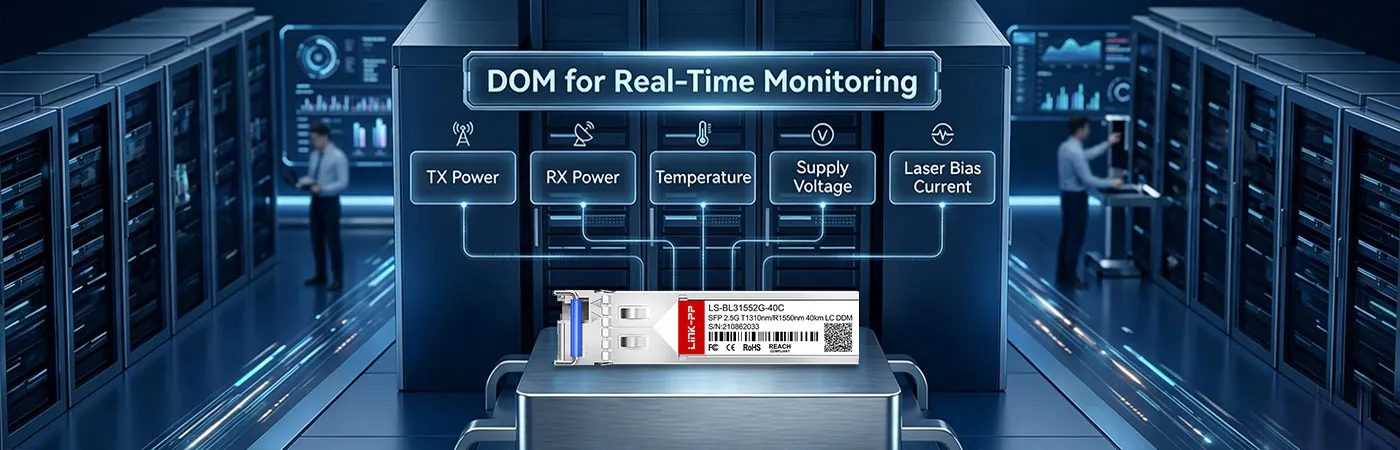

What SFF diagnostic standards are used for DDM readouts on this BiDi module, and can I read transmit power levels via SNMP?

The module integrates Digital Diagnostics Monitoring (DDM/DOM) in full compliance with SFF-8472, enabling real-time monitoring of TX output power, RX input power, laser bias current, module supply voltage, and internal temperature via standard switch SNMP MIBs.

Does the 40km distance rating require a minimum fiber optical attenuation or optical attenuator for short-distance testing on a bench?

Yes, because the optical transmitter is calibrated for long-reach 40km spans, connecting this module directly on a short patch cable (e.g., under 5km) without an optical attenuator (typically 5dB to 10dB) may saturate or damage the sensitive optical receiver.

How do I select the correct counter-part optical module to pair with this 1310nm-TX / 1550nm-RX BiDi transceiver on a single fiber strand?

To establish a functional link over a single fiber strand, the opposite end of the fiber link must use a complementary BiDi module that transmits at 1550nm and receives at 1310nm (1550nm-TX / 1310nm-RX 2.5G BiDi SFP 40km).

Will this simplex LC BiDi module work with APC (Angled Physical Contact) polished fiber jumpers or only UPC/PC polished jumpers?

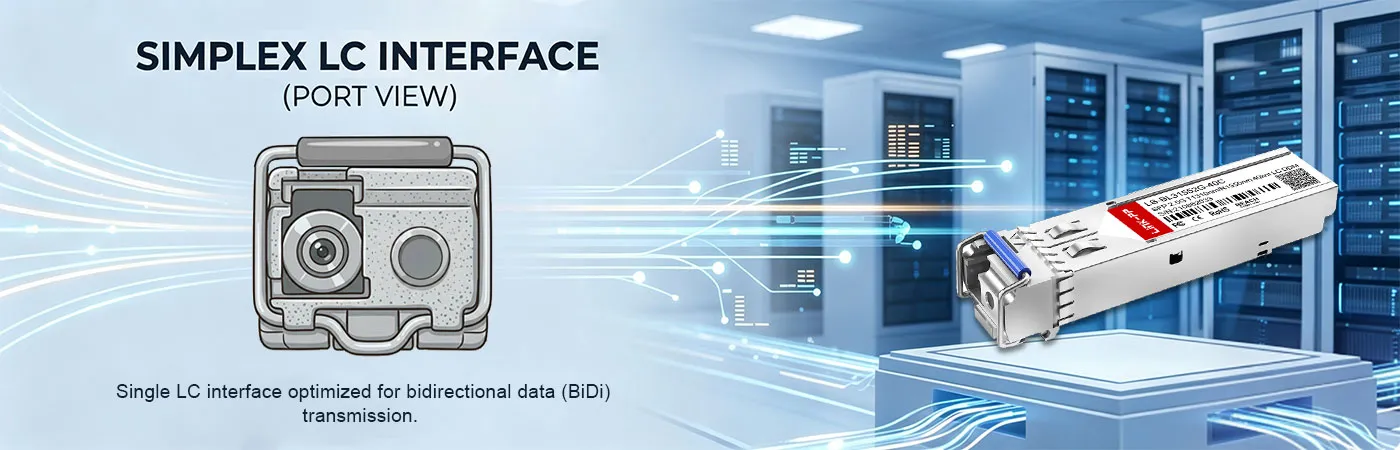

The optical interface uses a standard blue Simplex LC/UPC connector. For optimal optical return loss and minimal insertion loss, it should be connected to LC/UPC polished single-mode fiber patch cables rather than green LC/APC connectors.

Can this 2.5G SFP BiDi transceiver auto-negotiate down to standard 1Gbps or 100Mbps speeds on legacy switch ports?

No, this module operates at a fixed data rate of 2.5Gbps (SONET OC-48 / 2.5G Ethernet). Both the switch port and the optic on the far end must support native 2.5G rate for the link to negotiate and establish connection.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 1/2/4G Transceiver Modules; 2.5G SFP; 193624

Click to open expanded view

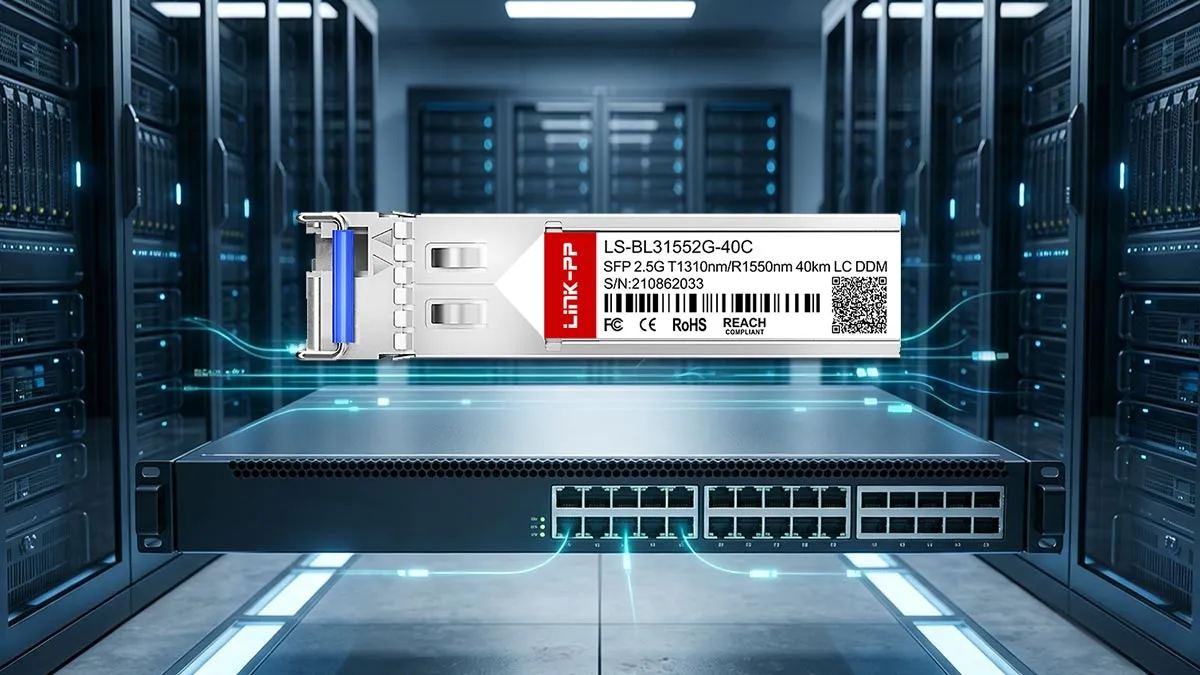

LINK-PP LS-BL31552G-40C 2.5G SFP BiDi 1310nm-TX/1550nm-RX 40km DOM Simplex LC SMF Optical Transceiver Module

Name: LINK-PP LS-BL31552G-40C 2.5G SFP BiDi 1310nm-TX/1550nm-RX 40km DOM Simplex LC SMF Optical Transceiver Module
Brand: LINK-PP
SKU: 193624
Price: 9.116 USD
Availability: InStock
Rating: 5 (51 reviews)

# 193624

Product: LINK-PP LS-BL31552G-40C 2.5G SFP BiDi 1310nm-TX/1550nm-RX 40km DOM Simplex LC SMF Optical Transceiver Module
SKU: 193624
P/N: LS-BL31552G-40C
Price: $ 10.6
Stock: 325 in Stock
Sold: 185
Product URL: https://www.l-p.com/products/485571.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

51 Reviews

5 Questions

Request Stock

185 Sold

$ 10.6

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 10.6

100

$ 10.07

1000

$ 9.752

3000

$ 9.434

6000

$ 9.116

Manufacture: LINK-PP

P/N: LS-BL31552G-40C

Compatible:: LINK-PP

Compatible P/N:: LS-BL31492G-10C | 10km; LS-BL49312G-10C | 10km; LS-BL31492G-20C | 20km; LS-BL31492G-20I | 20km; LS-BL31552G-20C | 20km; LS-BL31552G-20I | 20km; LS-BL49312G-20C | 20km; LS-BL49312G-20I | 20km; LS-BL55312G-20C | 20km; LS-BL55312G-20I | 20km; LS-BL31552G-40C | 40km; LS-BL31552G-40I | 40km; LS-BL55312G-40C | 40km; LS-BL55312G-40I | 40km

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

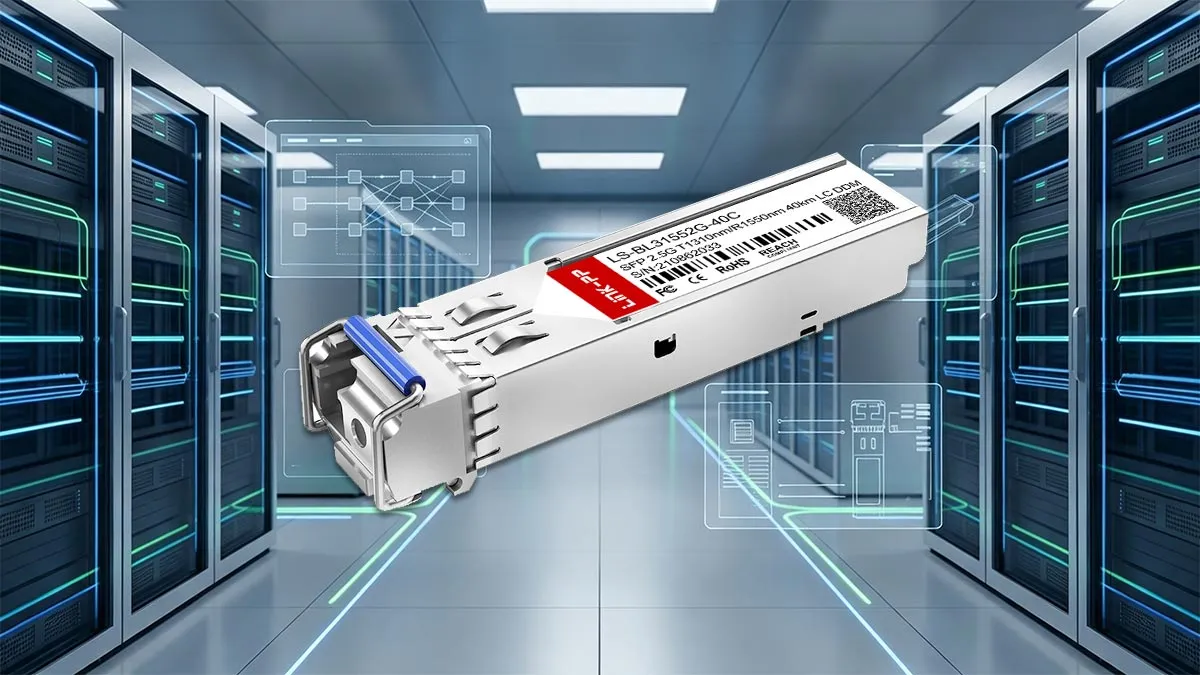

LINK-PP LS-BL31552G-40C 2.5G SFP BiDi Specifications

The LINK-PP LS-BL31552G-40C 2.5G SFP BiDi module cuts infrastructure costs by enabling bidirectional 2.5Gbps data transmission over single-mode fiber for up to 40km. It achieves this through dependable optical performance, employing a 1310nm transmit and 1550nm receive wavelength to deliver stable, high-efficiency connectivity.

LINK-PP Part Number	LS-BL31552G-40C	Vendor Name	LINK-PP
Form Factor	SFP	Max Data Rate	2.5Gbps

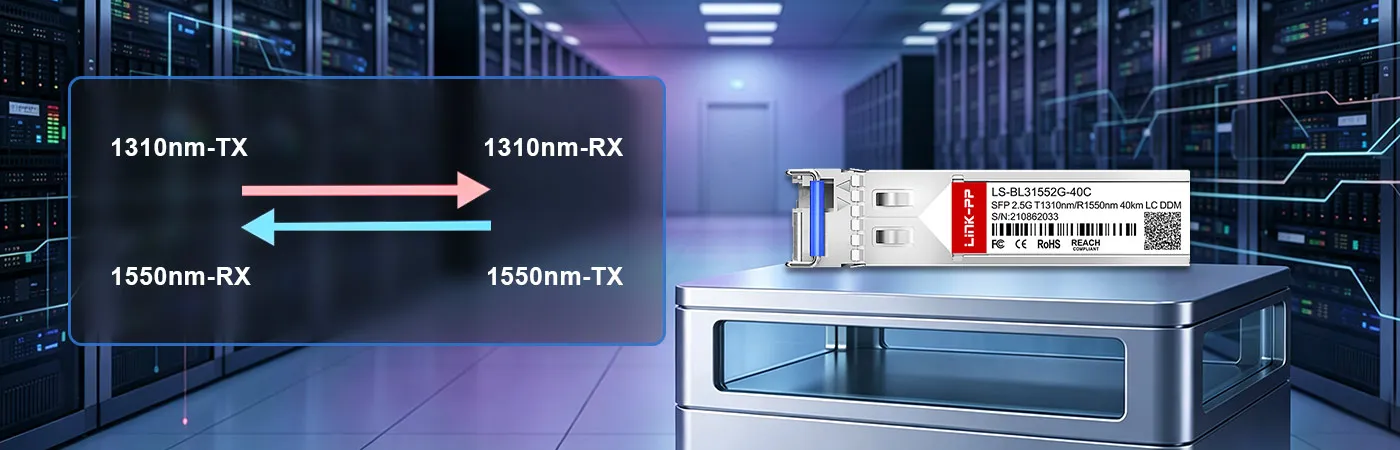

Wavelength	1310nm-TX/1550nm-RX	Max Cable Distance	40km
Connector	Simplex LC	Media	SMF
Transmitter Type	DFB	Receiver Type	PIN
TX Power	-2 to +4dBm	RX Power	-23 to -1dBm
Receiver Sensitivity	<-20dBm	Receiver Overload	-1dBm
Operating Temperature Range	0 to 70°C	Protocols	Fast Ethernet, Gigabit Fibre Channel, MSA Compliant

Videos

2.5G SFP Transceiver

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-BL31552G-40C.pdf

Questions & Answers
Ask a Question

No data

Q: What SFF diagnostic standards are used for DDM readouts on this BiDi module, and can I read transmit power levels via SNMP? By R***r on 2026-05-04

A: The module integrates Digital Diagnostics Monitoring (DDM/DOM) in full compliance with SFF-8472, enabling real-time monitoring of TX output power, RX input power, laser bias current, module supply voltage, and internal temperature via standard switch SNMP MIBs. By admin on 2026-05-05
Q: Does the 40km distance rating require a minimum fiber optical attenuation or optical attenuator for short-distance testing on a bench? By A***n on 2026-02-26

A: Yes, because the optical transmitter is calibrated for long-reach 40km spans, connecting this module directly on a short patch cable (e.g., under 5km) without an optical attenuator (typically 5dB to 10dB) may saturate or damage the sensitive optical receiver. By admin on 2026-02-27
Q: How do I select the correct counter-part optical module to pair with this 1310nm-TX / 1550nm-RX BiDi transceiver on a single fiber strand? By C***s on 2025-01-17

A: To establish a functional link over a single fiber strand, the opposite end of the fiber link must use a complementary BiDi module that transmits at 1550nm and receives at 1310nm (1550nm-TX / 1310nm-RX 2.5G BiDi SFP 40km). By admin on 2025-01-17
Q: Will this simplex LC BiDi module work with APC (Angled Physical Contact) polished fiber jumpers or only UPC/PC polished jumpers? By H***k on 2024-12-14

A: The optical interface uses a standard blue Simplex LC/UPC connector. For optimal optical return loss and minimal insertion loss, it should be connected to LC/UPC polished single-mode fiber patch cables rather than green LC/APC connectors. By admin on 2024-12-14
Q: Can this 2.5G SFP BiDi transceiver auto-negotiate down to standard 1Gbps or 100Mbps speeds on legacy switch ports? By E***s on 2024-03-19

A: No, this module operates at a fixed data rate of 2.5Gbps (SONET OC-48 / 2.5G Ethernet). Both the switch port and the optic on the far end must support native 2.5G rate for the link to negotiate and establish connection. By admin on 2024-03-20
