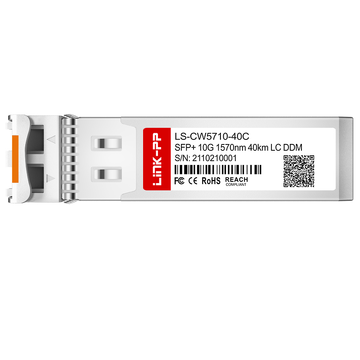

LINK-PP LS-CW5710-40C 10G SFP+ CWDM 1570nm 40km DOM Duplex LC SMF Optical Transceiver Module

Name: LINK-PP LS-CW5710-40C 10G SFP+ CWDM 1570nm 40km DOM Duplex LC SMF Optical Transceiver Module
Brand: LINK-PP
SKU: 190645
Price: 220.16 USD
Availability: InStock
Rating: 5 (49 reviews)

Product: LINK-PP LS-CW5710-40C 10G SFP+ CWDM 1570nm 40km DOM Duplex LC SMF Optical Transceiver Module
SKU: 190645
P/N: LS-CW5710-40C
Price: $ 256
Stock: 580 in Stock
Sold: 320
Product URL: https://www.l-p.com/products/484293.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

49 Reviews

4 Questions

320 Sold

$ 256

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 256

100

$ 243.2

1000

$ 235.52

3000

$ 227.84

6000

$ 220.16

Manufacture: LINK-PP P/N: LS-CW5710-40C SKU: 190645

Compatible:: Cisco; LINK-PP; Alcatel-Lucent; Brocade; Ciena; Dell; FS; Generic; H3C; HPE; Juniper

Wavelength:: 1270nm; 1290nm; 1310nm; 1330nm; 1350nm; 1370nm; 1390nm; 1410nm; 1430nm; 1450nm; 1470nm; 1490nm; 1510nm; 1530nm; 1550nm; 1570nm; 1590nm; 1610nm

Shipping:

Free Shipping

to United States via FedEx

Estimated delivery time : 3-10 days.

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Specifications
Features
Certification
Testing
Shipping
Usage
Support
Assurance
Comparison
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LS-CW5710-40C 10G SFP+ Specifications

The LINK-PP LS-CW5710-40C 10G SFP+ transceiver offers dependable 10Gbps connectivity at the 1570 nm CWDM wavelength and supports transmission distances of up to 40 km over SMF. Its hot-pluggable SFP+ form factor enables easy integration into LINK-PP-compatible networking equipment.

LINK-PP Part Number	LS-CW5710-40C	Vendor Name	LINK-PP
Form Factor	SFP+	Max Data Rate	10.7Gbps
Wavelength	1570nm	Max Cable Distance	40km
Connector	Duplex LC	Media	SMF
Transmitter Type	EML	Receiver Type	PIN
TX Power	-1 to +5dBm	RX Power	-23 to -6dBm
Receiver Sensitivity	<-16dBm	Receiver Overload	0dBm
Operating Temperature Range	0 to 70°C	Protocols	SFP+ MSA Compliant, SFF 8472,SFF 8431,802.3ae, ITU-T

Key Features of LINK-PP LS-CW5710-40C 10G SFP+

The LINK-PP LS-CW5710-40C module supports long-distance optical communication of up to 40 kilometers. Featuring a duplex LC interface and integrated DOM functionality, it ensures secure connectivity while enabling real-time performance tracking for easier network management and maintenance.

LINK-PP LS-CW5710-40C 10G SFP+ Optical Module

The LINK-PP LS-CW5710-40C 10G SFP+ module is a high-performance CWDM transceiver that includes an EML laser transmitter, a PIN photodiode with TIA, and an MCU-powered control unit for reliable and efficient data transfer.

LS-CW5710-40C: 10 Gbps Connectivity for Next-generation Networks

Supporting data rates of up to 10.7Gbps, the LINK-PP LS-CW5710-40C module provides the speed and responsiveness needed for backbone, aggregation, and metro networks.

LS-CW5710-40C Module with CWDM Technology for Fiber Efficiency

This CWDM SFP+ module maximizes fiber capacity by utilizing CWDM technology, which enables multiple wavelengths to be transmitted over a single fiber strand, thereby eliminating the need for additional cable during network expansion.

LS-CW5710-40C Module with 1570nm Wavelength

This LINK-PP LS-CW5710-40C 10G SFP+ module is well tuned to the 1570nm CWDM channel, reducing interference and ensuring consistent signal transmission throughout multi-channel deployments.

LS-CW5710-40C Module Supporting 40km Transmission

The LINK-PP LS-CW5710-40C optical module supports 10G data transmission of up to 40 kilometers over SMF. This makes it well-suited for inter-campus and metro networks, as well as other long-distance applications.

LS-CW5710-40C Module with Duplex LC Interface

The standardized duplex LC interface simplifies installation and replacement, ensuring quick upgrades and minimizing network downtime.

LS-CW5710-40C Module with DOM for Real-Time Monitoring

Thanks to its DOM functionality, the LINK-PP LS-CW5710-40C module supports predictive maintenance through live telemetry data (temperature, voltage, TX/RX).

LINK-PP LS-CW5710-40C 10G SFP+ Certification

LINK-PP produces its optical modules under the ISO 9001 quality management system and meets global standards, including CE, RoHS, and FCC, to guarantee dependable and safe performance.

LS-CW5710-40C Quality Testing Program

A comprehensive validation process is carried out to verify the optical performance, operational stability, and overall reliability of each optical transceiver.

LS-CW5710-40C Quality Certifications

All LINK-PP modules conform to ISO 9001, CE, RoHS, and FCC certifications through strict QC procedures.

LS-CW5710-40C Certified for Reliable Host-Device Compatibility

Each transceiver is tested to ensure reliable integration with the LINK-PP host.

Rigorous Testing Ensures Reliable SFP+ Performance

A complete validation process ensures consistent signal quality and durability. Visit the LINK-PP Test Support Center for detailed information.

Rigorous Testing Ensures Reliable Transceiver Performance

Optical Spectrum Test

Performs a spectral analysis to ensure optimal spectral performance.

Eye Pattern Test

Evaluates waveform clarity to minimize intersymbol interference.

Bit Error Rate Test

Ensures low error rates and reliable data delivery across the link.

Temperature Test

Maintains stable performance in varied environments.

Product Shipping for LINK-PP LS-CW5710-40C 10G SFP+

Before leaving the warehouse, every module from LINK-PP is carefully protected against static and handling damage, ensuring reliable shipment worldwide.

Anti-Static Protective Packaging

Anti-static protection keeps optical modules safe from electrostatic risks.

Shock-Resistant Transport Protection

Reinforced packaging cushions products against transport shocks.

Fast Order Processing and Dispatch

Efficient logistics coordination speeds up dispatch times.

Global Logistics and International Delivery

Cross-region shipping is handled by dependable global carriers.

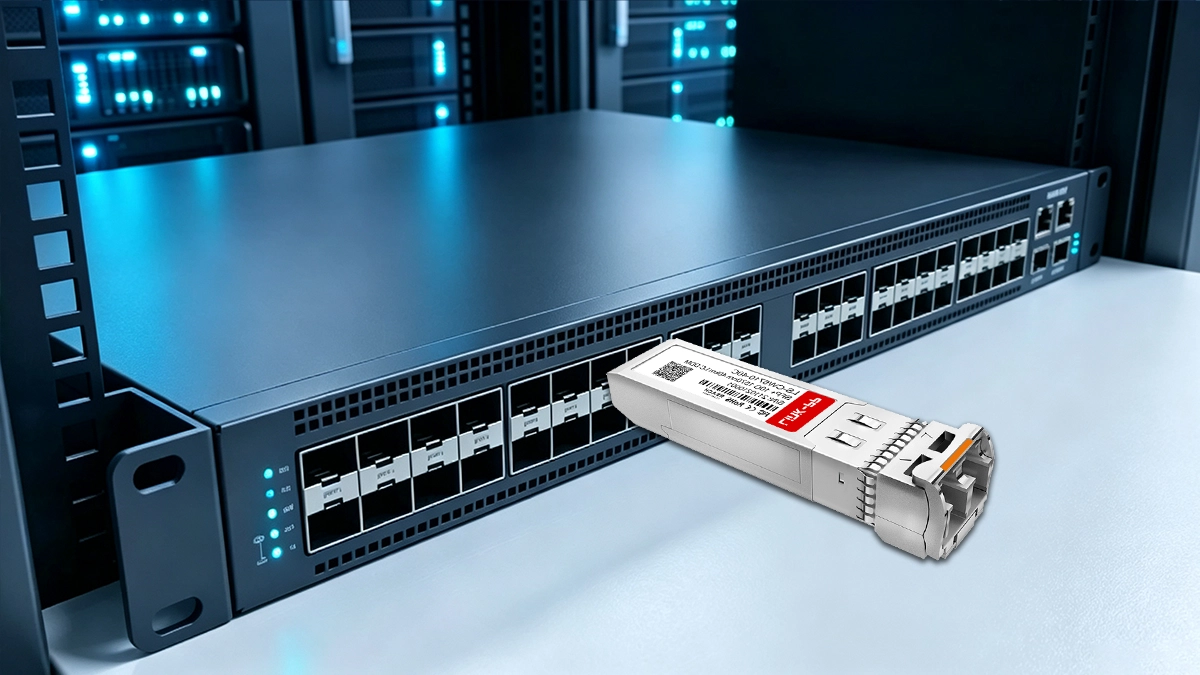

LINK-PP LS-CW5710-40C 10G SFP+ Usage Demonstration

The LINK-PP LS-CW5710-40C 10G CWDM SFP+ transceiver offers a cost-efficient solution for expanding enterprise, telecom, and metro networks. Its long-reach capability and CWDM support increase bandwidth capacity while reducing reliance on additional fiber infrastructure.

LS-CW5710-40C Technical Support

LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.

Pre-Sales Technical Consultation

Professional technical guidance to help customers select the most suitable LS-CW5710-40C modules based on network architecture and application requirements.

Compatibility Verification Support

Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.

Deployment & Installation Assistance

Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.

Long-Term Technical Assurance

Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.

LINK-PP LS-CW5710-40C 10G SFP+ After-Sales Assurance

LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.

15-day no-reason return and refund

Free replacement for dead-on-arrival (DOA) or defective items within the initial period

Free repair services for manufacturing defects throughout the warranty period

Warranty exclusions and conditions apply

Model Comparison Table

	Current Model LS-CW5710-40C Wavelength: 1570nm	LS‑DW4010‑40C Wavelength: C40	LS-DW3910-40C Wavelength: C39	LS-DW3810-40C Wavelength: C38	LS-DW3710-40C Wavelength: C37	LS-DW3610-40C Wavelength: C36

Compatible	LINK-PP	LINK-PP	LINK-PP	LINK-PP	LINK-PP	LINK-PP
Data Rate (Max)	10.7Gbps	10.7Gbps	10.7Gbps	10.7Gbps	10.7Gbps	10.7Gbps
Wavelength	1570nm	1545.32nm	1546.12nm	1546.92nm	1547.71nm	1548.51nm
Connector	Duplex LC	Duplex LC	Duplex LC	Duplex LC	Duplex LC	Duplex LC
Cable Distance (Max)	40km	40km	40km	40km	40km	40km
Cable Type	SMF	SMF	SMF	SMF	SMF	SMF
TX Power	-1 to +5dBm	-1 to +2dBm	-1 to +2dBm	-1 to +2dBm	-1 to +2dBm	-1 to +2dBm
Receiver Sensitivity	-23 to -6dBm	-15.5dBm	-15.5dBm	-15.5dBm	-15.5dBm	-15.5dBm
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Temperature	Commercial	Commercial	Commercial	Commercial	Commercial	Commercial
Form Factor	SFP+	SFP+	SFP+	SFP+	SFP+	SFP+
Transmitter Type	EML	EML	EML	EML	EML	EML
Receiver Type	PIN	PIN	PIN	PIN	PIN	PIN
Receiver Overload	0dBm
Protocols	SFP+ MSA Compliant, SFF 8472,SFF 8431,802.3ae, ITU-T	SFP+ MSA, CPRI, eCPRI, SFF-8472, SFF-8431	SFP+ MSA, CPRI, eCPRI, SFF-8472, SFF-8431	SFP+ MSA, CPRI, eCPRI, SFF-8472, SFF-8431	SFP+ MSA, CPRI, eCPRI, SFF-8472, SFF-8431	SFP+ MSA, CPRI, eCPRI, SFF-8472, SFF-8431

Action

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-CWxx10-40C 1270-1610.pdf

Questions & Answers
Ask a Question

No data

Q: What is the maximum transmission distance and transmitter laser type for this 10G CWDM SFP+ optic? By B***z on 2026-04-06

A: The module features a cooled EML laser transmitter paired with a high-sensitivity PIN photodiode, delivering a maximum link distance of up to 40km over standard G.652 single-mode fiber (SMF). By admin on 2026-04-06
Q: Can I use this CWDM 1570nm module over a standard duplex LC single-mode fiber patch cable without an optical multiplexer? By G***s on 2026-03-27

A: Yes, you can use it over a direct point-to-point duplex LC SMF link up to 40km, provided both ends operate on the matched 1570nm wavelength, or connect it through a CWDM MUX DEMUX filter to combine multiple wavelengths over a single fiber pair. By admin on 2026-03-27
Q: Does the LS-CW5710-40C module support real-time Digital Diagnostics Monitoring (DDM/DOM) for optical power tracking? By A***l on 2025-08-27

A: Absolutely. It features integrated DDM/DOM via a 2-wire serial interface according to SFF-8472, allowing network engineers to monitor real-time RX/TX optical power, temperature, laser bias current, and supply voltage. By admin on 2025-08-28
Q: Are these LINK-PP LS-CW5710-40C 10G SFP+ CWDM 1570nm 40km transceivers fully compatible with Cisco and Dell switches without vendor lock-in warnings? By P***z on 2024-02-24

A: Yes, these transceivers are fully SFP+ MSA and SFF-8472 compliant, engineered to support OEM compatibility across major switch brands including Cisco, Dell, Juniper, Arista, and Mikrotik for seamless plug-and-play installation. By admin on 2024-02-24
