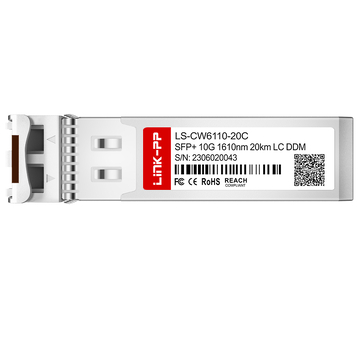

The Ciena CWDM-SFP10G-1610 Compatible LINK-PP 10G SFP+ optical module delivers high-speed performance with data rates of up to 10.7 Gbps. Operating at the 1610nm CWDM wavelength, it supports transmission distances of up to 20 km over single-mode fiber, providing reliable connectivity for LINK-PP-compatible networking environments.
Ciena Part Number
CWDM-SFP10G-1610
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7 Gbps
Wavelength
1610nm
Max Cable Distance
20km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
PIN
TX Power
-1 to +5dBm
RX Power
-23 to -6dBm
Receiver Sensitivity
<-16dBm
DDM/DOM
Supported
Operating Temperature Range
0 to 70°C
Protocols
SFP+ MSA Compliant, CPRI, eCPRI, ITU-T G.652
Key Features of Ciena CWDM-SFP10G-1610 Compatible LINK-PP 10G SFP+
Purpose-built for modern optical infrastructures, the Ciena CWDM-SFP10G-1610 Compatible LINK-PP transceiver offers a cost-efficient solution for dependable 10G connectivity. It operates on the 1610 nm CWDM channel, supports up to 20 km transmission, and features a duplex LC interface along with integrated DOM for enhanced monitoring and performance visibility.
This 10G CWDM SFP+ optical module is designed with an EML laser, a PIN photodiode coupled with a TIA, and an MCU control unit to guarantee consistent signal integrity and stable optical output for dependable, long-term operation.
CWDM-SFP10G-1610: 10 Gbps Connectivity for Next-generation Networks
With speeds of up to 10.7 Gbps, this Ciena CWDM-SFP10G-1610 Compatible LINK-PP 10G SFP+ module provides the capacity and low-latency communication needed for today's backbone and aggregation network architectures.
CWDM-SFP10G-1610 Module with CWDM Technology for Fiber Efficiency
The CWDM technology makes it possible to share a single fiber pair among multiple wavelengths, significantly boosting fiber efficiency and reducing the need for new fiber builds.
CWDM-SFP10G-1610 Module with 1610nm Wavelength
The 1610nm wavelength serves as a premium CWDM channel that unlocks extra fiber capacity for cost-effective, low-interference network expansion.
A 20 km transmission range empowers seamless long-distance connectivity, extending network reach with stable, high-speed performance while reducing the need for additional infrastructure.
CWDM-SFP10G-1610 Module with Duplex LC Interface
Thanks to the universal duplex LC interface, installation across common networking devices is simple and requires no special tools.
CWDM-SFP10G-1610 Module with DOM for Real-Time Monitoring
The Ciena CWDM-SFP10G-1610 Compatible LINK-PP 10G SFP+ module features DOM support, which enables real-time monitoring of temperature, voltage, transmit and receive power, and key diagnostics.
Each LINK-PP module is manufactured in accordance with ISO 9001 quality standards and carries CE, RoHS, and FCC certifications, ensuring safety, environmental compliance, and high reliability in operation.
Each module is subjected to thorough optical, electrical, and environmental testing to ensure that it operates reliably and efficiently.
CWDM-SFP10G-1610 Quality Certifications
Strict adherence to international standards, including ISO 9001, CE, RoHS, and FCC, ensures reliable quality and global compliance.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
CWDM-SFP10G-1610 Certified for Reliable Host-Device Compatibility
Every LINK-PP module is thoroughly tested for seamless integration with LINK-PP-compatible systems, ensuring dependable interoperability and smooth deployment.
Comprehensive validation processes ensure that the module's optical performance remains consistent over time. For further details, visit the LINK-PP Test Support Center.
Optical Spectrum Test
Verifies the accuracy of the transmitted wavelength and spectral profile.
Eye Pattern Test
Tests signal integrity to ensure smooth and stable data transfer.
Bit Error Rate Test
Measures error rates to ensure precise and dependable data transmission.
Temperature Test
Ensures that the module performs reliably in a variety of temperature settings.
Product Shipping for Ciena CWDM-SFP10G-1610 Compatible LINK-PP 10G SFP+
To guarantee safe transportation, LINK-PP packages all modules with ESD protection and durable cushioning before arranging prompt worldwide delivery.
Stable 10G optical connectivity over up to 20 km is provided by the Ciena CWDM-SFP10G-1610 Compatible LINK-PP optical module. Without requiring significant infrastructure modifications, it provides an affordable way to scale metro linkages, enterprise networks, and inter-building connections.
CWDM-SFP10G-1610 Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable CWDM-SFP10G-1610 modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
Explore quick answers to common questions regarding compatibility, functionality, and deployment.
Yes. It is specifically designed to ensure full compatibility with LINK-PP devices that support the CWDM-SFP10G-1610 specification.
It supports optical transmission distances reaching as far as 20 km using single-mode fiber.
The use of CWDM facilitates higher data throughput over existing fiber lines, optimizing resource use and cutting costs.
It is suited for applications such as backbone networks in businesses, metro access infrastructure, and optical interconnections between separate buildings needing reliable 10G speeds.
A:
The LS-CW6110-20C is fully compliant with the SFP MSA standard and supports OEM-compatible coding. It has been successfully deployed with Cisco, Juniper, Huawei, HPE, H3C, MikroTik, Dell, and many other compatible platforms. In most cases, the module is recognized automatically without additional configuration. If you have a specific device model, we'll gladly verify compatibility before shipment. By
admin
A:
Yes. The LS-CW6110-20C is designed for Gigabit Ethernet transmission over standard OS2 single-mode fiber with a maximum reach of 20 km. It supports Digital Optical Monitoring (DOM/DDM), providing real-time information such as transmit power, receive power, module temperature, supply voltage, and laser bias current, making it ideal for enterprise, metro Ethernet, and ISP network deployments. By
admin
A:
Yes. LINK-PP provides competitive project pricing for bulk orders and supports OEM/ODM services, including custom EEPROM coding, private labeling, customized packaging, and branding. Simply send us your required quantity and device models, and we'll prepare a tailored quotation. By
admin
Installed these modules for a city surveillance network connecting roadside cabinets through OS2 fiber. Link stability has been excellent even after continuous 24/7 operation.
