Getting ready to run SMF for a new office buildout. Does this transceiver require a simplex or duplex patch cable, and what connector type?

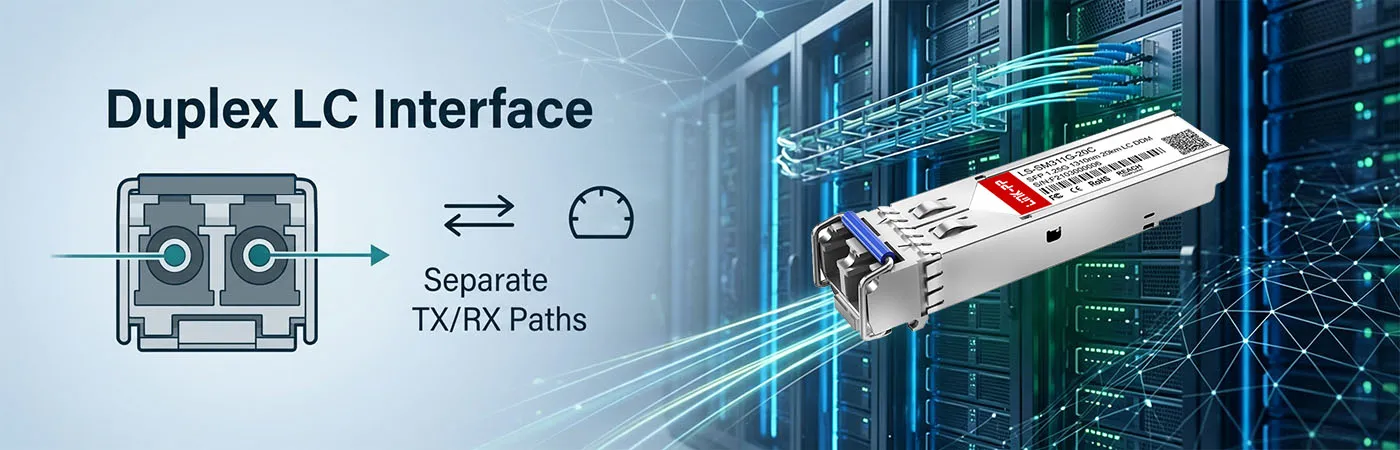

This optical module utilizes a standard Duplex LC connector interface. You will need a dual-strand Single-Mode Fiber (SMF) patch cable for the dedicated Tx/Rx ports to achieve the maximum 20km transmission distance.

I need to ensure this optical module supports legacy protocols for our metro Ethernet setup. Is it compliant with standard IEEE Gigabit specs?

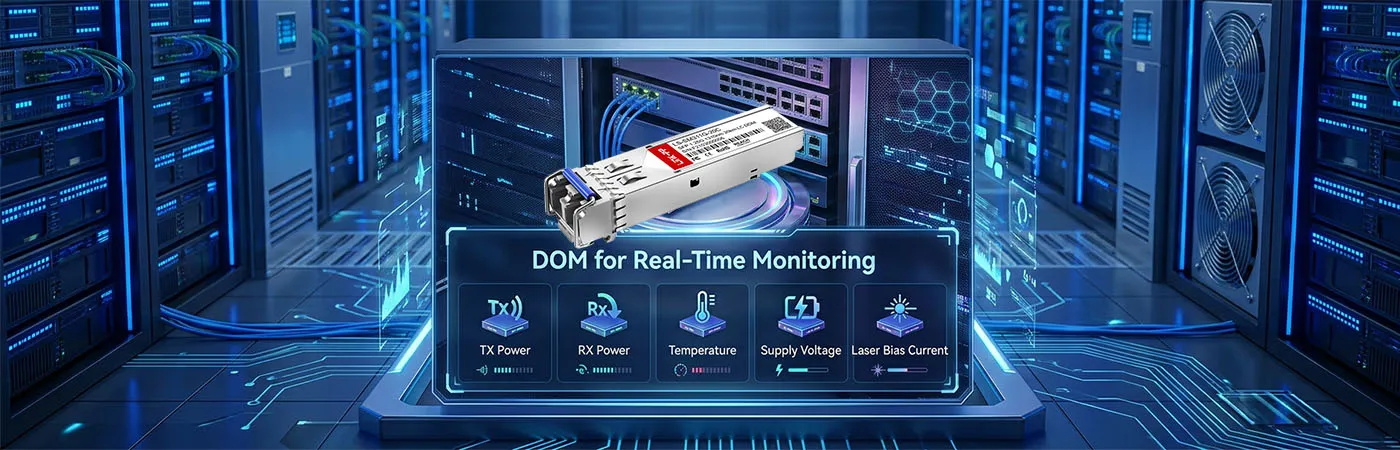

Yes, the LS-SM311G-20C fully supports IEEE 802.3z for Gigabit Ethernet, as well as IEEE 802.3ah-2004. It also features SFF-8472 compliance, allowing for real-time Digital Optical Monitoring (DOM/DDM) metrics directly through your switch interface.

Our outdoor cabinets in Arizona get super hot. This model is 0-70°C commercial grade. Do you have an industrial version that handles extreme temps?

You’ll definitely want our LS-SM311G-20I version for that deployment. It shares the exact same 1310nm 20km optical specs but features an industrial operating temperature range of -40°C to 85°C, perfect for harsh base station backhaul environments.

Hi, we run a mix of Cisco and Fortinet switches in our rack. Will this LS-SM311G-20C play nice with both brands without throwing errors?

Absolutely! This 1G SFP is fully MSA compliant and heavily tested for OEM compatibility across major brands, including Cisco, Fortinet, Juniper, and Dell. It’s truly plug-and-play with zero vendor-lock issues.

Home

Optics Transceivers | SFP Modules

1/2/4G Transceiver Modules

1G SFP

212849

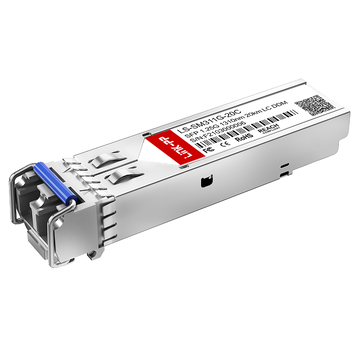

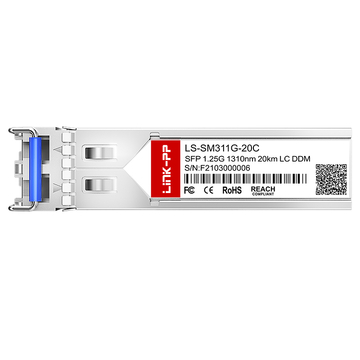

Arista SFP-1G-LX-20 Compatible LINK-PP 1G SFP 1310nm 20km Duplex LC DOM SMF Optical Transceiver Module

Name: SFP-1G-LX-20
Brand: LINK-PP
SKU: 212849
Price: 4.3 USD
Availability: InStock
Rating: 4.9 (14 reviews)

# 212849

For Order Over $1000 Get $15.00 Off , Code:

Linkpp15

For Order Over $3000 Get $50.00 Off , Code:

Linkpp50

For Order Over $5000 Get $100.00 Off , Code:

Linkpp100

New Users: $10 Coupon for Orders , Code:

linkpp2610

: Arista SFP-1G-LX-20 Compatible LINK-PP 1G SFP 1310nm 20km Duplex LC DOM SMF Optical Transceiver Module

14 Reviews Need Help?

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

14 Reviews

4 Questions

Request Stock

634 Sold

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF )

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 5

100

$ 4.75

1000

$ 4.6

3000

$ 4.45

6000

$ 4.3

Manufacture: LINK-PP

P/N: LS-SM311G-20C

Compatible:: Cisco; LINK-PP; Alcatel-Lucent; Arista; Avaya; Brocade; Calix; Ciena; Dell; Extreme; FS; Fortinet; Generic; H3C; IBM; Intel; Juniper; Mikrotik; NVIDIA/Mellanox; Syrotech

Compatible P/N:: SFP1G-SX-31 | 2km; SFP1G-SX-31-I | 2km; SFP-1G-LX | 10km; SFP-1G-LX-20 | 20km; SFP-1G-EX-40 | 40km; SFP-1G-EX1550-40 | 40km; SFP1G-EX-31-I | 40km; SFP-1G-EX-80 | 80km; SFP1G-ZX-55-I | 80km; SFP-1G-EZX-100 | 100km; SFP-1G-EZX-120 | 120km; SFP-1G-EZX-160 | 160km

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

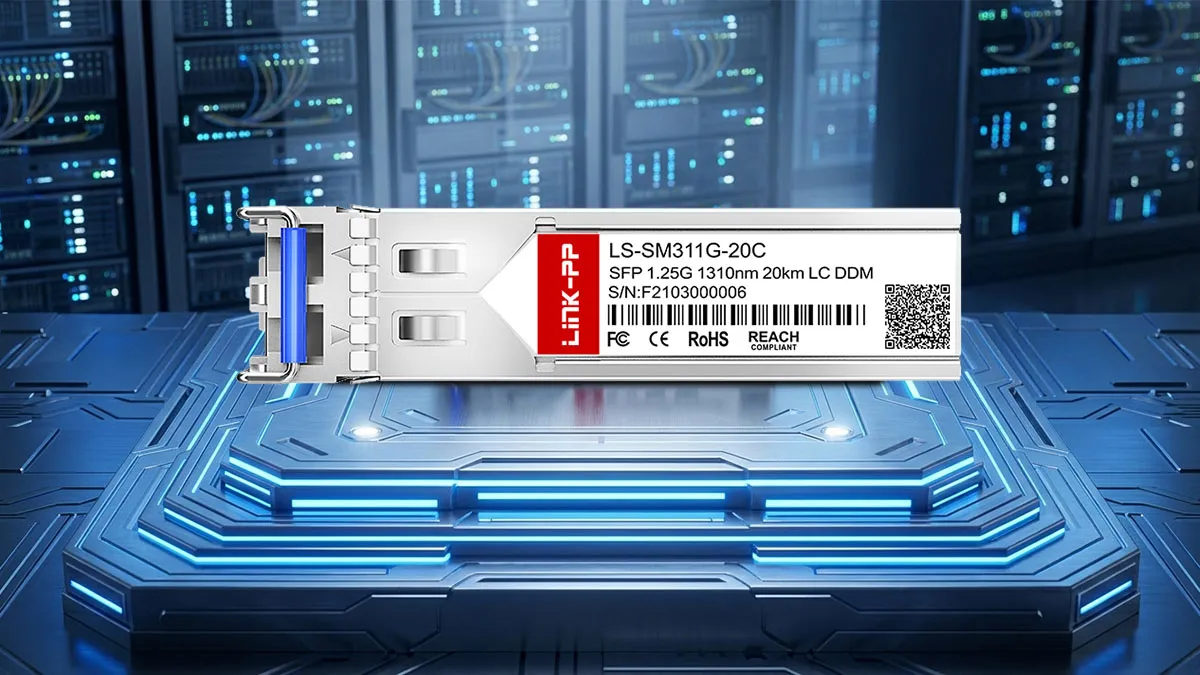

Arista SFP-1G-LX-20 Compatible LINK-PP 1G SFP Specifications

The Arista SFP-1G-LX-20 Compatible LINK-PP module is a high-performance commercial-grade 1G SFP transceiver tailored for standard gigabit ethernet operations. Operating over a 1310nm wavelength, it efficiently delivers high-speed data transmission up to 20km across single-mode fiber infrastructure. Equipped with a duplex LC interface, this hot-pluggable optical module integrates seamlessly into standard network switches, ensuring dependable link performance.

Arista Part Number	SFP-1G-LX-20	Vendor Name	LINK-PP
Form Factor	SFP	Max Data Rate	1.25Gbps
Wavelength	1310nm	Max Cable Distance	20km
Connector	Duplex LC	Media	SMF
Transmitter Type	FP	Receiver Type	PIN
TX Power	-9 to 0dBm	RX Power	-23 to -1dBm
Receiver Sensitivity	-23dBm	DOM Support	Yes
Operating Temperature Range	0 to 70°C	Protocols	SFF-8472 MSA Compliant, IEEE 802.3ah-2004, IEEE 802.3z

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-SM311G-20C.pdf

Questions & Answers
Ask a Question

No data

Q: Getting ready to run SMF for a new office buildout. Does this transceiver require a simplex or duplex patch cable, and what connector type? By J***z on 2026-05-19

A: This optical module utilizes a standard Duplex LC connector interface. You will need a dual-strand Single-Mode Fiber (SMF) patch cable for the dedicated Tx/Rx ports to achieve the maximum 20km transmission distance. By admin on 2026-05-20
Q: I need to ensure this optical module supports legacy protocols for our metro Ethernet setup. Is it compliant with standard IEEE Gigabit specs? By P***s on 2026-04-06

A: Yes, the LS-SM311G-20C fully supports IEEE 802.3z for Gigabit Ethernet, as well as IEEE 802.3ah-2004. It also features SFF-8472 compliance, allowing for real-time Digital Optical Monitoring (DOM/DDM) metrics directly through your switch interface. By admin on 2026-04-07
Q: Our outdoor cabinets in Arizona get super hot. This model is 0-70°C commercial grade. Do you have an industrial version that handles extreme temps? By J***n on 2025-11-28

A: You’ll definitely want our LS-SM311G-20I version for that deployment. It shares the exact same 1310nm 20km optical specs but features an industrial operating temperature range of -40°C to 85°C, perfect for harsh base station backhaul environments. By admin on 2025-11-28
Q: Hi, we run a mix of Cisco and Fortinet switches in our rack. Will this LS-SM311G-20C play nice with both brands without throwing errors? By J***z on 2025-09-13

A: Absolutely! This 1G SFP is fully MSA compliant and heavily tested for OEM compatibility across major brands, including Cisco, Fortinet, Juniper, and Dell. It’s truly plug-and-play with zero vendor-lock issues. By admin on 2025-09-13
