LPJTP96282-8AHNL 2.5g base-t single port rj45 poe++ ethernet pcb connector tab up green yellow led
Click to open expanded view

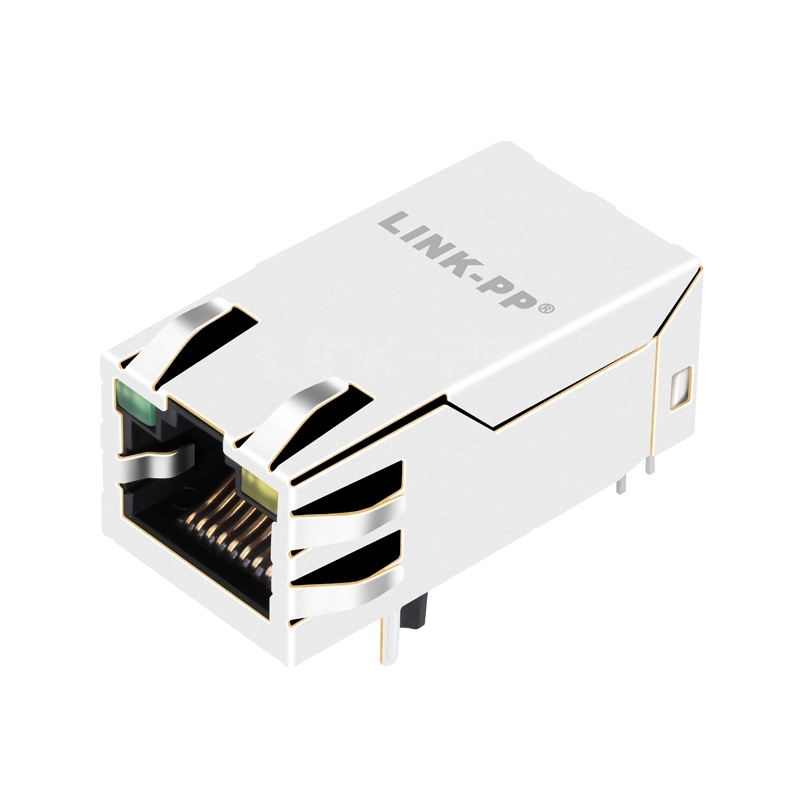

LPJTP96282-8AHNL 2.5G Base-T single port rj45 PoE++ ethernet pcb connector Tab Up Green/Yellow Led

Product summary

Product
LPJTP96282-8AHNL 2.5G Base-T single port rj45 PoE++ ethernet pcb connector Tab Up Green/Yellow Led
SKU
178637
P/N
LPJTP96282-8AHNL
Price
$ 5.03
Stock
4900 in Stock
Sold
15.1K
Unit price $ 5.03
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJTP96282-8AHNLSKU: 178637

LINK-PP originalDatasheetAll downloads

Compatible:
Halo
LINK-PP
Compatible P/N:
LPJTP96282-8AHNL
Volume pricing Online tiers · larger qty or custom price on request
$ 5.030
1–99 pcs
$ 4.121
100–599 pcs
$ 3.619
600–1,199 pcs
$ 2.764
1,200–5,999 pcs
$ 2.362
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
4900 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 60
Total Price:
$ 5.03
Packaging Details
60 pcs
840 pcs
Tray
37×30×30 cm
0.011 kg
9 kg

LINK-PP LPJTP96282-8AHNL 2.5G Base-T single port rj45 PoE++ ethernet pcb connector( Tab Up,Green/Yellow Led)


The LPJTP96282-8AHNL supports speed 2.5G Base-T, It is compliant to IEEE 802.3 bt, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Hub, Surgical Equipment and Patient Care.


LINK-PP Part Number
LPJTP96282-8AHNL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
16p8c (RJ45, Ethernet) Application-Lan
Ethernet(PoE++)
Number of Ports
1x1 PortSpeed
2.5G Base-T
Latch
UpCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.280/32.50

Package Width (Inches/mm)
0.650/16.50Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP
