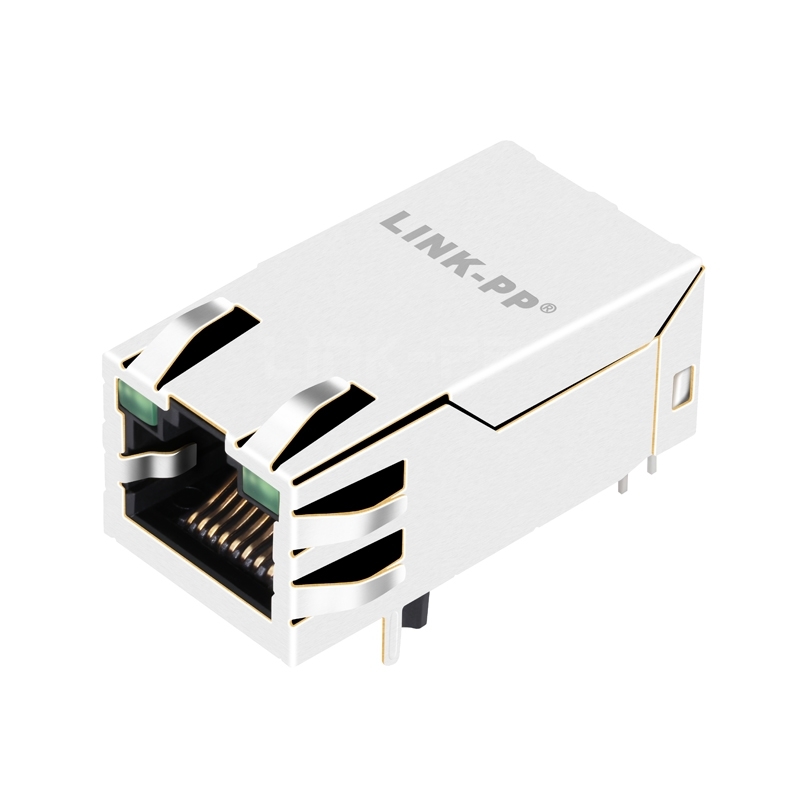

Halo HFJT1-2GHP-L11RL Compatible LPJT95282-8AWNL 2.5G Base-T RJ45 High Speed Magnetic Jack PoE+ Single Port Tab Up Green/Green Led

Product summary

Product
Halo HFJT1-2GHP-L11RL Compatible LPJT95282-8AWNL 2.5G Base-T RJ45 High Speed Magnetic Jack PoE+ Single Port Tab Up Green/Green Led
SKU
178616
P/N
LPJT95282-8AWNL
Price
$ 4.96
Stock
5600 in Stock
Sold
14.4K
Unit price $ 4.96
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJT95282-8AWNLSKU: 178616

Compatible with Halo HFJT1-2GHP-L11RLDatasheetAll downloads

Compatible:
Halo
LINK-PP
Compatible P/N:
HFJT1-2GHP-L11RL
Volume pricing Online tiers · larger qty or custom price on request
$ 4.960
1–99 pcs
$ 4.064
100–599 pcs
$ 3.568
600–1,199 pcs
$ 2.726
1,200–5,999 pcs
$ 2.329
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
5600 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 60
Total Price:
$ 4.96
Packaging Details
60 pcs
840 pcs
Tray
37×30×30 cm
0.011 kg
9 kg

Halo HFJT1-2GHP-L11RL Compatible LINK-PP LPJT95282-8AWNL 2.5G Base-T RJ45 High Speed Magnetic Jack PoE+ ( Single Port, Tab Up,Green/Green Led)


The LPJT95282-8AWNL supports speed 2.5G Base-T, It is compliant to IEEE 802.3 at, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Hub, Surgical Equipment and Patient Care.


LINK-PP Part Number
LPJT95282-8AWNL Halo Part Number
HFJT1-2GHP-L11RL
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
16p8c (RJ45, Ethernet) Application-Lan
Ethernet(PoE+)
Number of Ports
1x1 PortSpeed
2.5G Base-T
Latch
UpCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.280/32.50

Package Width (Inches/mm)
0.650/16.50Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJT95282-8AWNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Use a short low impedance path, not a long ground pour. We measured shell to pad under 0.1 ohm on ten jacks after deflecting every finger, and used a pair of chassis vias right beside the mounting lands. If your bezel is bare metal the tabs can contact it directly, which is the easiest route. Painted or anodised panels need a masked contact patch or separate finger stock, otherwise the spring fingers are doing nothing. by LINK-PP Technical Support
  • A:
    Routing discipline around the jack matters more than the connector. Keep the centre tap traces short and away from switching regulators, hold the four differential pairs within 2 mm of each other, and decouple as the PSE reference specifies. We ran hipot on the assembled board and sampled return loss on five units, all under -20 dB across the band. Verify the PoE+ centre tap pinout before first power up; a wrong bridge connection is not recoverable after the magnetics are populated. by LINK-PP Technical Support
  • A:
    By the steady versus blinking state rather than by colour. The Green/Green pair is chosen so a dark 1U faceplate reads uniformly from a distance, but that means the convention has to be documented in the service manual and fixed in firmware. Keep the two sides on separate PHY outputs so one failed die does not darken both. Confirm polarity with a diode tester before the boards see heat, as these dies are not reverse protected. by LINK-PP Technical Support
  • A:
    No, rebuild the symbol from the LPJT95282-8AWNL drawing and map all 16 positions. Eight carry the Ethernet pairs, but the remainder handle the LED and the PoE+ centre taps, and an 8p8c footprint leaves those pads floating. We saw clean fillets on all 16 under AOI with a 0.8 mm stencil, but only after the symbol was corrected. A copied footprint is the single most common cause of a dead 2.5G link on this part. by LINK-PP Technical Support
