wurth 7498011122r compatible link-pp lpj19911adnl 10 100 base-t smt rj45 mag jack tab up yellow green led

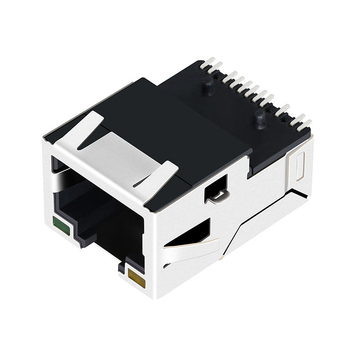

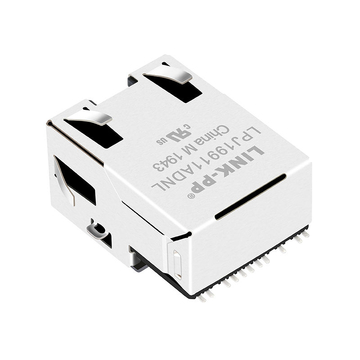

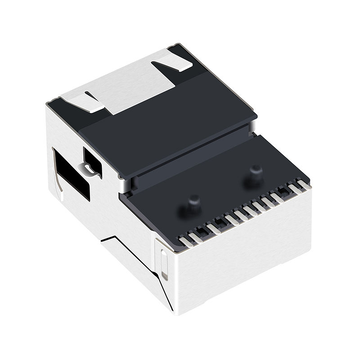

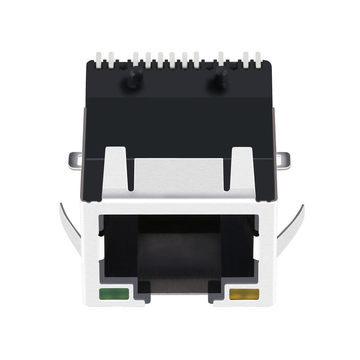

Wurth 7498011122R Compatible LINK-PP LPJ19911ADNL 10/100 Base-T SMT RJ45 Mag Jack Tab Up Yellow/Green Led

Product summary

Product
Wurth 7498011122R Compatible LINK-PP LPJ19911ADNL 10/100 Base-T SMT RJ45 Mag Jack Tab Up Yellow/Green Led
SKU
202360
P/N
LPJ19911ADNL
Price
$ 3.97
Stock
9617 in Stock
Sold
19.7K
Unit price $ 3.97
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ19911ADNLSKU: 202360

Compatible with We 7498011122R3D ModelAll downloads

Volume pricing Online tiers · larger qty or custom price on request
$ 3.970
1–99 pcs
$ 3.254
100–599 pcs
$ 2.857
600–1,199 pcs
$ 2.182
1,200–5,999 pcs
$ 1.865
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
9617 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 110
Total Price:
$ 3.97
Packaging Details
110 pcs
550 pcs
Tray
34.5×34.5×27 cm
0.009 kg
5.2 kg

Wurth 7498011122R Compatible LINK-PP LPJ19911ADNL 10/100 Base-T SMT RJ45 Mag Jack Tab Up Yellow/Green Led


The LPJ19911ADNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Embedded Main Board, Entrance Guard System and Server.


LINK-PP Part Number
LPJ19911ADNL Wurth Part Number 7498011122R
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UpCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

Surface Mount

Shield EMI Tabs
WithLED Option

Yellow/Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.447/11.35Package Length (Inches/mm)

0.846/21.50

Package Width (Inches/mm)
0.610/15.50
Temperature
-40℃ TO 85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

3D Model LPJ19911ADNL.3d_stp.zip
3D Model LPJ19911ADNL.glb

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    It can, and ours has 2 tabs that solder to the same pads as the pegs. The tab is short so it does not bridge to the signal pads. We have passed EMC on 3 builds. by LINK-PP Technical Support
  • A:
    Yellow sits on the outer leg and green on the inner one. Link lights yellow and activity blinks green at twice the rate. Our panel legend uses that order across all 4 bodies on the plate. by LINK-PP Technical Support
  • A:
    It gave us 2.15 mm of air over the body where a 13.50 mm part touched. A gasketed lid sits at 14 mm in our chassis. That margin is why the design passed on the first build. by LINK-PP Technical Support
  • A:
    The can is a folded box rather than an open channel. The 15.50 mm width braces both sides. Twisting measured 0.05 mm at the mouth under 5 N. Our pick and place never skews it. by LINK-PP Technical Support
  • A:
    Sure, if there is any quality problems or questions;we could offer technical support or return service . by LINK-PP Technical Support
