te 1-5406299-1 compatible lpje160cnl rj45 1x1 jack without magnetics tab down without led

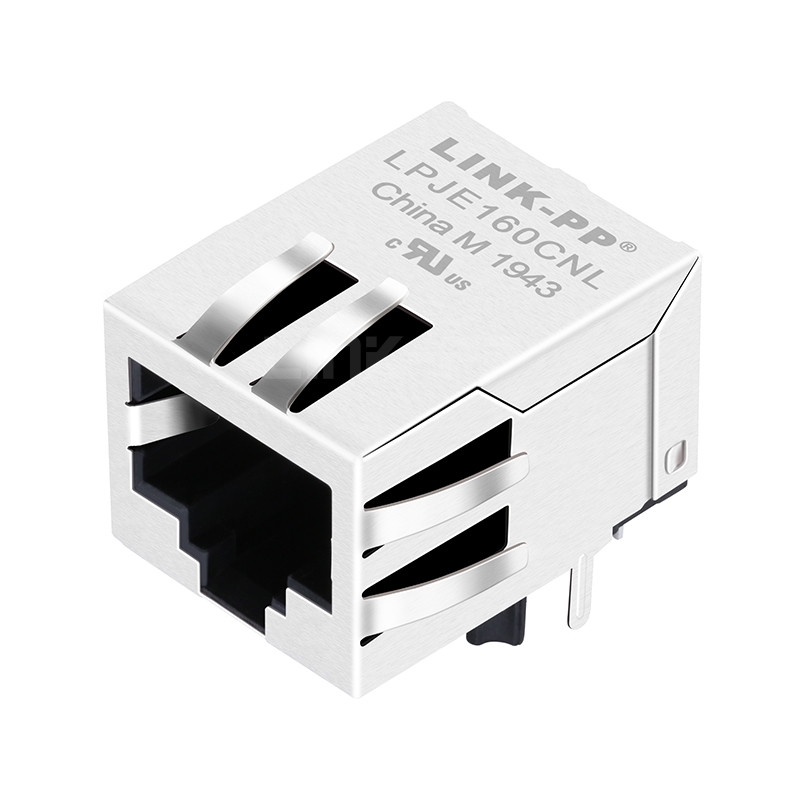

TE 1-5406299-1 Compatible LPJE160CNL RJ45 1X1 Jack without Magnetics Tab Down Without Led

Product summary

Product
TE 1-5406299-1 Compatible LPJE160CNL RJ45 1X1 Jack without Magnetics Tab Down Without Led
SKU
177538
P/N
LPJE160CNL
Price
$ 0.56
Stock
2990 in Stock
Sold
3.3K
Unit price $ 0.56
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJE160CNLSKU: 177538

Compatible with TE 1-5406299-1Datasheet3D ModelAll downloads

Compatible:
TE
LINK-PP
Compatible P/N:
1-5406299-1
Volume pricing Online tiers · larger qty or custom price on request
$ 0.560
1–99 pcs
$ 0.560
100–999 pcs
$ 0.504
1,000–4,999 pcs
$ 0.487
5,000–9,999 pcs
$ 0.476
10,000–14,999 pcs
$ 0.459
≥15,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2990 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 0.56

TE 1-5406299-1 Compatible LINK-PP LPJE160CNL RJ45 Jack without Magnetics for router and Switch(1X1 Port, Tab Down ,Without LED)


LINK-PP Part Number
LPJE160CNL
TE Part Number
1-5406299-1
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
-
Number of Ports
1x1 PortSpeed
-
Latch
DownCores per Port
-
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Without Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.528/13.40Package Length (Inches/mm)

0.831/21.10

Package Width (Inches/mm)
0.626/15.90
Temperature
-40℃ TO 85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJE160CNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The tabs bond the shield to the board and the bezel together. A shielded cable adds its own drain path through the plug. Keep paint off the bezel contact area or the bond goes open. Check continuity after the panel is closed. by LINK-PP Technical Support
  • A:
    The range covers -40℃ through 85℃. Without a transformer, cold reaches only the plastic and the contacts. Behaviour at the low end is set by the housing grade. We saw no change in the plating after a week in the chamber. by LINK-PP Technical Support
  • A:
    Gold plating is offered at 6, 15 or 30 micro inch on the mating area. The option you pick decides the plating thickness. Ask for the drawing if the finish has to match an existing part. by LINK-PP Technical Support
  • A:
    Shield EMI tabs run down both sides of the body. They touch the board pads and the panel. There are no lamps, so the front face is plain apart from the mouth. The body is 13.40 mm high and 15.90 mm wide. by LINK-PP Technical Support
  • A:
    This body ships without magnetics by design. Contacts go from the mouth to the pins with nothing between them. The transformer belongs elsewhere on the board. That keeps its heat away from the jack and the panel. by LINK-PP Technical Support
