hanrun hr901102a compatible lpj0025dnl 10 100 base-t 1 port rj45 magnetic jack shielded tab down without led

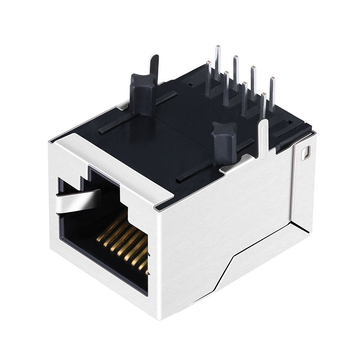

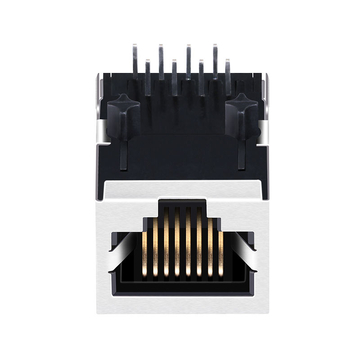

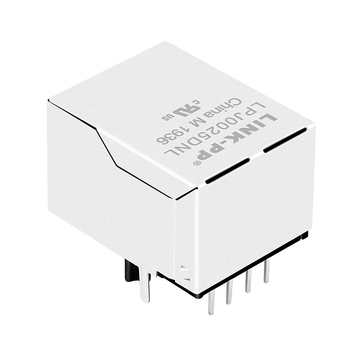

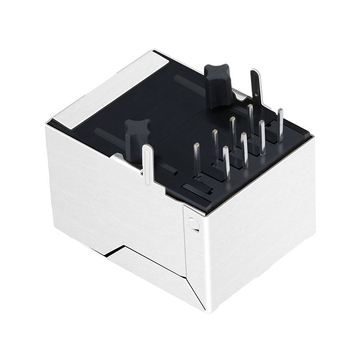

Hanrun HR901102A Compatible LPJ0025DNL 10/100 Base-T 1 Port RJ45 Magnetic Jack Shielded Tab Down Without Led

Product summary

Product
Hanrun HR901102A Compatible LPJ0025DNL 10/100 Base-T 1 Port RJ45 Magnetic Jack Shielded Tab Down Without Led
SKU
177488
P/N
LPJ0025DNL
Price
$ 2.08
Stock
1010 in Stock
Sold
9.8K
Unit price $ 2.08
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ0025DNLSKU: 177488

Compatible with Hanrun HR901102ADatasheet3D ModelAll downloads

Compatible P/N:
HR901102A
Volume pricing Online tiers · larger qty or custom price on request
$ 2.080
1–99 pcs
$ 1.706
100–599 pcs
$ 1.498
600–1,199 pcs
$ 1.145
1,200–5,999 pcs
$ 0.978
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1010 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 2.08
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg

Hanrun HR901102A Compatible LINK-PP LPJ0025DNL 10/100 Base-T Shielded RJ45 Magnetic Jack for Fieldbus System and Game Controller (1 Port, Tab Down, Without Led)


The LPJ0025DNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Solar Inverter, Game Controller, Digital Camera and Game Controller.


LINK-PP Part Number:
LPJ0025DNL Hanrun Part Number
HR901102A
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
Down Cores per Port
5
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Without

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.524/13.30Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm)
0.627/15.93Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJ0025DNL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    A mill program is usually under two megabytes even with the tool path. A hundred megabit link moves that in well under a second. The operator sees the file land on the control before he walks back to the machine. by LINK-PP Technical Support
  • A:
    The shell stands 13.30 mm tall and spans 15.93 mm across the front. Depth inside the panel is 21.25 mm on this number. That cleared the old relay bank without moving a single wire. The retrofit took one afternoon per machine. by LINK-PP Technical Support
  • A:
    This number has no EMI tabs on the shell, same as our other machine side parts. Nothing inside the mill cabinet radiates near the board. We tie the shell to the frame with one short braid. by LINK-PP Technical Support
  • A:
    The board mounts on the frame, not on the spindle head. Our accelerometer logged under two g at the jack during a heavy cut. Two years of that treatment has not loosened a single tail on the board. by LINK-PP Technical Support
  • A:
    The panel door stays shut through a shift and coolant mist fills the space. A lens would fog and hide the state anyway. Without one the front stays a flat plate that wipes clean with a rag. by LINK-PP Technical Support
  • A:
    The mill only carries a serial port and has no network card at all. Our interface board puts a hundred megabit jack right beside the old controller. The operator sends a program from the office now. Nobody carries a floppy disk out to the shop floor any more. by LINK-PP Technical Support

Customer Reviews

  • 5

    57 Reviews

  • 5 Stars
    98%
    4 Stars
    2%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (57)
No data
N***y
Verified Purchase
4.0
2026-11-15
A few boxes came in scuffed on the outside, though the jacks were fine. The transformer is wound for 100 megabit, which is all these boards ever ran.
D***t
Verified Purchase
5.0
2026-03-09
One port per jack, one hole in the panel. It sat within spec on the height.
C***e
Verified Purchase
5.0
2025-09-15
Eight positions, all data, and nothing left over for a lamp, which is exactly what these boards were laid out for. We have ordered it many times and the footprint has not moved once. The panel cut needed no filing, no fuss.
R***n
Verified Purchase
5.0
2025-05-13
LPJ0025DNL, the one we keep on the shelf. It pinned out first time.
J***d
Verified Purchase
5.0
2025-03-02
Latch tucked under, the cable drops away. It went in without touching the neighbour, no fuss.
