hanrun hy901157a compatible lpj0017dnl 10 100 base-t single port magnetic rj45 jack with transformer tab down without led
Click to open expanded view

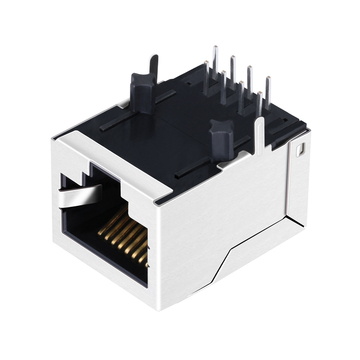

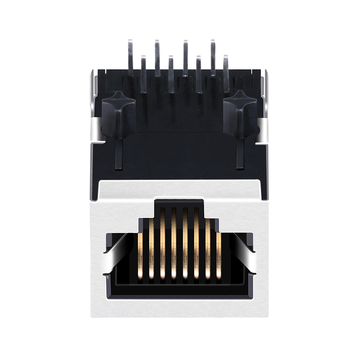

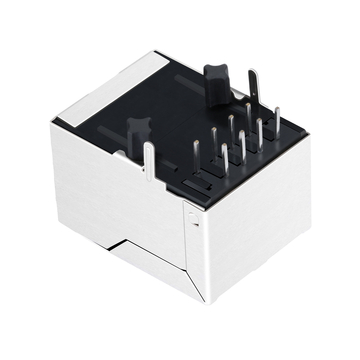

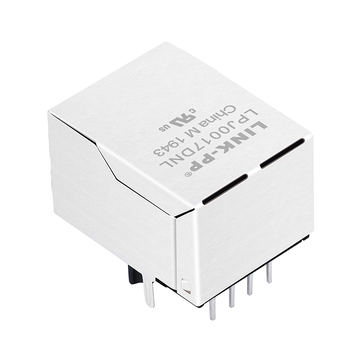

Hanrun HY901157A Compatible LPJ0017DNL 10/100 Base-T Single Port Magnetic RJ45 Jack with transformer Tab Down Without Led

Product summary

Product
Hanrun HY901157A Compatible LPJ0017DNL 10/100 Base-T Single Port Magnetic RJ45 Jack with transformer Tab Down Without Led
SKU
177457
P/N
LPJ0017DNL
Price
$ 2.06
Stock
3900 in Stock
Sold
16.1K
Unit price $ 2.06
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ0017DNLSKU: 177457

Compatible with Hanrun HY901157ADatasheetAll downloads

Compatible P/N:
HY901157A
Volume pricing Online tiers · larger qty or custom price on request
$ 2.060
1–99 pcs
$ 1.688
100–599 pcs
$ 1.482
600–1,199 pcs
$ 1.132
1,200–5,999 pcs
$ 0.967
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
3900 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 2.06
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg

Hanrun HY901157A Compatible LINK-PP LPJ0017DNL 10/100 Base-T Magnetic RJ45 Jack with transformer for Smart Meters and Satellite (Single Port, Tab Down,Without Led)


The LPJ0017DNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Meters, Router, Automation and Network Firewall.


LINK-PP Part Number:
LPJ0017DNL Hanrun Part Number
HY901157A
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
Down Cores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Without

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.524/13.30Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm)
0.627/15.93Temperature

0 TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP
