LPJU3836AONL 1000 base-t rj45 magjack with single usb tab up orange&green yellow led
Click to open expanded view

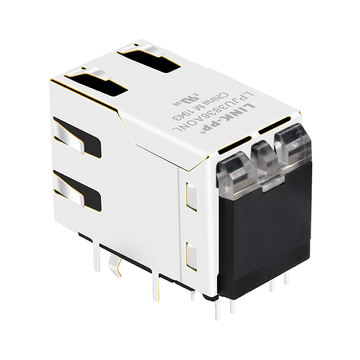

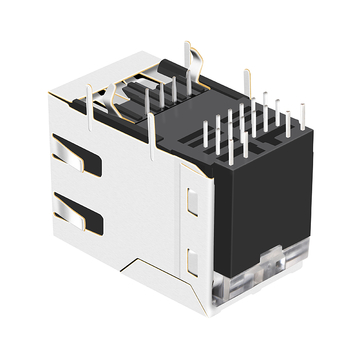

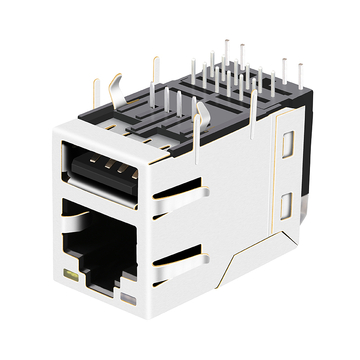

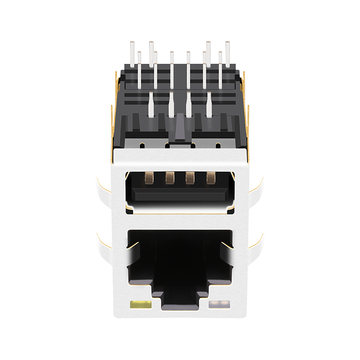

LPJU3836AONL 1000 Base-T RJ45 Magjack with Single USB Tab Up Orange&Green/Yellow LED

Product summary

Product
LPJU3836AONL 1000 Base-T RJ45 Magjack with Single USB Tab Up Orange&Green/Yellow LED
SKU
173072
P/N
LPJU3836AONL
Price
$ 4.85
Stock
2940 in Stock
Sold
40K
Unit price $ 4.85
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJU3836AONLSKU: 173072

LINK-PP originalDatasheetAll downloads

Compatible P/N:
LPJU3836AONL
Volume pricing Online tiers · larger qty or custom price on request
$ 4.850
1–99 pcs
$ 3.977
100–599 pcs
$ 3.492
600–1,199 pcs
$ 2.668
1,200–5,999 pcs
$ 2.280
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2940 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 40
Total Price:
$ 4.85
Packaging Details
40 pcs
720 pcs
Tray
37×30×30 cm
0.014 kg
10.2 kg

LINK-PP LPJU3836AONL 100/1000 Base-T RJ45 Magjack for Smart Camera and Monitoring System(with Single USB ,Tab Up,Orange&Green/Yellow LED)

The LPJU3836AONL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Camera, Monitoring System,1/0 Controller and Alarm.

LINK-PP Part Number LPJU3836AONL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 12p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports Single Port with Single USB Speed 100/1000 Base-T
Latch UP Cores per Port 8
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Orange&Green/Yellow Led

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.822/20.89 Package Length (Inches/mm)

1.142/29.00

Package Width (Inches/mm) 0.654/16.60 Temperature -40℃ TO 85℃
Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJU3836AONL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The LPJU3836AONL temperature row spans -40℃ to 85℃, with the assembled case in view. That grade targets cameras and outdoor boxes rather than desk gear. Your test fixture proves the part on the real link, on the released board drawing. by LINK-PP Technical Support
  • A:
    LPJU3836AONL is rated for 1000 Base-T across the single RJ45 cavity, for that board spin. The USB port runs on its own lines and does not share that pair. The assembly drawing fixes the orientation you use, on the released board drawing. by LINK-PP Technical Support
  • A:
    The LPJU3836AONL shell carries EMI shield tabs at the front, before the box build starts up. Grounding them well is still the job of your own layout, on that row. Whoever owns the schematic signs that off, on the released board drawing. by LINK-PP Technical Support
  • A:
    LPJU3836AONL lists twelve positions in an 8p8c RJ45 arrangement, before the box build starts up. The extra contacts serve the indicator and USB side of the shell, on our sheet. The sourcing team confirms the reel format, on the released board drawing. by LINK-PP Technical Support
