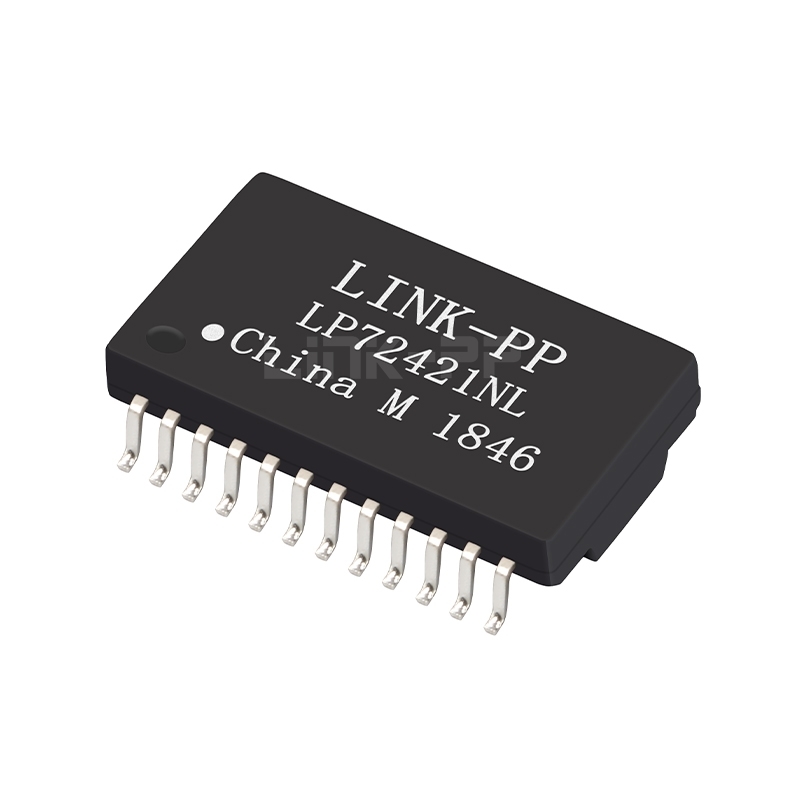

LP72421NL 5G Base -T Single Port 24 Pin SMD Magnetic Transformer Modules
  • LP72421NL 5G Base -T Single Port 24 Pin SMD Magnetic Transformer Modules thumb image 1
  • LP72421NL 5G Base -T Single Port 24 Pin SMD Magnetic Transformer Modules thumb image 2

LP72421NL 5G Base -T Single Port 24 Pin SMD Magnetic Transformer Modules

#161641
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

LP72421NL 5G Base -T Single Port 24 Pin SMD Magnetic Transformer Modules

  • ￥  340.75

    1200 in Stock

 23 Reviews
0 Questions
Request Stock
16.8K Sold
￥  340.75
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
￥ 340.75
750
￥ 245.43
1500
￥ 225.015
3000
￥ 194.243
12000
￥ 146.658
P/N: LP72421NL
Compatible:
LINK-PP
Competitor P/N:
LP72421NL
Shipping:
￥ 3,506.57
to Portugal Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
1200 in Stock .
Quantity:
Total Price:
￥ 340.75
Packaging Details:
0.002kg
Reel
750pcs
3000pcs
37*37*25cm
7kg
Add to wish

LINK-PP LP72421NL 5G Base-T Magnetic Transformer Modules For Handheld Device (SMD,24 PIN,Single Port )

The LP72421NL speed 5G Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to Router, Intercom,The Handheld Device, Operation Generator.

LINK-PP Part Number:
 LP72421NL Transformer Type
 Lan Transformer
Part Status
 Active Turns Ratio - Primary:Secondary
 1:1 Transmitter, 1:1 Receiver
Construction
 OPEN FRAME
 Application-Lan
 Ethernet(NON PoE)
Number of Ports
Single PortSpeed
5G Base-T
Package
Tape & ReelCores per Port
8
AutomDX
YesComment

SAME AS NL VERSION

PIN number
24
Mounting Type

Surface Mount

Package Height (Inches/mm)
0.224/5.70Package Length (Inches/mm)0.715/18.15
Package Width (Inches/mm)
0.630/16.00Temperature
0℃ TO +70℃
Turns Ratio RX/TX
1CT:1CT
Configuration RX/TX
T,C,S


  1. Magnetic Transformer Modules
  2. 5G SMD Magnetic Transformer
