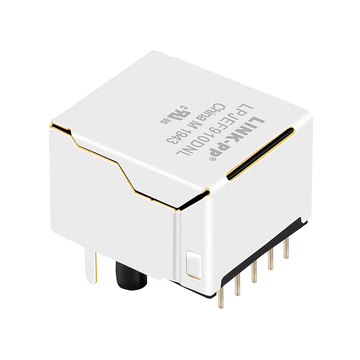

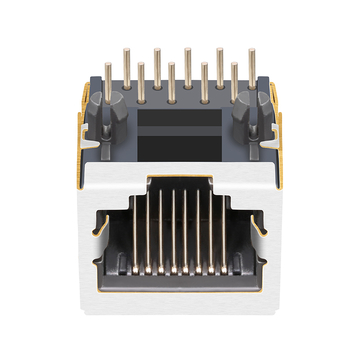

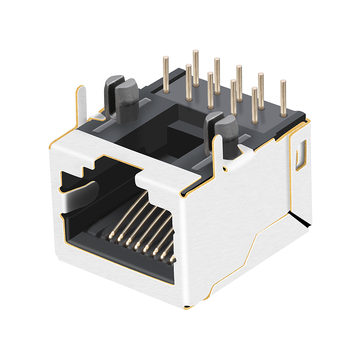

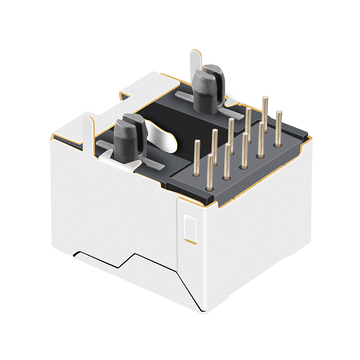

LPJEF910DNL without led side entry pcb panel mount rj45 jack without integrated magnetics

LPJEF910DNL Without Led Side Entry Pcb Panel Mount RJ45 Jack Without Integrated Magnetics

Product summary

Product
LPJEF910DNL Without Led Side Entry Pcb Panel Mount RJ45 Jack Without Integrated Magnetics
SKU
154934
P/N
LPJEF910DNL
Price
$ 0.50
Stock
2109 in Stock
Sold
10.5K
Unit price $ 0.50
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJEF910DNLSKU: 154934

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
LINK-PP
Compatible P/N:
LPJEF910DNL
Volume pricing Online tiers · larger qty or custom price on request
$ 0.500
1–99 pcs
$ 0.500
100–999 pcs
$ 0.450
1,000–4,999 pcs
$ 0.435
5,000–9,999 pcs
$ 0.425
10,000–14,999 pcs
$ 0.410
≥15,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2109 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 100
Total Price:
$ 0.50
Packaging Details
100 pcs
3000 pcs
Tray
54.5×28.5×27 cm
0.004 kg
13.1 kg

LINK-PP LPJEF910DNL Side Entry Pcb Connector RJ45 Panel Mount Jack without Integrated Magnetics(1X1 Port , Tab Down ,Without LED)

The LPJEF910DNL supports speed 10/100 Base-T, it is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001, ISO14001 standards. It can be used to support application, such as Embedded Main Board,Entrance Guard System, switch and router.


LINK-PP Part Number:
LPJEF910DNL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
-
Number of Ports
1x1 PortSpeed
-
Latch
UpCores per Port
-
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Without Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.481/12.23Package Length (Inches/mm)

0.724/18.40

Package Width (Inches/mm)
0.630/16.00
Temperature
-40℃ TO 85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJEF910DNL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    We took one unit off the plate four times. The ears showed no crease and the threads held. A fifth removal would still be fine on this sample. Only the paint at the screw heads wore. by LINK-PP Technical Support
  • A:
    A single transformer per port, on the board side. We placed it 6 mm behind the tails. The pair runs straight through with no via. Length stayed short enough for the gigabit module we paired it with. by LINK-PP Technical Support
  • A:
    From the edge of the board, parallel to it. The mouth faces the panel opening and the latch sits on top. Our housing brought the cable in along the inner wall. That avoided a sharp turn at the plug. by LINK-PP Technical Support
  • A:
    We do not, since the port sits where an operator can see the plug. Link state comes from the switch panel instead. A tester covered the bench runs. The plain face left no small opening to clog. by LINK-PP Technical Support
  • A:
    The ears sit within that 12.23 mm envelope. Below the plate only the contact tails and two posts show. We had 14 mm of clear depth in the housing. A cable bend fitted inside it. by LINK-PP Technical Support
  • A:
    Two moulded ears take a screw each at the ends of the body. The shell then sits behind the plate, not through it. We mounted six units from the front with a driver. None of them shifted when a cable was pulled. by LINK-PP Technical Support

Customer Reviews

  • 5

    68 Reviews

  • 5 Stars
    96%
    4 Stars
    4%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (68)
No data
F***d
Portugal
Verified Purchase
5.0
2026-11-14
Our field box has the mouth in the side wall, with the card on rails behind it. A board mount jack would have needed a bracket and a jumper, so this panel part removed both. 16.00 mm across filled the existing hole with no rework. 150 boxes in service, no mouth shifted.
H***e
Verified Purchase
5.0
2026-05-27
Tab down, so the lead falls inside the box. No drama unpacking it on the line.
D***d
Verified Purchase
5.0
2026-01-30
The mouth sits in the panel and the board slides behind it, which made assembly easy. No surprises on the overall length.
Y***a
Verified Purchase
5.0
2025-06-12
No magnetics, our block sits on the card. The contacts came up within spec.
N***d
Verified Purchase
5.0
2025-01-10
Panel mount, no bracket. The pitch was within spec against the old part.
