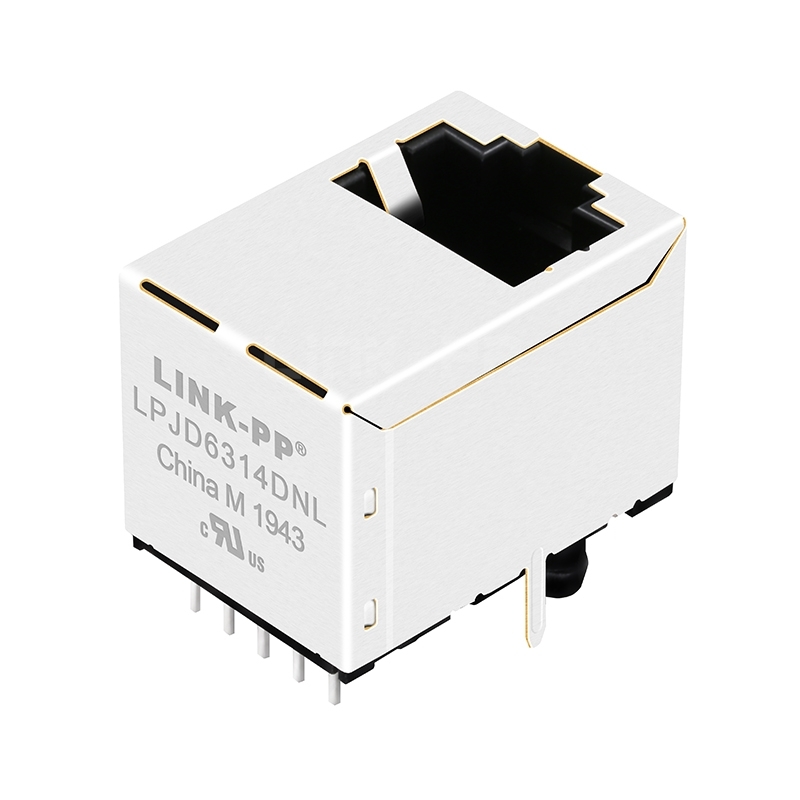

Pulse JXD3-0003NL Compatible LINK-PP LPJD6314DNL 10/100 Without LED Vertical Lan Ethernet RJ45

Product summary

Product
Pulse JXD3-0003NL Compatible LINK-PP LPJD6314DNL 10/100 Without LED Vertical Lan Ethernet RJ45
SKU
137538
P/N
LPJD6314DNL
Price
$ 3.53
Stock
3600 in Stock
Sold
23.8K
Unit price $ 3.53
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJD6314DNLSKU: 137538

Compatible with Pulse JXD3-0003NLDatasheet3D ModelAll downloads

Compatible:
Pulse
LINK-PP
Compatible P/N:
JXD3-0003NL
Volume pricing Online tiers · larger qty or custom price on request
$ 3.530
1–99 pcs
$ 2.892
100–599 pcs
$ 2.539
600–1,199 pcs
$ 1.940
1,200–5,999 pcs
$ 1.658
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
3600 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 40
Total Price:
$ 3.53
Packaging Details
40 pcs
640 pcs
Tray
37×30×30 cm
0.012 kg
7.5 kg

Pulse JXD3-0003NL Compatible LINK-PP LPJD6314DNL 10/100 Base-T Vertical Lan Ethernet RJ45 For Ethernet Control (Top Entry Without LED)


The LPJD6314DNL speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Alarm, SMPS, Entrance Guard System.


LINK-PP Part Number:
LPJD6314DNL Pulse Part Number JXD3-0003NL
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UpCores per Port
4
Orientation
180° Angle (Right)PCB Mount Angle

THT Solder

Shield EMI Tabs
WithoutLED Option

Without Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.660/16.76Package Length (Inches/mm)

0.911/23.15

Package Width (Inches/mm)
0.634/16.10
Temperature
-40℃ TO 85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJD6314DNL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    No LED is fitted on the LPJD6314DNL front in the listing, with the case open. Status then has to come from your own controller, before the box build begins. Your gauge checks the width the print claims, on the issued board print. by LINK-PP Technical Support
  • A:
    LPJD6314DNL is a 10/100 PoE jack built for one top entry port, at the port face. That matches a small camera or sensor board, on the issued board print. The sustaining team reviews the fit next spin, before the box build begins. by LINK-PP Technical Support
  • A:
    No EMI shield tab appears on the LPJD6314DNL outer can, with the finished case in view. Power still flows, though the EMI path depends on your ground. A mock housing shows whether the latch clears, before the box build begins. by LINK-PP Technical Support
  • A:
    LPJD6314DNL is a top entry part, so the cable comes straight down, for this job. Top entry suits a board under a horizontal panel, with the finished case in view. The line engineer sets the tape format, before the box build begins. by LINK-PP Technical Support

Customer Reviews

  • 5

    111 Reviews

  • 5 Stars
    99%
    4 Stars
    1%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (111)
No data
B***n
Ireland
Verified Purchase
5.0
2026-11-14
Before the first build we walked the housing: ten contacts, four cores, the clip above the mouth, a shell with no fingers, no lamp window, and 16.76 mm of height that still fits under the lid. LPJD6314DNL met all six and every plug seated square on the first push. Three hundred out, good.
M***n
Verified Purchase
5.0
2025-07-04
Body 16.76 mm high, 16.10 mm across. It sat within spec on the height.
I***u
Verified Purchase
5.0
2025-03-19
No lamps on this part, so the front needs no window and our label covers the whole face. That also kept the housing mould as it was. The packing held up through the trip. =)
R***a
Verified Purchase
5.0
2024-06-07
Four cores carry two pairs, lands first pass. It sat within spec at both temperature ends.
W***n
Verified Purchase
5.0
2023-11-30
A 10/100 jack, top entry, wired for a powered drop. The contacts came up within spec.
