LP82401HNL 2.5g base -t single port low profile lan transformer magnetic modules smt 24 pin

LP82401HNL 2.5G Base -T Single Port Low Profile Lan Transformer Magnetic Modules SMT 24 Pin

Product summary

Product
LP82401HNL 2.5G Base -T Single Port Low Profile Lan Transformer Magnetic Modules SMT 24 Pin
SKU
135201
P/N
LP82401HNL
Price
$ 2.28
Stock
1300 in Stock
Sold
283.6K
Unit price $ 2.28
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP82401HNLSKU: 135201

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
LINK-PP
Compatible P/N:
LP82401HNL
Volume pricing Online tiers · larger qty or custom price on request
$ 2.280
1–99 pcs
$ 1.870
100–599 pcs
$ 1.642
600–1,199 pcs
$ 1.254
1,200–5,999 pcs
$ 1.072
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1300 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 800
Total Price:
$ 2.28
Packaging Details
800 pcs
4800 pcs
Reel
37×37×25 cm
0.002 kg
9.6 kg

LP82401HNL Single Port, 2.5G BASE-T Low Profile Ethernet Transformer Modules, SMD, Rohs

LINK-PP Part Number LP82401HNL Transformer Type Lan Transformer
Part Status Active Turns Ratio - Primary:Secondary 1:1 Transmitter, 1:1 Receiver
Construction OPEN FRAME Application-Lan Ethernet(NoN PoE)
Number of Ports Single Port Speed 2.5G Base-T
Package Tape & Reel Cores per Port 8
AutomDX Yes Comment

SAME AS NL VERSION

PIN number 24 Mounting Type

Surface Mount

Package Height (Inches/mm) 0.157/4.0 Package Length (Inches/mm) 0.594/15.10
Package Width (Inches/mm) 0.394/10.0 Temperature 0℃ TO +70℃
Turns Ratio RX/TX 1CT:1CT Configuration RX/TX T,C,S

LINK-PP

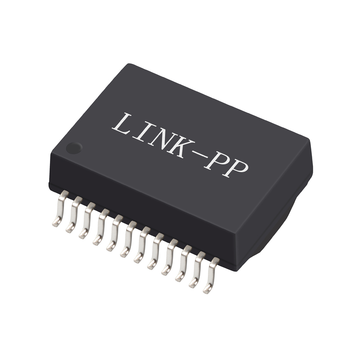

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

3D Model LP82401HNL.zip
3D Model LP82401HNL.glb

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The maker rates it from 0 ℃ to 70 ℃. That suits an indoor box but not a pole. We used it behind a door in a climate controlled room. For anything outdoors, pick the wider rated part in the same family. by LINK-PP Technical Support
  • A:
    At 4.00 mm the body slides under a lid that a standard module would hit. The footprint is 15.10 by 10.00 mm, which left room for the PHY beside it. We built 25 units and every port linked at 2.5G on the first plug. by LINK-PP Technical Support
  • A:
    Eight cores are enough for both, because 2.5G still runs on four pairs. The difference is in the winding and the choke quality, not the count. This module is 4.00 mm tall on a 24 pin body and covered our 2.5G uplink. by LINK-PP Technical Support
  • A:
    Thanks for your message , LPJK0017AINL working temperature is at 0℃ TO +70℃. by LINK-PP Technical Support

Customer Reviews

  • 5

    63 Reviews

  • 5 Stars
    98%
    4 Stars
    2%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (63)
No data
S***k
Verified Purchase
5.0
2026-11-14
No lamps and no contacts, just the magnetics. Link and activity were easy to tell apart, as advertised.
C***y
Verified Purchase
5.0
2026-06-17
Twenty four pads went through 245℃ with the rest of the board, no rework. We have run four builds and the yield has stayed. It pinned out first time.
C***t
Austria
Verified Purchase
5.0
2026-02-22
Rated 0℃ to 70℃, which covered our sealed indoor card bay with no trouble at all :D
H***a
Verified Purchase
5.0
2025-09-29
No shell, no fingers, none needed. The header took it first time.
S***y
Verified Purchase
5.0
2025-05-07
Eight cores on the frame, all four pairs landed. It cleared hipot first try.
