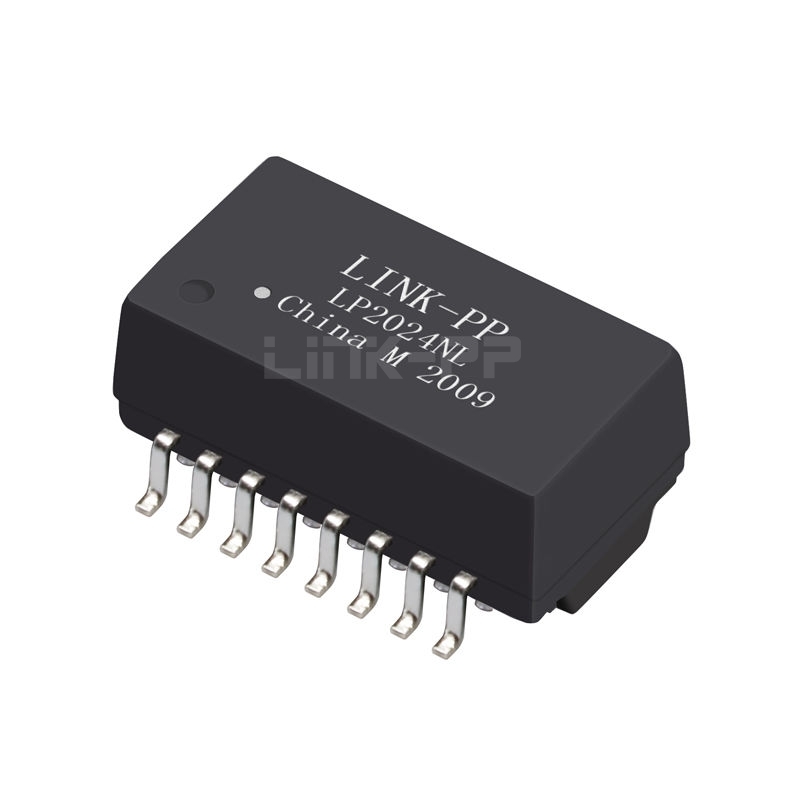

LP2024NL 10 Base -T Single Port lan magnetics transformer 16 Pin SMD

LP2024NL 10 Base -T Single Port lan magnetics transformer 16 Pin SMD

#135194
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100
59 Reviews
1 Questions
Request Stock
89K Sold
C$  1.898
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
10
C$ 1.898
600
C$ 1.253
2400
C$ 1.007
9600
C$ 0.912
21600
C$ 0.816
P/N: LP2024NL
Compatible:
LINK-PP
Pulse
Competitor P/N:
LP2024NL
Shipping:
C$ 40.08
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
100 in Stock .
Quantity:
Total Price:
C$ 1.898
Packaging Details:
0.003kg
Reel
600pcs
2400pcs
38*38*18cm
7kg

LINK-PP LP2024NL 10 Base -T Single Port lan magnetics transformer 16 Pin SMD


LINK-PP Part Number
LP2024NL Transformer Type
Lan Transformer
Part Status
Active Turns Ratio - Primary:Secondary
1:1 Transmitter, 1:1 Receiver
Construction
OPEN FRAME
Application-Lan
Ethernet(NoN PoE)
Number of Ports
Single PortSpeed
10 Base-T
Package
Tape & ReelCores per Port
4
AutomDX
YesComment

SAME AS NL VERSION

PIN number
16
Mounting Type

Surface Mount

Package Height (Inches/mm)
0.226/5.75Package Length (Inches/mm)0.500/12.70
Package Width (Inches/mm)
0.366/9.30Temperature
-40℃ TO +85℃
Turns Ratio RX/TX
1CT:1CT
Configuration RX/TX
T,C,S


Download

Product Drawing
