LPJ0012AHNL 10/100 Base-T Single Port Magnetic Ethernet RJ45 Connector Tab Down Green/Yellow LED

Product: LPJ0012AHNL 10/100 Base-T Single Port Magnetic Ethernet RJ45 Connector Tab Down Green/Yellow LED
SKU: 106012
P/N: LPJ0012AHNL
Price: $ 2.07
Stock: 564 in Stock
Sold: 200
Product URL: https://www.l-p.com/products/439848.htm

97 Reviews

1 Questions

200Sold

Unit price $ 2.07

New Users: $ 10.00 Coupon on Your First Order

Code linkpp2610

For Order Over $ 1,000.00 Get $ 15.00 Off

Code Linkpp15

For Order Over $ 3,000.00 Get $ 50.00 Off

Code Linkpp50

For Order Over $ 5,000.00 Get $ 100.00 Off

Code Linkpp100

P/N: LPJ0012AHNLSKU: 106012

LINK-PP originalDatasheet 3D Model All downloads

Compatible:: LINK-PP; EDAC; X multiple

Compatible P/N:: LPJ0012AHNL

Volume pricing Online tiers · larger qty or custom price on request

$ 2.070

1–99 pcs

$ 1.699

100–599 pcs

$ 1.492

600–1,199 pcs

$ 1.140

1,200–5,999 pcs

$ 0.974

≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:

564 in Stock

Shipping:

$ 29.47

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Free shipping over $ 600.00.

Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).

Quantity:

SPQ 50

Total Price:

$ 2.07

Packaging Details

SPQ:50 pcs
Qty/carton:1200 pcs
Package:Tray
Carton size:32×30×31 cm
N.W/pcs:0.007 kg
G.W./carton:8.5 kg

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LPJ0012AHNL 10/100 Base-T Magnetic Ethernet RJ45 Connector for Hub and Switches( Single Port, Tab Down, Green/Yellow Led)

The LPJ0012AHNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Switches, Ethernet Control, Hub and Entrance Guard System.

LINK-PP Part Number:	LPJ0012AHNL	Connector Type	Jack
Part Status	Active	Mounting Type	Through Hole
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100 Base-T
Latch	Down	Cores per Port	4
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Green/Yellow
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.524/13.30	Package Length (Inches/mm)	0.837/21.25
Package Width (Inches/mm)	0.627/15.93	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

Ethernet RJ45 Connector

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

LPJ0012AHNL Drawing LPJ0012AHNL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question

Q:
Can I get some samples? by T***k

A:
Yes, 3-5 pcs free samples are available for your test. Small batches are also acceptable. by LINK-PP Technical Support

Customer Reviews

5

97 Reviews
5 Stars

100%

4 Stars

0%

3 Stars

0%

2 Stars

0%

1 Star

0%

All Reviews (97)

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only

No data

G***s

Norway

Verified Purchase

5.0

2023-05-20

This thing was ultra cheap, worked amazingly at advertised speeds and came super fast. awesome service and support great product. will def. buy again in a heartbeat

65 Helpful Comments

J***x

United States

Verified Purchase

5.0

2023-03-21

While I appreciate the low cost, fast delivery and wide choice of quality products, I most appreciate the ease of getting detailed information for making a highly informed decision. Thanks again.

26 Helpful Comments

J***g

Spain

Verified Purchase

5.0

2023-03-16

Great price, great product!

13 Helpful Comments

c***a

Bulgaria

Verified Purchase

5.0

2023-03-03

Very responsible and fast 100% reccommended

24 Helpful Comments

J***e

Singapore

Verified Purchase

5.0

2022-12-21

Good products and prices. Poor communication. Email status is slow/delayed.

45 Helpful Comments

Verified Purchase

Showing comment

Helpful Comments

No reviews yet

Be the first to share your experience with this product.

Write a Review

You May Also Like

10/100 Base-T PoE RJ45 Magjack With Rectifier Bridge Tab Down Green/Yellow LED

LINK-PP | LPJ0155HENL

40 Reviews
|
31.6K Sold

$ 2.49 ~ $ 5.29

{"pid":470305,"minimum_ordered_quantity":1,"skulist":[{"pskuid":172323,"cid":752,"pid":470305,"sku":"172323","psvid1":262913,"psvid2":262914,"psvid3":0,"psvid4":0,"left_num":1200,"price":"5.291","strike_price":"0.000","innercode":"","addtime":"2023-07-02 09:59:36","uptime":"2023-07-02 23:59:36","status":0}],"shippingLists":[{"id":"FEDEX","name":"FedEx IP","logo":"res\/shipping\/FEDEX.jpg","price":"29.47","isfree":0,"total":"29.47","datemin":3,"datemax":6,"unit_price":"5.29","subtotal":5.29}]}
RJ45 PoE Magjack 10P8C 10/100 Base-T Tab Down Green/Yellow Led

LINK-PP | LPJ0190HENL

84 Reviews
|
10.9K Sold

$ 2.49 ~ $ 5.29

{"pid":457553,"minimum_ordered_quantity":1,"skulist":[{"pskuid":142574,"cid":752,"pid":457553,"sku":"142574","psvid1":246845,"psvid2":246846,"psvid3":0,"psvid4":0,"left_num":950,"price":"5.291","strike_price":"0.000","innercode":"","addtime":"2021-09-05 04:50:59","uptime":"2022-05-25 23:40:30","status":0}],"shippingLists":[{"id":"FEDEX","name":"FedEx IP","logo":"res\/shipping\/FEDEX.jpg","price":"29.47","isfree":0,"total":"29.47","datemin":3,"datemax":6,"unit_price":"5.29","subtotal":5.29}]}
10/100 Base-T PoE Jack RJ45 Connector With Rectifier Bridge Tab Down Yellow/Green Led

LINK-PP | LPJ0190-8GDNL

22 Reviews
|
9.1K Sold

$ 2.49 ~ $ 5.29

{"pid":481908,"minimum_ordered_quantity":1,"skulist":[{"pskuid":184979,"cid":752,"pid":481908,"sku":"184979","psvid1":271777,"psvid2":271778,"psvid3":0,"psvid4":0,"left_num":660,"price":"5.291","strike_price":"0.000","innercode":"","addtime":"2024-10-21 12:15:40","uptime":"2024-10-22 02:15:40","status":0}],"shippingLists":[{"id":"FEDEX","name":"FedEx IP","logo":"res\/shipping\/FEDEX.jpg","price":"29.47","isfree":0,"total":"29.47","datemin":3,"datemax":6,"unit_price":"5.29","subtotal":5.29}]}
10/100 Base-T PoE RJ45 Magjack With Rectifier Diode Tab Down Without LED

LINK-PP | LPJ0190CNL

18 Reviews
|
16K Sold

$ 2.46 ~ $ 5.24

{"pid":474023,"minimum_ordered_quantity":1,"skulist":[{"pskuid":178259,"cid":752,"pid":474023,"sku":"178259","psvid1":266859,"psvid2":266860,"psvid3":0,"psvid4":0,"left_num":4000,"price":"5.241","strike_price":"0.000","innercode":"","addtime":"2024-01-11 08:43:33","uptime":"2024-01-11 22:43:33","status":0}],"shippingLists":[{"id":"FEDEX","name":"FedEx IP","logo":"res\/shipping\/FEDEX.jpg","price":"29.47","isfree":0,"total":"29.47","datemin":3,"datemax":6,"unit_price":"5.24","subtotal":5.24}]}
10/100 Base-T RJ45 Magnetic Jack With POE 1x1 Port Tab Up Yellow/Green Led

LINK-PP | LPJK1014AGNL

48 Reviews
|
9.3K Sold

$ 2.28 ~ $ 4.85

{"pid":470259,"minimum_ordered_quantity":1,"skulist":[{"pskuid":172277,"cid":752,"pid":470259,"sku":"172277","psvid1":262856,"psvid2":262857,"psvid3":0,"psvid4":0,"left_num":1239,"price":"4.850","strike_price":"0.000","innercode":"","addtime":"2023-06-27 12:18:04","uptime":"2023-06-28 02:18:04","status":0}],"shippingLists":[{"id":"FEDEX","name":"FedEx IP","logo":"res\/shipping\/FEDEX.jpg","price":"29.47","isfree":0,"total":"29.47","datemin":3,"datemax":6,"unit_price":"4.85","subtotal":4.85}]}

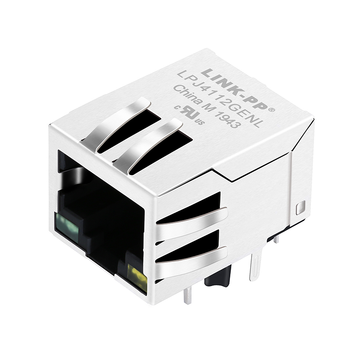

10/100 Base-T Tab Down Green/Yellow LED Single Port PoE Rectifier Bridge RJ45 Magjack

LINK-PP | LPJ4112GENL

71 Reviews
|
2.2K Sold

$ 2.28 ~ $ 4.85

{"pid":457265,"minimum_ordered_quantity":1,"skulist":[{"pskuid":142018,"cid":752,"pid":457265,"sku":"142018","psvid1":246410,"psvid2":246411,"psvid3":0,"psvid4":0,"left_num":115,"price":"4.850","strike_price":"0.000","innercode":"","addtime":"2021-08-02 04:37:28","uptime":"2022-05-24 00:55:40","status":0}],"shippingLists":[{"id":"FEDEX","name":"FedEx IP","logo":"res\/shipping\/FEDEX.jpg","price":"29.47","isfree":0,"total":"29.47","datemin":3,"datemax":6,"unit_price":"4.85","subtotal":4.85}]}
10/100 Base-T RJ45 PoE+ Jack With Rectifier Bridge Tab Down Without Led

LINK-PP | LPJP4155CNL

42 Reviews
|
38.5K Sold

$ 2.11 ~ $ 4.48

{"pid":470363,"minimum_ordered_quantity":1,"skulist":[{"pskuid":172394,"cid":752,"pid":470363,"sku":"172394","psvid1":263012,"psvid2":263013,"psvid3":0,"psvid4":0,"left_num":1000,"price":"4.479","strike_price":"0.000","innercode":"","addtime":"2023-07-06 11:35:58","uptime":"2023-07-07 01:35:58","status":0}],"shippingLists":[{"id":"FEDEX","name":"FedEx IP","logo":"res\/shipping\/FEDEX.jpg","price":"29.47","isfree":0,"total":"29.47","datemin":3,"datemax":6,"unit_price":"4.48","subtotal":4.48}]}

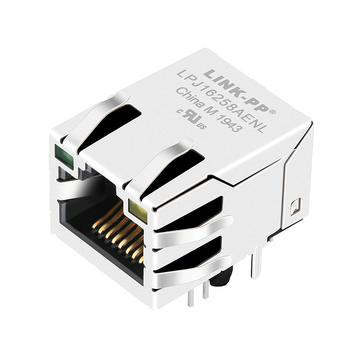

10/100 Base-T PoE RJ45 Magjack Tab Up Green/Yellow LED

LINK-PP | LPJ16258AENL

17 Reviews
|
19.3K Sold

$ 2.07 ~ $ 4.41

{"pid":474344,"minimum_ordered_quantity":1,"skulist":[{"pskuid":178693,"cid":752,"pid":474344,"sku":"178693","psvid1":267390,"psvid2":267391,"psvid3":0,"psvid4":0,"left_num":1727,"price":"4.410","strike_price":"0.000","innercode":"","addtime":"2024-03-18 09:22:46","uptime":"2024-03-18 23:22:46","status":0}],"shippingLists":[{"id":"FEDEX","name":"FedEx IP","logo":"res\/shipping\/FEDEX.jpg","price":"29.47","isfree":0,"total":"29.47","datemin":3,"datemax":6,"unit_price":"4.41","subtotal":4.41}]}

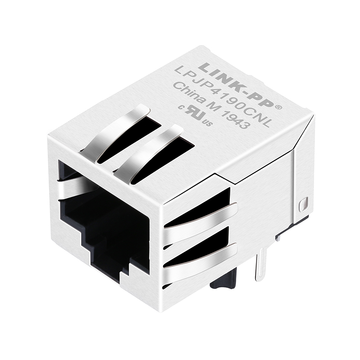

10/100 Base-T PoE+ RJ45 Magjack With Rectifier Bridge Tab Down Without LED
