LPJG27037AFNL 1000 base-t stacked rj45 connectors 2x2 port green green led

LPJG27037AFNL 1000 Base-T Stacked RJ45 Connectors 2x2 Port Green/Green Led

Product summary

Product
LPJG27037AFNL 1000 Base-T Stacked RJ45 Connectors 2x2 Port Green/Green Led
SKU
104543
P/N
LPJG27037AFNL
Price
$ 13.71
Stock
849 in Stock
Sold
2.2K
Unit price $ 13.71
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJG27037AFNLSKU: 104543

LINK-PP original3D ModelAll downloads

Compatible P/N:
LPJG27037AFNL
Volume pricing Online tiers · larger qty or custom price on request
$ 13.710
1–99 pcs
$ 11.383
100–599 pcs
$ 9.737
600–1,199 pcs
$ 8.640
1,200–5,999 pcs
$ 7.680
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
849 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 18
Total Price:
$ 13.71
Packaging Details
18 pcs
324 pcs
Tray
37×30×30 cm
0.034 kg
11 kg

LINK-PP LPJG27037AFNL 10/100/1000 Base-T Stacked RJ45 Connectors 2x2 Port for Webcams and Hard Disk Players (2x2 Port, Green/Green LED)

The LPJG27037AFNL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Card, Optical Terminal , Webcams and Hard Disk Players.

LINK-PP Part Number:
LPJG27037AFNL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
2x2 PortSpeed
10/100/1000 Base-T
Latch
BothCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Green Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
1.015/25.79Package Length (Inches/mm)

1.118/28.40

Package Width (Inches/mm)
1.230/31.24
Temperature
-40℃ TO +85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

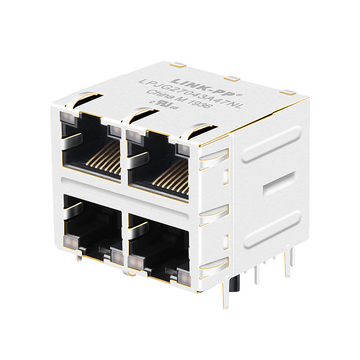

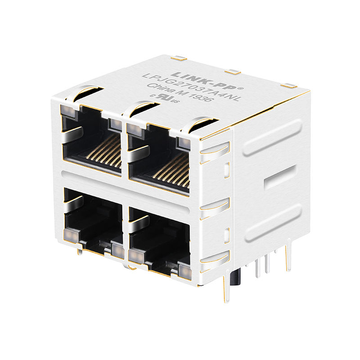

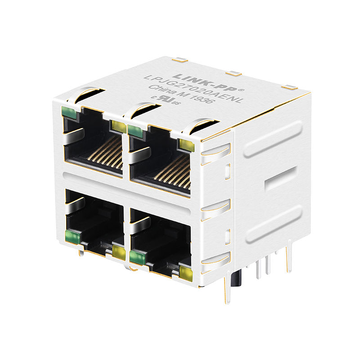

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

3D Files LPJG27037AFNL.3d_stp.zip

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Each port has its own pair, both green. One is link and the other is activity. That is sixteen lamp legs on one body, so the footprint is dense. We route them in two rows to keep the traces short. by LINK-PP Technical Support
  • A:
    Yes, both rows latch up. The upper row is reached from the top and the lower row from the front. A booted cable on the lower row needs 28.40 mm of depth. We left 32 mm behind the plate. by LINK-PP Technical Support
  • A:
    Four ports sit in one 31.24 mm wide block, two above two. That gives you four jacks per cutout instead of four cutouts. Our panel punch count dropped to one. The 25.79 mm height needs a 1U opening. by LINK-PP Technical Support
  • A:
    EXW, FOB, CFR, CIF.(defaults EXW for all quotation) by LINK-PP Technical Support

Customer Reviews

  • 4.9

    24 Reviews

  • 5 Stars
    92%
    4 Stars
    8%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (24)
No data
J***s
Portugal
Verified Purchase
5.0
2026-11-16
A handy four port 31.24 mm shell.
W***t
Italy
Verified Purchase
5.0
2026-06-09
The 1CT:1CT ratio matched our PHY design and the Bob Smith circuit meant a clean layout with no extra parts. =)
U***e
United Kingdom
Verified Purchase
5.0
2026-02-23
Green over green is handy when both rows share a panel.
A***y
Malaysia
Verified Purchase
4.0
2025-09-26
Two shells had a bent latch tab, yet every jack on the bench board took a plug and read a clean pair on a 1G loop.
R***r
Indonesia
Verified Purchase
5.0
2025-05-19
Our access switch needs four ports per board and the 2x2 shell gives us that in 31.24 mm. Latch Both suits the top and bottom rows, so a cable seats from either side. Green over green keeps link and activity reading the same at a glance. The Bob Smith circuit and 1CT:1CT matched the drawing on the first pass.
