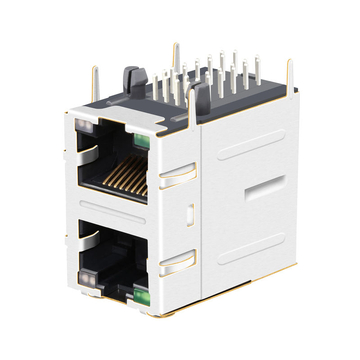

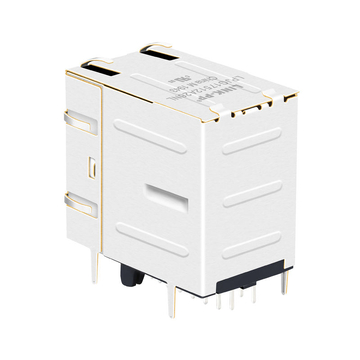

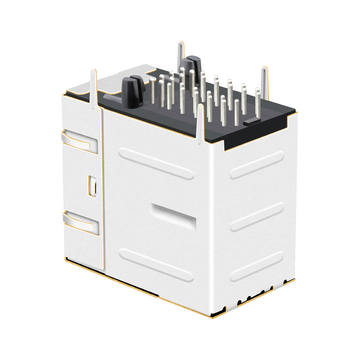

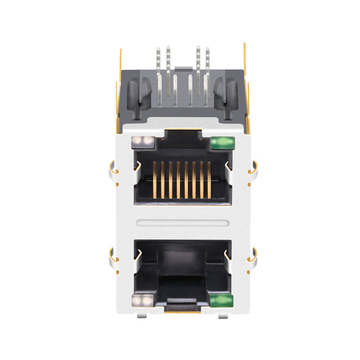

LINK-PP Part Number: | LPJG17512A26NL | UDE Part Number | RM3-1Q6A9V1F |
Part Status | Active | Connector Type | Jack |
Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
Number of Ports | 2x1 Port | Speed | 10/100/1000 Base-T |
Latch | Both | Cores per Port | 12 |
Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
Shield EMI Tabs | With | LED Option | Green/Orange&Green Led |
PCB | FR4 | PCB Retaining Post | T POST |
Package Height (Inches/mm) | 0.996/25.29 | Package Length (Inches/mm) | 1.122/28.50 |
Package Width (Inches/mm) | 0.677/17.21 | Temperature | 0℃ TO +70℃ |
Bst Circuit | Yes | AutomDX | YES |
Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C |
Q: I'm using Pulse JD2-0001NL , I want to get a low-cost solutions . do you have any suggestions? By M***n on 2021-06-11
A: Hi , thanks for your request , LINK-PP is OEM for Pulse for many projects. Our P/N LPJD0012BENL is 100% cross it. https://www.l-p.com/products/435207.htmBy adminon 2021-06-11
