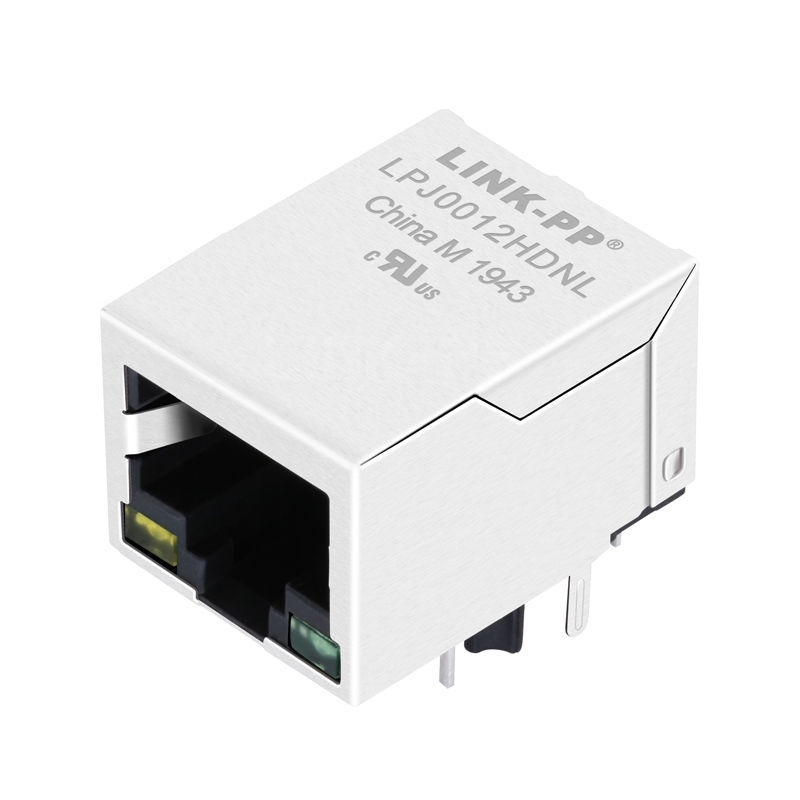

LPJ0012HDNL 10/100 Base-T 8 Pin Shielded RJ45 Female Connector

LPJ0012HDNL 10/100 Base-T 8 Pin Shielded RJ45 Female Connector

#103909
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100
90 Reviews
0 Questions
Request Stock
27K Sold
$  2.072
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
$ 2.072
100
$ 1.7
600
$ 1.492
1200
$ 1.14
6000
$ 0.974
P/N: LPJ0012HDNL
Compatible:
LINK-PP
EDAC
WE
Competitor P/N:
LPJ0012HDNL
Shipping:
$ 29.47
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
1999 in Stock .
Quantity:
Total Price:
$ 2.072
Packaging Details:
0.007kg
Tray
50pcs
1200pcs
32*30*31cm
8.6kg

Single Port RJ45 Female Connector with 10/100 Base-T Integrated Magnetics, Yellow/Green LED, Tab Down, RoHS

LINK-PP Part Number:
LPJ0012HDNL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
Down Cores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Yellow/Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.524/13.30Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm)
0.627/15.93Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

Download
