Integrated RJ45 Connector
Vertical RJ45 Connector
10/100 Base-T RJ45 Connector
97264

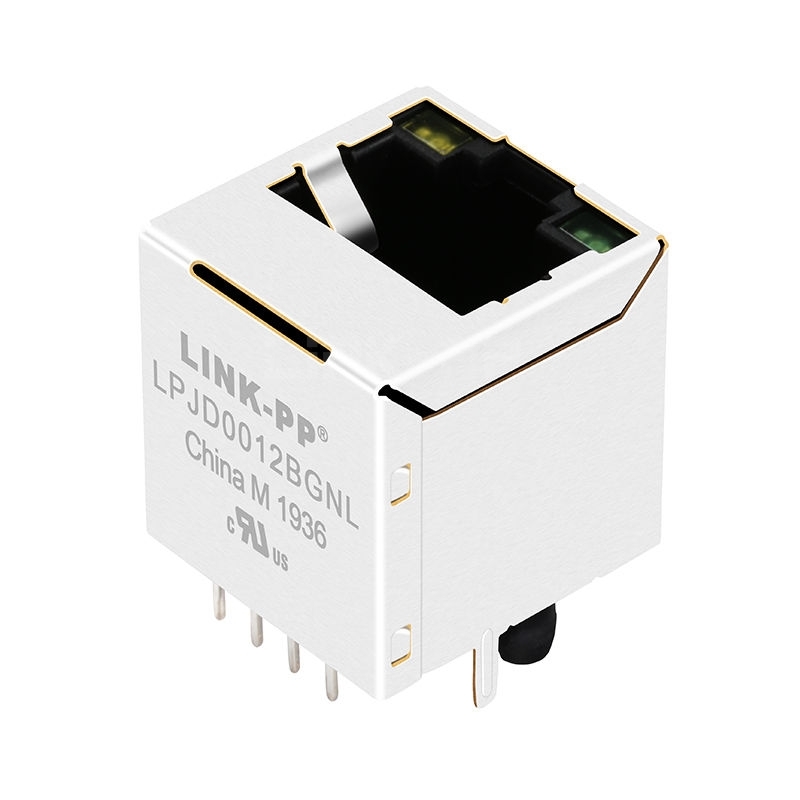

X Multiple XRJV-11-01-8-8-1-MD12 Compatible LINK-PP LPJD0012BGNL 10/100 Base-T Yellow/Green LED Vertical RJ45 Jack With Magnetics
  • X Multiple XRJV-11-01-8-8-1-MD12 Compatible LINK-PP LPJD0012BGNL 10/100 Base-T Yellow/Green LED Vertical RJ45 Jack With Magnetics thumb image 1
  • X Multiple XRJV-11-01-8-8-1-MD12 Compatible LINK-PP LPJD0012BGNL 10/100 Base-T Yellow/Green LED Vertical RJ45 Jack With Magnetics thumb image 2
  • X Multiple XRJV-11-01-8-8-1-MD12 Compatible LINK-PP LPJD0012BGNL 10/100 Base-T Yellow/Green LED Vertical RJ45 Jack With Magnetics thumb image 3
  • X Multiple XRJV-11-01-8-8-1-MD12 Compatible LINK-PP LPJD0012BGNL 10/100 Base-T Yellow/Green LED Vertical RJ45 Jack With Magnetics thumb image 4
  • X Multiple XRJV-11-01-8-8-1-MD12 Compatible LINK-PP LPJD0012BGNL 10/100 Base-T Yellow/Green LED Vertical RJ45 Jack With Magnetics thumb image 5

X Multiple XRJV-11-01-8-8-1-MD12 Compatible LINK-PP LPJD0012BGNL 10/100 Base-T Yellow/Green LED Vertical RJ45 Jack With Magnetics

#97264
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

X Multiple XRJV-11-01-8-8-1-MD12 Compatible LINK-PP LPJD0012BGNL 10/100 Base-T Yellow/Green LED Vertical RJ45 Jack With Magnetics

  • C$  4.269

    6600 in Stock

 28 Reviews
1 Questions
Request Stock
27.7K Sold
C$  4.269
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
C$ 4.269
100
C$ 3.502
600
C$ 3.075
1200
C$ 2.349
6000
C$ 2.008
Manufacture: LINK-PP
P/N: LPJD0012BGNL
Compatible:
LINK-PP
X Multiple
Competitor P/N:
XMV-9813-8812-S0L2T1-B
XRJV-11-01-8-8-1-MD12
Shipping:
C$ 40.374
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
6600 in Stock .
Quantity:
Total Price:
C$ 4.269
Packaging Details:
0.008kg
Tray
50pcs
1200pcs
32*30*31cm
9kg
Add to wish

X Multiple XRJV-11-01-8-8-1-MD12 Compatible LINK-PP LPJD0012BGNL 10/100 Base-T Vertical RJ45 Jack With Magnetics For Embedded Main Board (Top Entry Yellow/Green LED)

The LPJD0012BGNL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Industrial PC, Smart Meters,Patient Care.


LINK-PP Part Number:
 LPJD0012BGNL X Multiple Part Number XRJV-11-01-8-8-1-MD12
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UpCores per Port
4
Orientation
180° Angle (Right)PCB Mount Angle

THT Solder

Shield EMI Tabs
WithoutLED Option

Yellow/Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.665/16.90Package Length (Inches/mm)

0.657/16.70

Package Width (Inches/mm)
0.630/16.00
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. RJ45 Female Connector

Download

LPJD0012BGNL Drawing

3D Model
